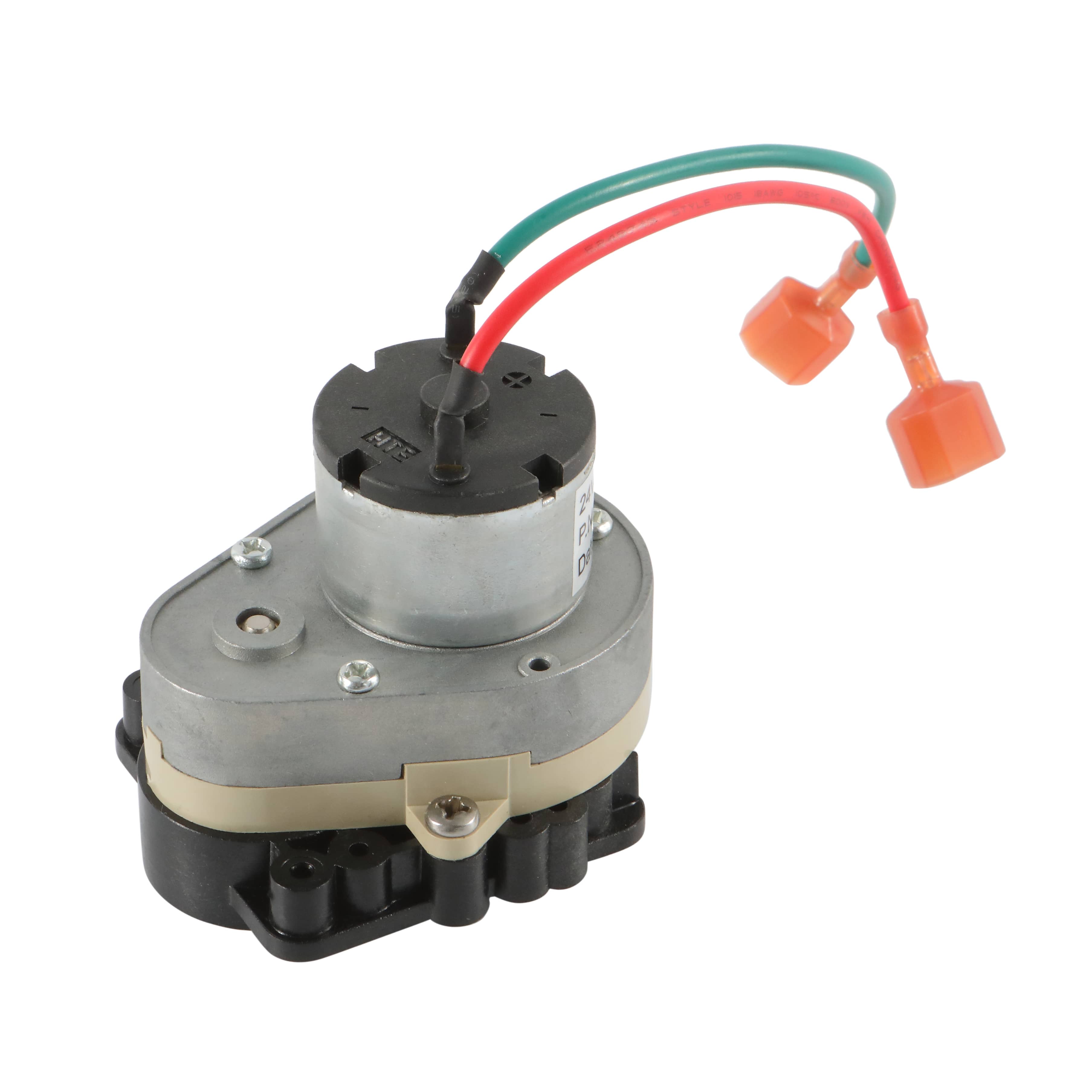

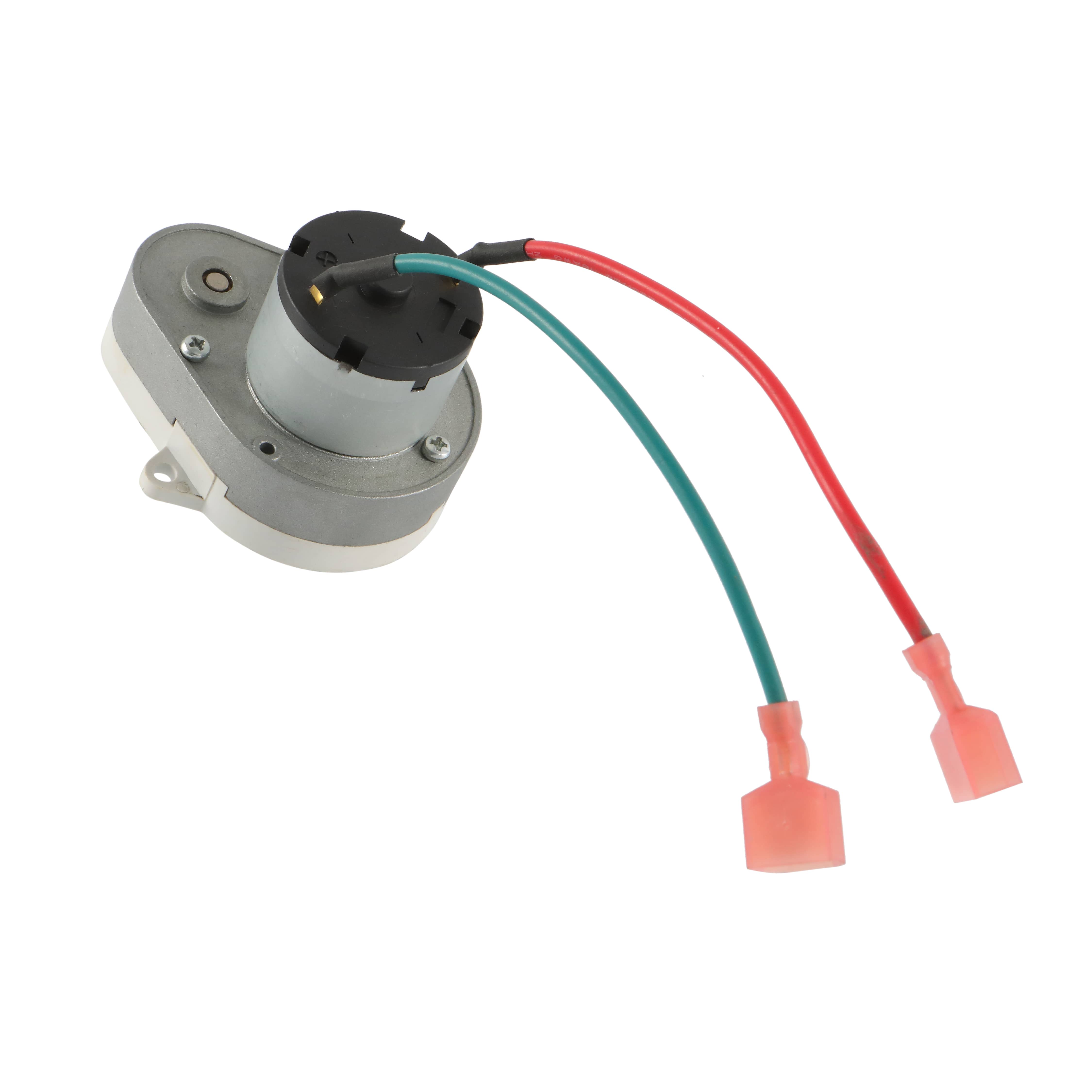

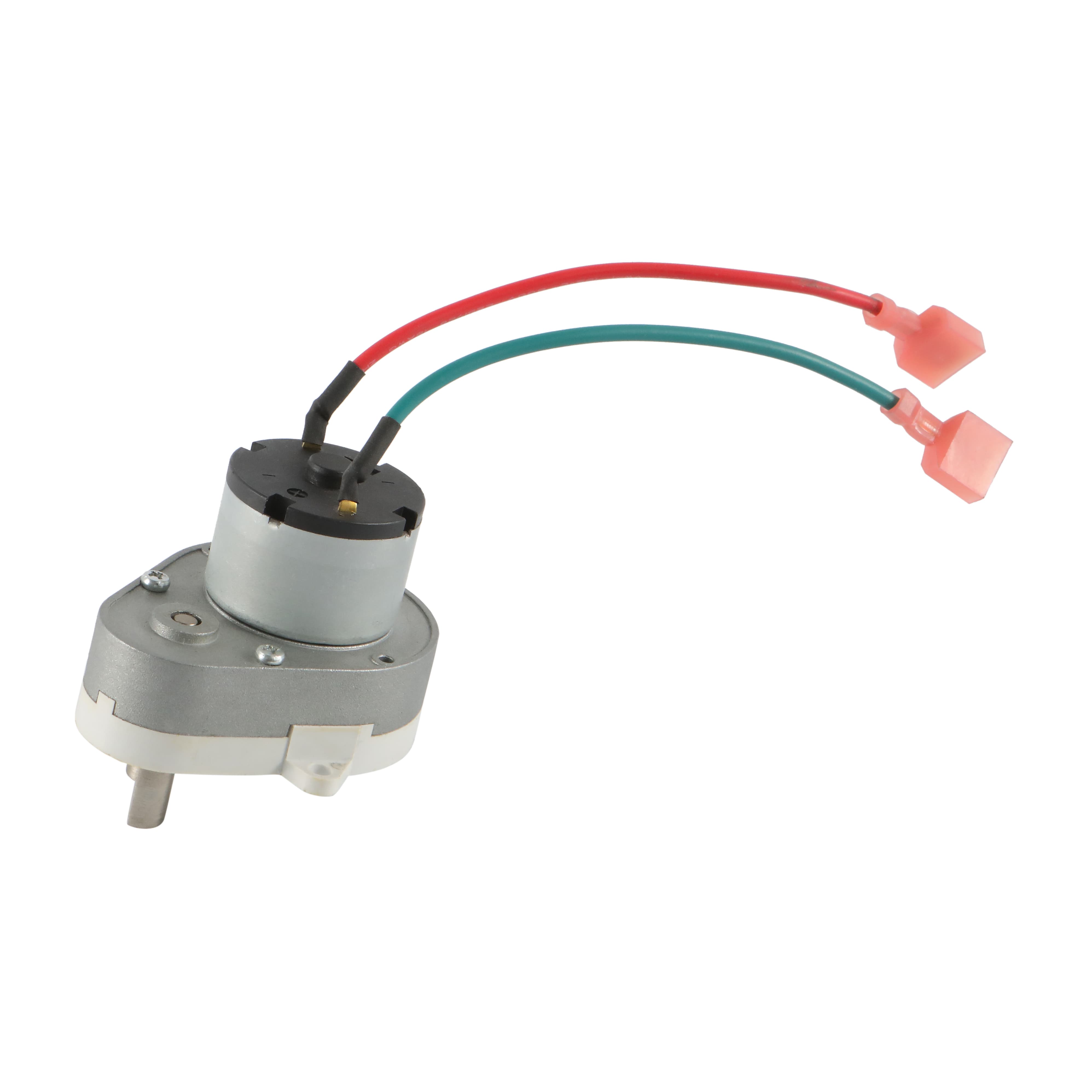

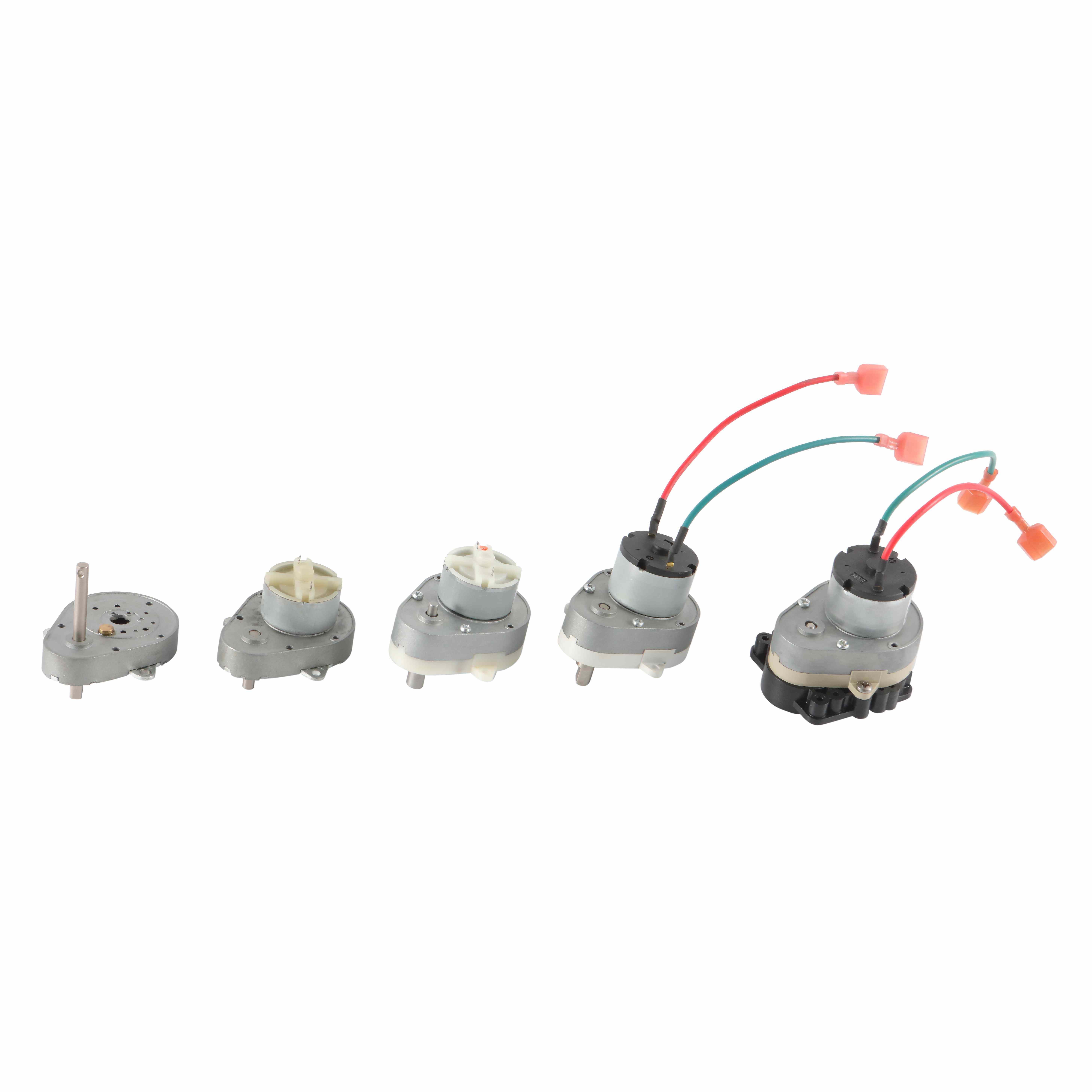

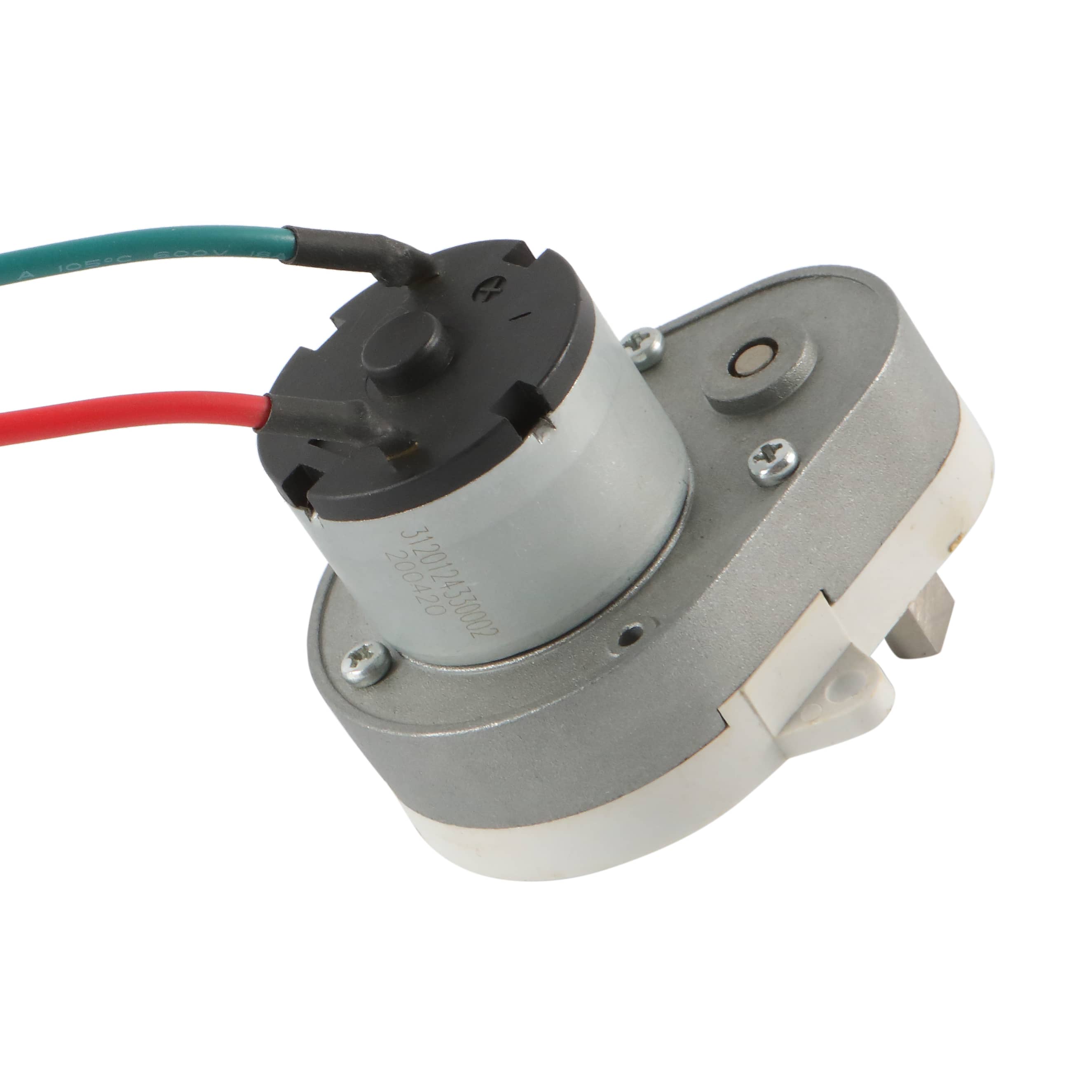

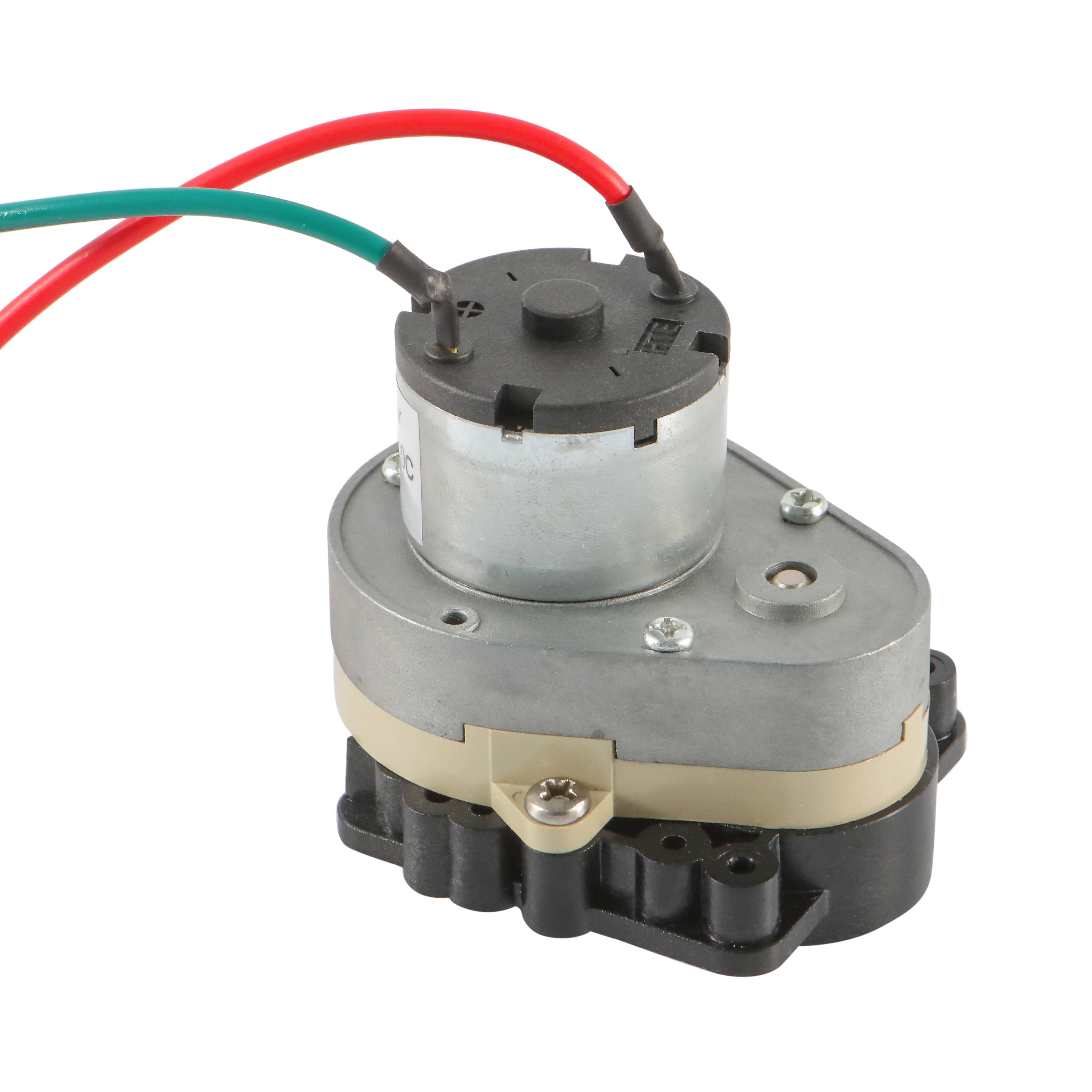

48mm DC Gear Motor with Ovoid gearbox

• Manufacturer Part Number: D482G3
• Gearbox Type: Ovoid Gearbox
• Gear Ratio:1:10~1:2700
• DC Gearhead Motor Voltage: 12V, 24V
• DC Gear Engine Size: 48mm
• Application: Vending Machine Motor, Coffee Machine Motor
Availability:
Quantity:
Inquire Add to Basket

  • D482G3(48mm)

  • I.CH


This DC Gear Motor integrated a 48mm ovoid gearbox of 1:10 to 1:2700 gear ratio. It is a good solution to application that with limited space but low speed and high torque.


Specification

MODEL
VOLTAGE
V		NO LOADAT MAXIMUM EFFICIENCYSTALL
SPEED
rpm		CURRENT
mA		SPEED
rpm		TORQUE
Kg.cm		CURRENT
mA		OUTPUT
mW		TORQUE
Kg.cm
D482-3002700A122.38023015060030-60(Adjustable)
D482-3002700B242.34023090600


Gear Ratio
Number of stages57
Gear ratio i300640800120018002700
Length of gearbox L (mm)19.5





                   Mechanical Dimensions
                    DC GearMotor with Ovoid gearbox



Encoder
111
Clutch

Ratio of  Gearbox

Gear Ratio
Number of stages 5 7
Gear ratio i 300 640 800 1200 1800 2700
Length of gearbox L (mm) 19.5


Motor
Brush Motor, Brushless Motor, Stepper Motor

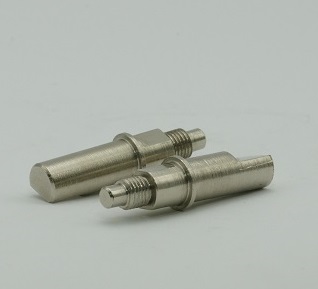

Shaft
D-cut Shaft, H-cut Sahft, Rround Sahft

Full Datasheet
D482G3.pdf
