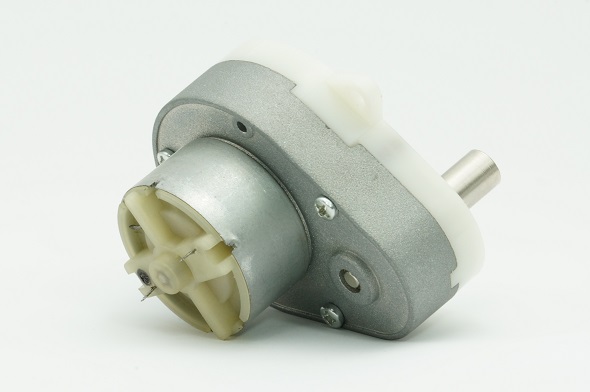

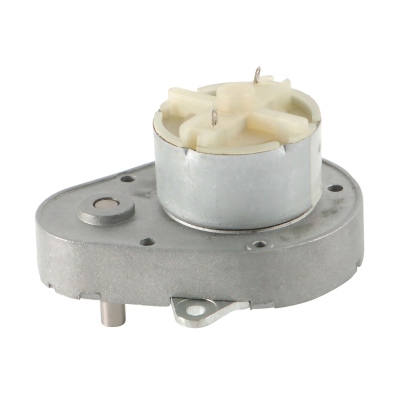

48mm DC Gear Motor

• Manufacturer Part Number: D482G1
• Gearbox Type: Ovoid Gearbox
• Gear Ratio:1:10~1:2700
• DC Gearhead Motor Voltage: 6V
• DC Gear Reducer Size: 48mm
• Application: Safe Box Motor, Instrument Motor
Availability:
Quantity:
  • D482G1(48mm)

  • I.CH

32mm DC Motor integrated a 48mm ovoid gearbox of 1:10 to 1:2700 gear ratio. It is a good solution to application that with limited space but low speed and high torque.

Specification

MODEL

VOLTAGE
V
NO LOADAT MAXIMUM EFFICIENCYSTALL
SPEED
rpm
CURRENT
mA
SPEED
rpm
TORQUE
Kg.cm
CURRENT
mA
OUTPUT
mW
TORQUE
Kg.cm
CURRENT
mA
D482-0604506.06604.56.012028030.0350
D482-0402256.0166012.54.018052012.0600
D482-0201056.03540262.01805307.0600




Gear Ratio
Number of stages234567

Gear ratio i
1030903029002050

4512034012002700

6022545415003375
Length of gearbox L (mm)12.5

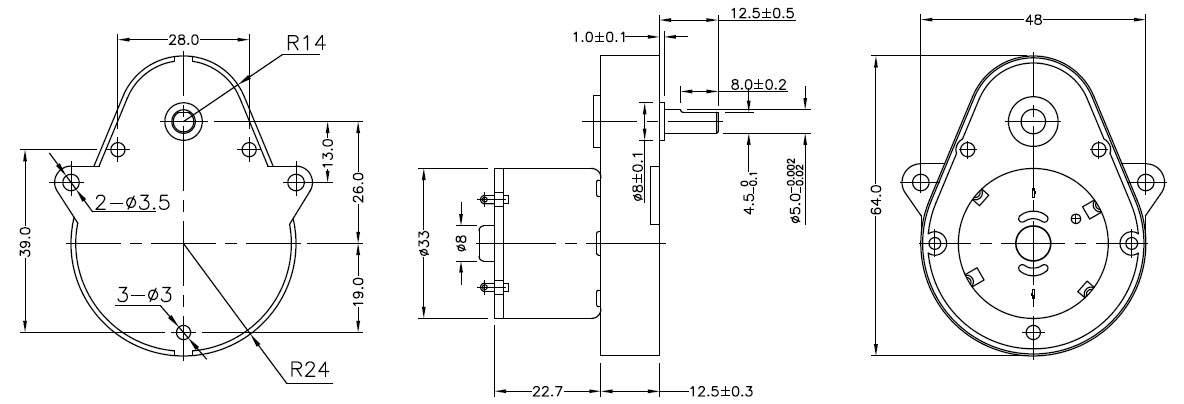

Mechanical Dimensions
D482G1DWG

Encoder
111
Clutch

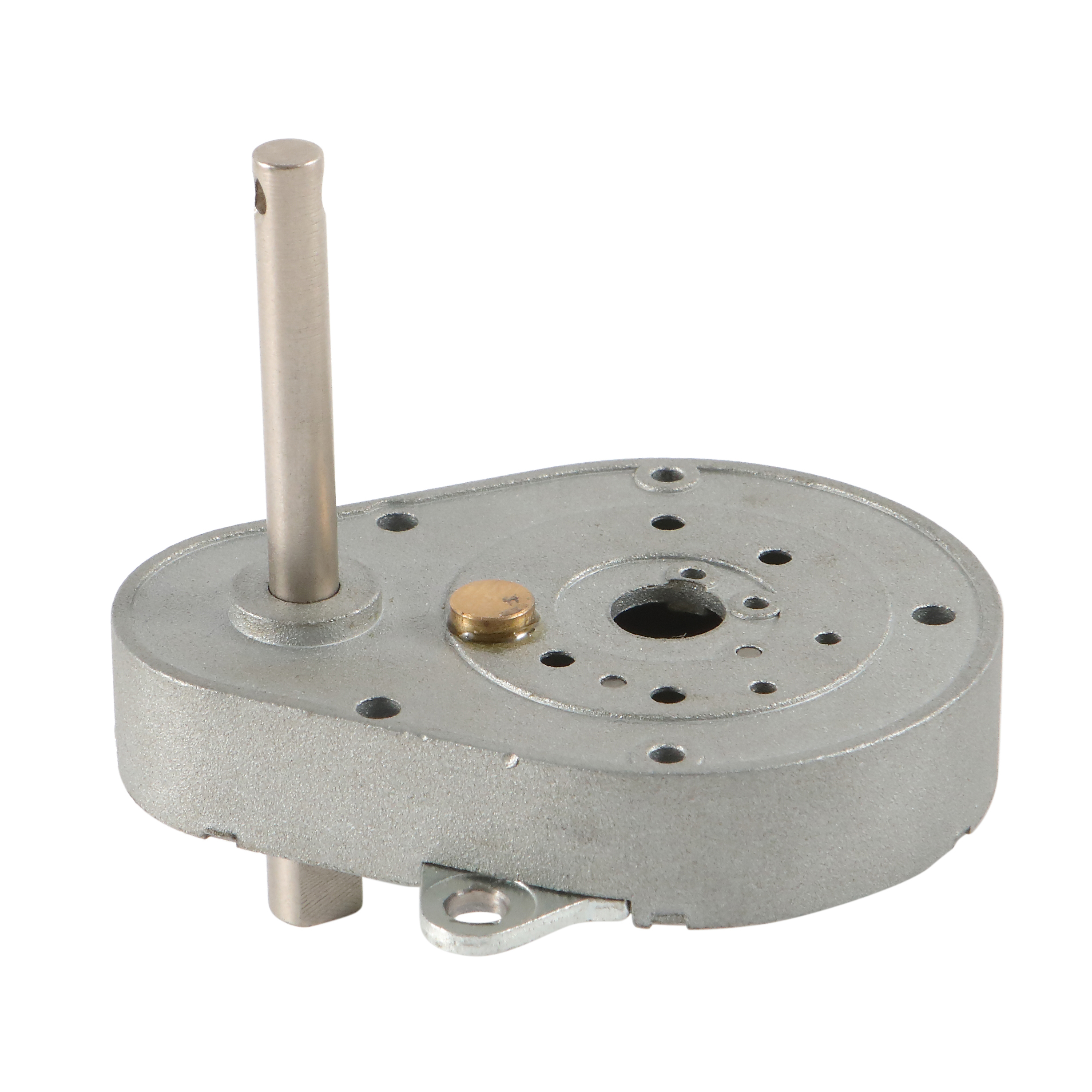

Ratio of  Gearbox
Gear Ratio
Number of stages 2 3 4 5 6 7

Gear ratio i
10 30 90 302 900 2050

45 120 340 1200 2700

60 225 454 1500 3375
Length of gearbox L (mm) 12.5

Motor
Brush Motor, Brushless Motor, Stepper Motor

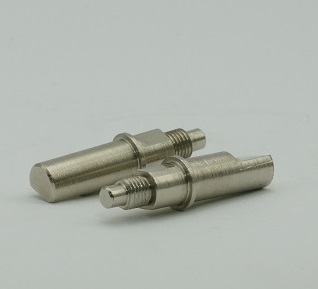

Shaft
D-cut Shaft, H-cut Sahft, Rround Sahft
Full Datasheet
D482G1.pdf

Factory Ability

I.CH Motion has concentrating on designing the latest technology of motors over than ten years and meet many customers around the world. We source them quality products, provide technical advice, and supply free samples to our long-terms customer. Now the products like AC Synchronous Motor, Geared Motor, Reversible Synchronous Motor widely used in household appliance, Auto Control Machine, etc. Our main products are hybrid stepper motor, stepping motor driver, AC synchronous motor, integrated step servo motors, integrated step AC servo motors, DC Gear Motor, Brushless DC Motors, DC Brushed Motor, Planetary Gearbox, Gearbox Parts, Design Service, Project Solution and so on.

1  2  3

      Concentricity detector                                           Ultrasonic Cleaner                                           Gear Testing Center
4  5  6

   Gear Inspection Center                                                   Gear Hobber                                                             Gear Hobbing



Advantages

1. Professional technical support;

2. Flexible price;
3. Quick lead time.



Package

-Water-proof package;

-Air and vessel shipping;

-Due from 15 - 40 calender days .

7  8  9



FAQ

Q: Is 48mm Geared Motor in shape of pear?

A: Yes, it is pear shape or ovoid shape gearbox.



Q: Why this gearbox looks so special?

A: Because inside the gearbox, there are many reduction systems to reach big ratio speed.



Q: I want to put the DC Gear Motor on vending machine, do you have a clutch inside?

A: Yes, we can design a clutch system inside to protect gearbox.
