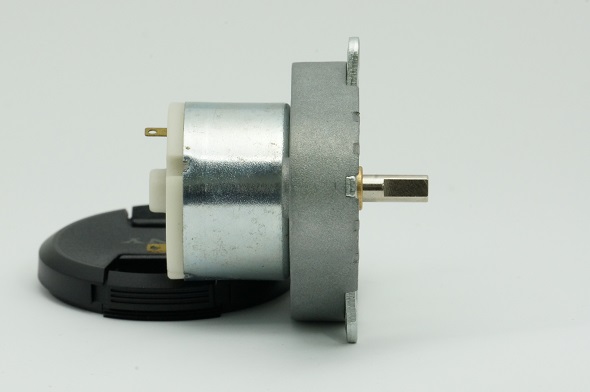

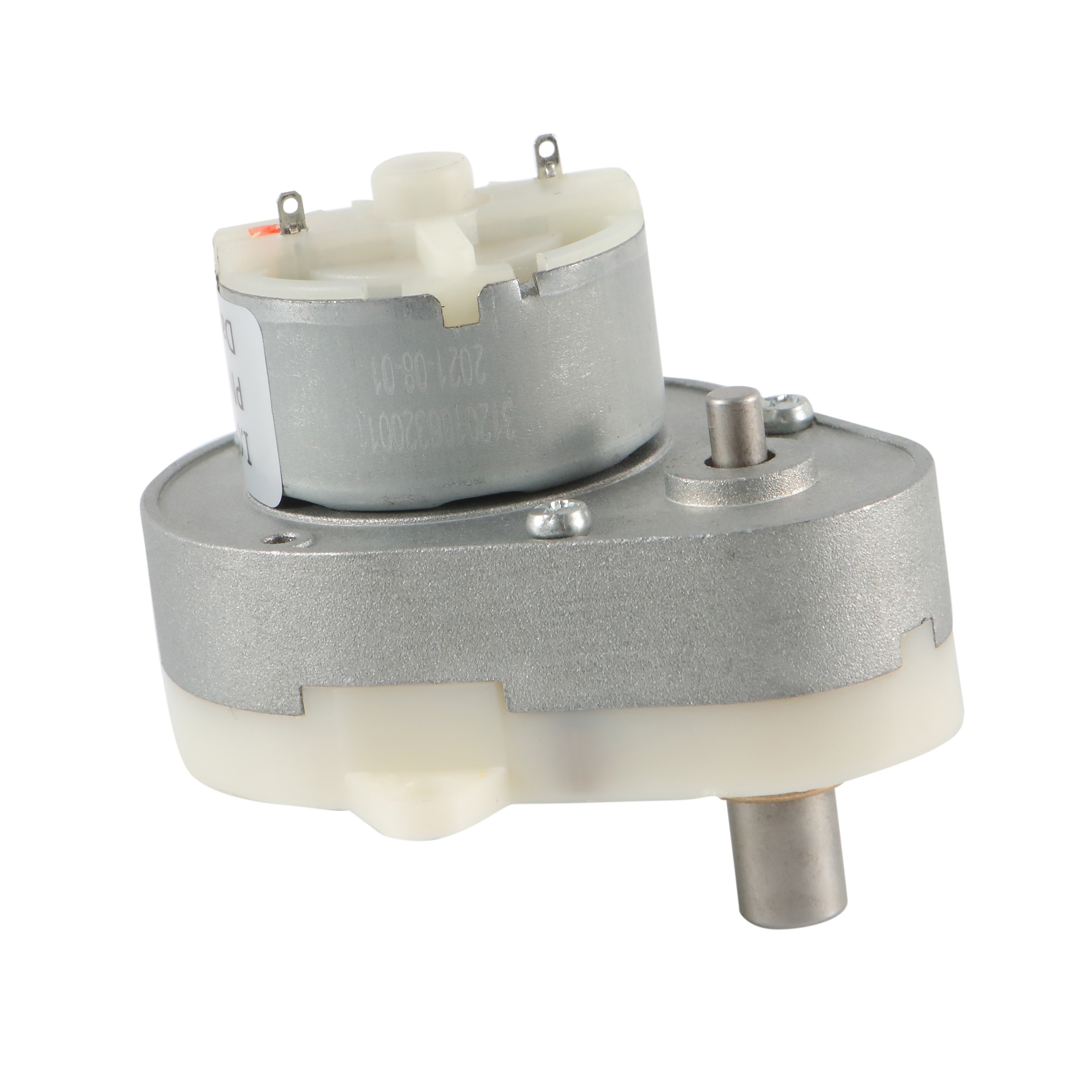

48mm DC Geared Motor

• Manufacturer Part Number: D482G2
• Gearbox Type: Pear Gearbox
• Gear Ratio:1:10~1:2700
• DC Gearhead Motor Voltage: 6V,12V, 24V
• DC Gear Reducer Size: 48mm
• Application: Automobile Motor, Vending Machine Motor
Availability:
Quantity:
  • D482G2(48mm)

  • I.CH


32mm DC Geared Motor integrated a 48mm pear gearbox of 1:10 to 1:2700 gear ratio. It is a good solution to application that with limited space but low speed and high torque.

Specification

MODEL

VOLTAGE
V
NO LOADAT MAXIMUM EFFICIENCYSTALL
SPEED
rpm
CURRENT
mA
SPEED
rpm
TORQUE
Kg.cm
CURRENT
mA
OUTPUT
mW
TORQUE
Kg.cm
CURRENT
mA
D482-06009024.06060456.0400280015.01200
D482-15045024.013601015.0400150025.01200
D482-07022512.047120387.0600270045.02500
D482-0200906.03540262.01805307.0600


Gear Ratio
Number of stages234567

Gear ratio i
1030903029002050

4512034012002700

6022545415003375
Length of gearbox L (mm)12.5

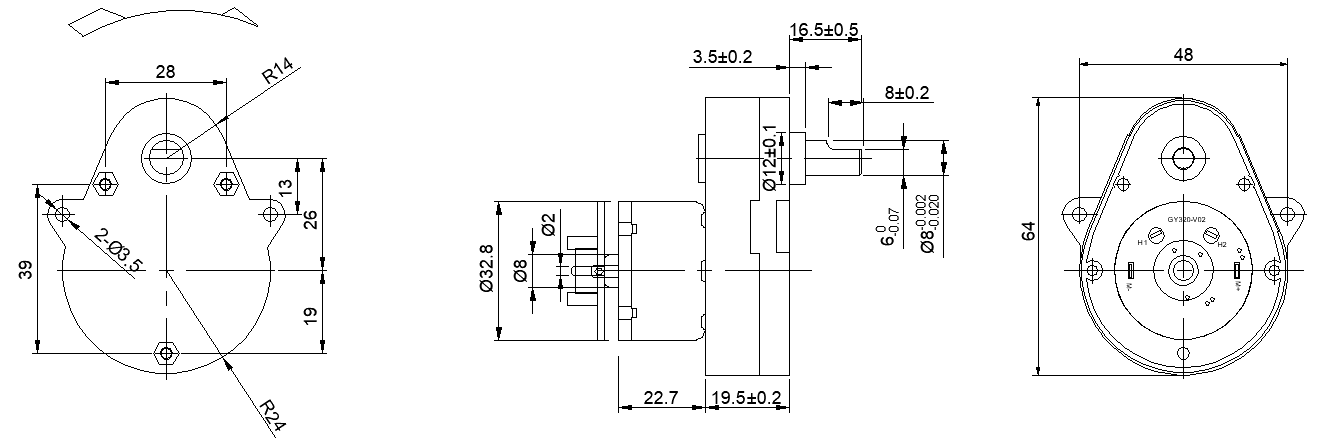

Mechanical Dimensions
D482G2 DWG


Encoder
111
Clutch

Ratio of  Gearbox
Gear Ratio
Number of stages 2 3 4 5 6 7

Gear ratio i
10 30 90 302 900 2050

45 120 340 1200 2700

60 225 454 1500 3375
Length of gearbox L (mm) 12.5

Full Datasheet
D482G2-NEW.pdf
