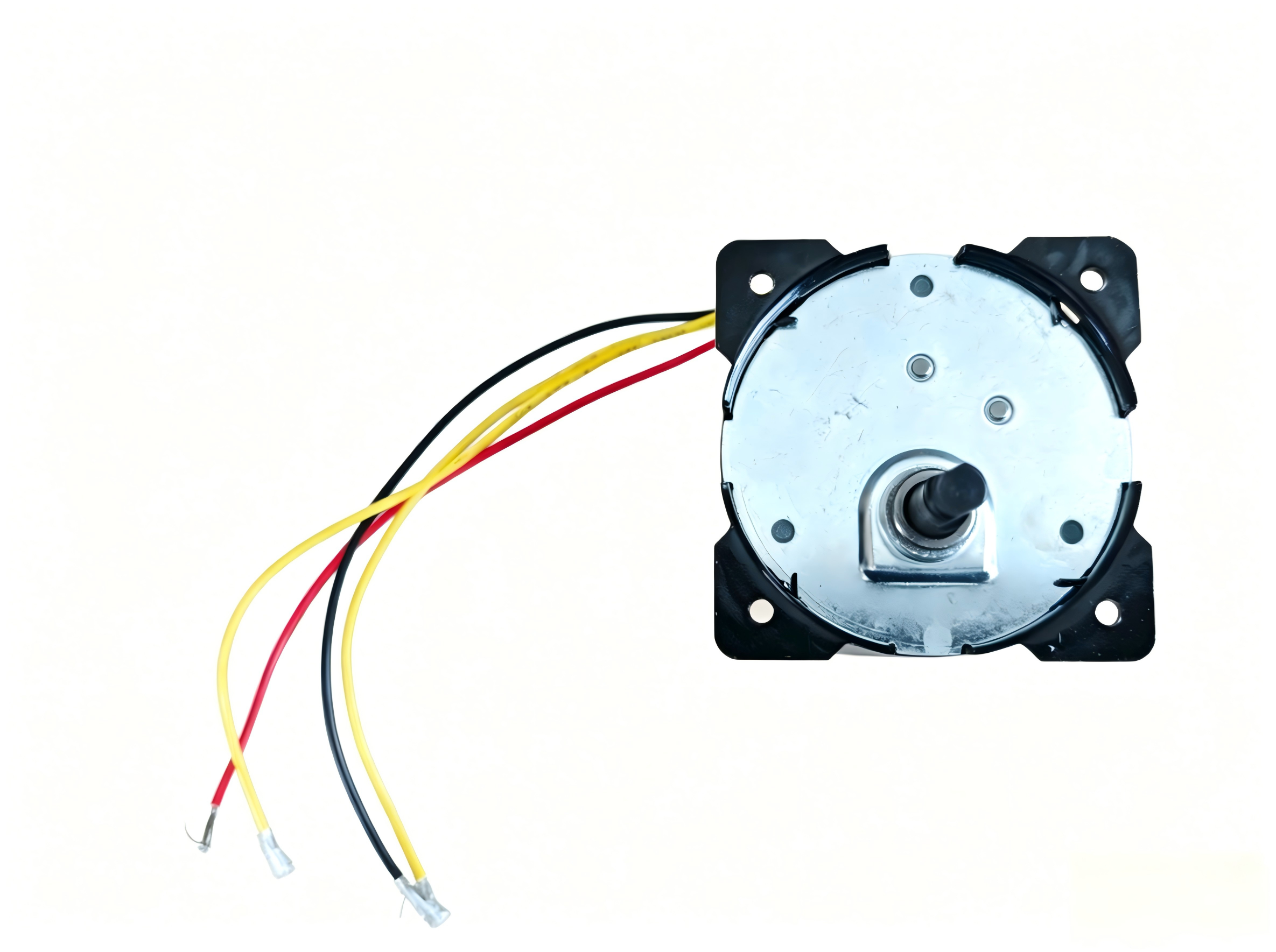

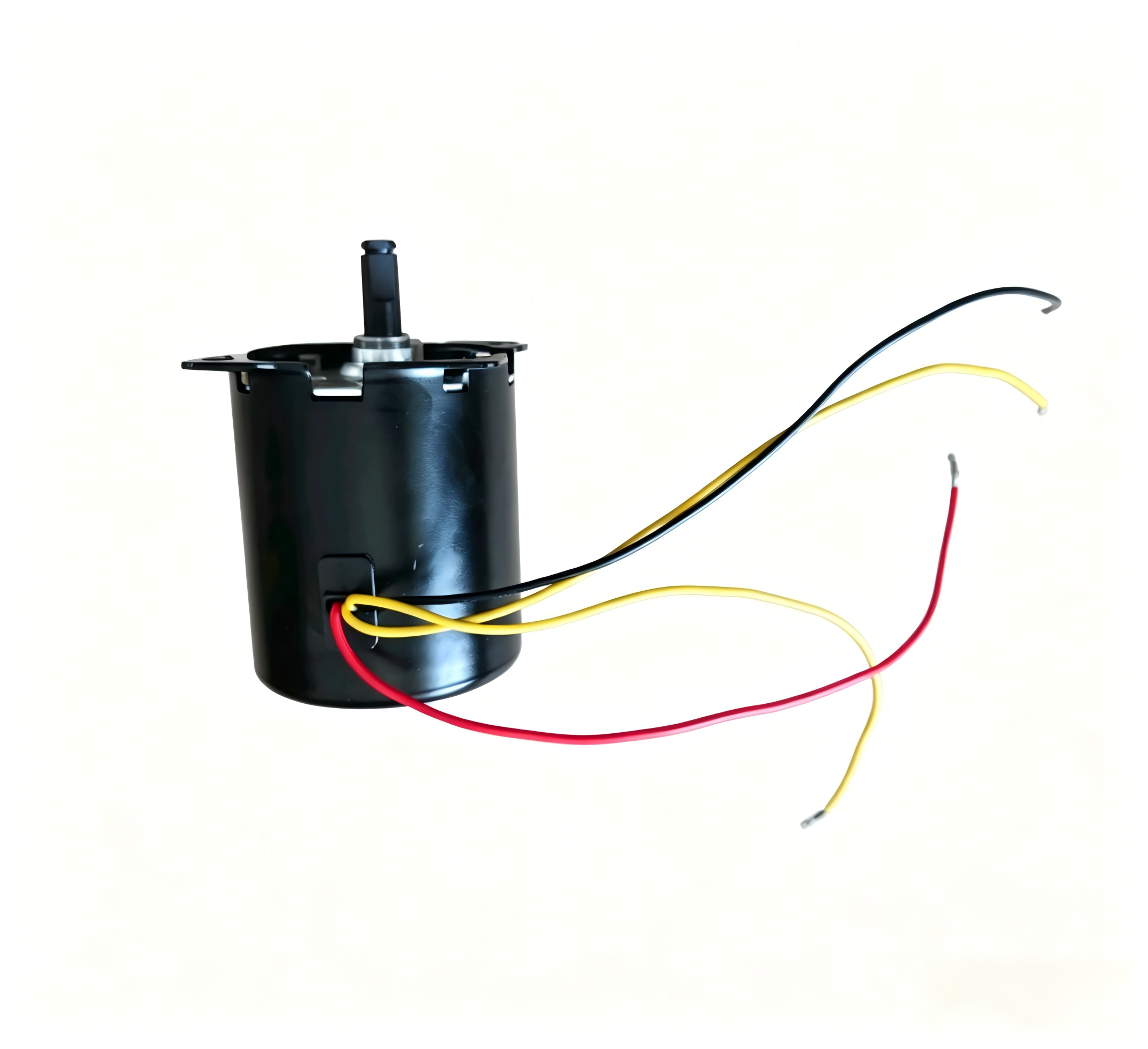

64mm AC Reversible Synchronous Motor

• Manufacturer Part Number: S643
• Motor Type: AC Synchronous Motor
• Speed : 15~152rpm
• Frequency: 50Hz or 60 Hz
• Power: Lower than 20W(24~220VAC)
• Torque: Max 60kg.cm
• AC Gear Motor Rotation:CW,CCW,Bi-directional
• Application: Auto Control Machine Motor
Quantity:
  • S643(64mm)- 50/60Hz

  • I.CH

Specification
Model Output speed
(rpm)
Output Torque (kg.cm / lb.in) Voltage
(V.AC)
Current
(A)
Frequency
(Hz)
Input Power
(W)
Noise
(dB)
Rotation
S1 continuous S2
15 minutes
S2
5 minutes
S643-30-15 15 30 / 26.1 40 / 34.8 60 / 52.2 24
*********
110
*********
220
<0.9
**********
<0.2
*********
<0.1
50/60Hz <20 <45 CW / CCW / Bi-directional
S643-22-20 20 22 / 19.1 30 / 26.1 45 / 39.2
S643-18-25 25 18 / 15.7 24 / 20.9 36 / 31.
S643-15-30 30 15 / 13 20 / 17.4 30 / 26.1
S643-12-40 40 11.5 / 10 15 / 13 22.5 / 19.8
S643-09-50 50 9 / 7.8 12 / 10.4 18 / 15.7
S643-08-60 60 7.5 / 6.5 10 / 8.7 15 / 13
S643-07-70 70 6.4 / 5.6 8.6 / 7.5 12.8 / 11.1
S643-06-80 80 5.6 / 4.9 7.5 / 6.5 11 / 9.6
S643-05-99 99 4.5 / 3.9 6 / 5.2 9 / 7.8
S643-03-152 152 3 / 2.6 4 / 3.5 6 / 5.2
Note:  Above datas are from motors under 50Hz. If under 60Hz, Speed*1.2 , Torque/1.2
       Other speed and torque needed, please contact our sale department

Safety
Insulation resistance DC 500V 100M ohms
Insulation strength AC1500V, 50Hz/min(220V motor)
Insulation class E(105) / B(130)
Environment Temp.-10~+40 / Humidity: <85
Certification CE ROHS CCC

Mechanical Dimensions
S643DWG

Custom Shaft
Round Shaft, D-Cut Sahft, H-Cut Shaft, Custom Length

Connector
Molex, Harwin, Tyco/AMP, JST etc.

connector



Leadwires and Cables
Special lengths, Protective hose

wires

Full Datasheet
S643.pdf

Factory Ability
I.CHMOTION has been specializing in micro motors, gear motors and motor parts since 2006. now the products like AC Synchronous Motor, Geared Motor, Reversible Synchronous Motor , AC Reduced Motor widely used in household appliance, Auto Control Machine, etc.

Advantages
1. Low Prices Direct From Factory Suppliers;
2. Quickly response in time;
3. OEM&OED Service, after-sales service 24*7, technical support;


Package
Wrapping based on clients requests;
Ship by Sea, air or train;
Lead period: 15 - 45 days.
未标题-1 未标题-2 未标题-3


FAQ
Q: What speed is this 64mm AC Reversible Synchronous Motor?
A: 24V, 110V, 220V or we can customized voltage.

Q: What torque can the AC synchronous motor reach?
A: This product can reach to 100kg.cm, the torque affected by speed, the lower the speed, the bigger the torque.

Q:What frequency can you supply?
A: 50 or 60 Hz.

Q: Can the AC Geared Motor rotate CW and CCW?
A: Yes, CW, CCW or both rotation all up to your choice.
