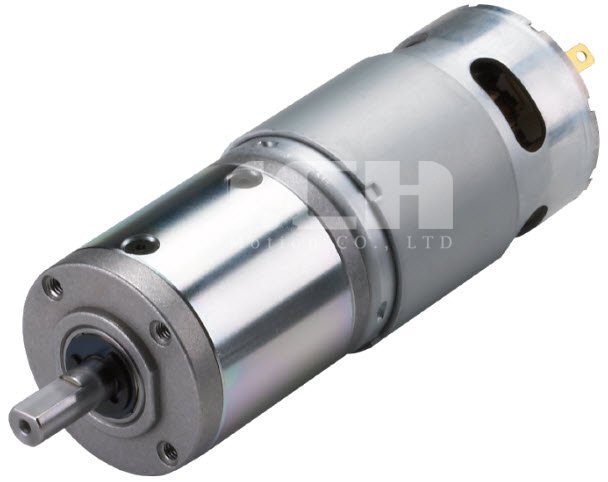

D423-01&02
| | Reduction ratio | 1/4 | 1/14 | 1/17 | 1/24 | 1/49 | 1/61 | 1/84 | 1/104 | 1/144 | 1/212 | 1/294 | 1/504 | 1/624 | 1/720 | 1/864 | 1/1062 | 1/1470 | 1/2500 | 1/3000 | 1/3600 |
| 12V | Rated torque(Kg.cm) | 2.2 | 6.5 | 8 | 8 | 18 | 18 | 18 | 20 | 20 | 25 | 25 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| Rated speed(rpm) | 1400 | 405 | 325 | 248 | 120 | 98 | 76 | 63 | 45 | 31 | 22 | 13.5 | 10.9 | 9.5 | 8.0 | 6.5 | 4.6 | 2.7 | 2.3 | 1.9 | |
| 24V | Rated torque(Kg.cm) | 1.8 | 5.4 | 6.6 | 8 | 16 | 18 | 18 | 20 | 20 | 25 | 25 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| Rated speed(rpm) | 1445 | 420 | 340 | 246 | 122 | 102 | 77.5 | 63 | 47 | 31 | 21.8 | 13.5 | 10.9 | 9.5 | 8.0 | 6.5 | 4.6 | 2.7 | 2.3 | 1.9 | |
| | Rotation direction | CCW | |||||||||||||||||||
| | Length（L-mm） | 32.5 | 39.2 | 45.9 | 52.6 | 59.6 | |||||||||||||||
| | Reduction ratio | 1/4 | 1/14 | 1/17 | 1/24 | 1/49 | 1/61 | 1/84 | 1/104 | 1/144 | 1/212 | 1/294 | 1/504 | 1/624 | 1/720 | 1/864 | 1/1062 | 1/1470 | 1/2500 | 1/3000 | 1/3600 |
| 12V | Rated torque(Kg.cm) | 2.2 | 6.5 | 8 | 8 | 18 | 18 | 18 | 20 | 20 | 25 | 25 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| Rated speed(rpm) | 1400 | 405 | 325 | 248 | 120 | 98 | 76 | 63 | 45 | 31 | 22 | 13.5 | 10.9 | 9.5 | 8.0 | 6.5 | 4.6 | 2.7 | 2.3 | 1.9 | |
| 24V | Rated torque(Kg.cm) | 1.8 | 5.4 | 6.6 | 8 | 16 | 18 | 18 | 20 | 20 | 25 | 25 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 |
| Rated speed(rpm) | 1445 | 420 | 340 | 246 | 122 | 102 | 77.5 | 63 | 47 | 31 | 21.8 | 13.5 | 10.9 | 9.5 | 8.0 | 6.5 | 4.6 | 2.7 | 2.3 | 1.9 | |
| | Rotation direction | CCW | |||||||||||||||||||
| | Length（L-mm） | 32.5 | 39.2 | 45.9 | 52.6 | 59.6 | |||||||||||||||
