D383P-01&02

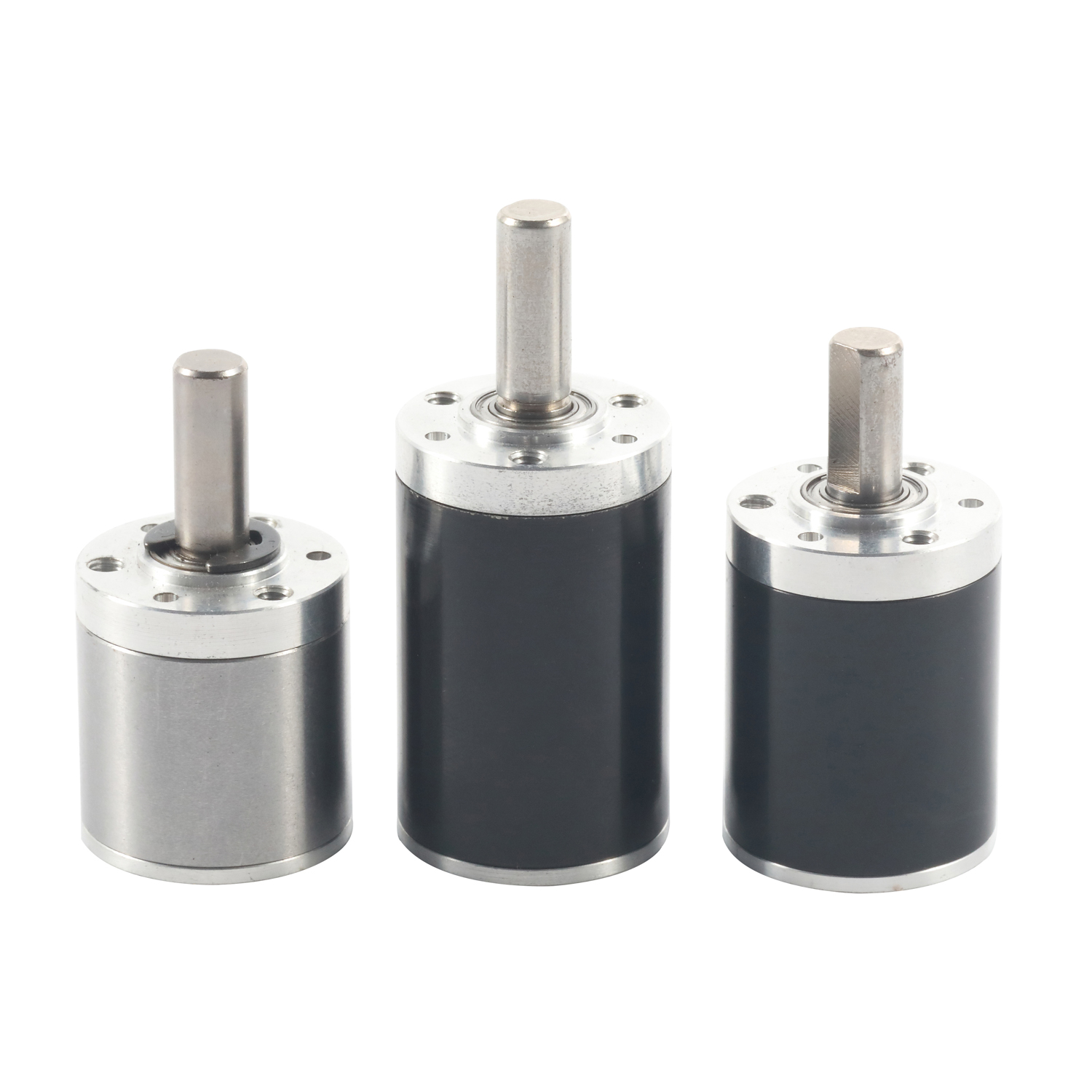

I.CH D383P-01&02 planetary gearmotor supports 12V/24V with 12 gear ratios from 1/5 to 1/721. It outputs stable rated torque up to 30 Kg.cm and adjustable rated speed for precise motion control. Compact structure, low noise and long service life, CCW rotation standard. Ideal for automation, robotics and precision small equipment. Customizable parameters and fast inquiry support available for bulk orders.
| Reduction ratio | 1/5 | 1/14 | 1/19 | 1/27 | 1/51 | 1/71 | 1/100 | 1/139 | 1/189 | 1/264 | 1/516 | 1/721 | |
| 12V | Rated torque(Kg.cm) | 1.0 | 2.4 | 3.3 | 4.7 | 7.6 | 10 | 15 | 20 | 23 | 25 | 30 | 30 |
| Rated speed(rpm) | 1100 | 420 | 300 | 210 | 110 | 81 | 58 | 41 | 30 | 22.5 | 11.6 | 8.4 | |
| 24V | Rated torque(Kg.cm) | 1.1 | 2.7 | 3.7 | 5.2 | 8.5 | 12 | 16 | 20 | 25 | 25 | 30 | 30 |
| Rated speed(rpm) | 1050 | 390 | 280 | 200 | 105 | 76 | 55 | 41 | 29 | 22.5 | 11.6 | 8.4 | |
| Rotation direction | CCW | ||||||||||||
| Length（L-mm） | 33.1 | 41.8 | 50.5 | 59.2Rated volt(V)Rated torque（g.cm）Rated speed(rpm)Rated current(mA)No load speed(rpm)No load current(mA)Weight(g)122505800<=16006400<=300264242805500<=9006400<=160266 | |||||||||
