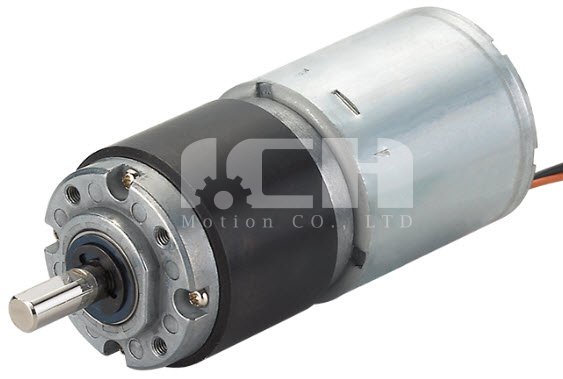

Planetary gearmotor D323PH-41&42

Quantity:
  • D323PH-41&42

Reduction ratio 1/13 1/18 1/25 1/48 1/68 1/94 1/132 1/180 1/250 1/349 1/491 1/683
12V Rated torque(g.cm) 1.8 2.5 3.5 5.8 8 10 10 12 12 12 12 12
Rated speed(rpm) 150 109 75 41 29.5 21.5 15.5 12 8.4 6.5 4.4 3.3
24V Rated torque(g.cm) 2.2 3.1 4.4 7.2 8 10 10 12 12 12 12 12
Rated speed(rpm) 295 210 150 80 58 41.5 30 23 16.3 12 8.4 6.1

Rotation direction CW

Length(L-mm) 28.5 34.9 41.3

Rated volt(V) Rated torque(g.cm) Rated speed(rpm) Rated current(mA) No load speed(rpm) No load current(mA) Weight(g)
12 200 2000 <=1000 2800 <=350 145
24 250 3900 <=1230 5000 <=400 145

D323P-41&42
D323P-41&42电机曲线
