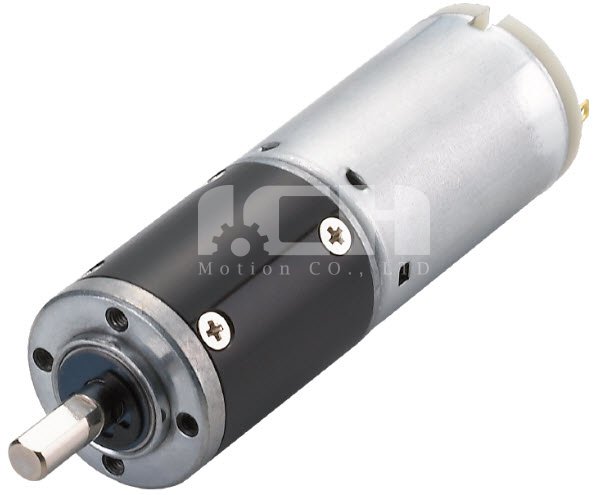

D283-03&04
| Reduction ratio | 1/5 | 1/14 | 1/19 | 1/27 | 1/35 | 1/51 | 1/71 | 1/100 | 1/139 | 1/189 | 1/264 | 1/516 | 1/721 | 1/939 |
12V | Rated torque(Kg.cm) | 0.32 | 0.75 | 1.0 | 1.4 | 1.9 | 2.4 | 3.3 | 4.7 | 6.6 | 7.4 | 10 | 10 | 10 | 10 |
Rated speed(rpm) | 1000 | 375 | 270 | 193 | 148 | 102 | 73 | 52 | 37.3 | 27.5 | 19.7 | 10.5 | 7.5 | 5.7 | |
24V | Rated torque(Kg.cm) | 0.38 | 0.9 | 1.2 | 1.7 | 2.3 | 2.8 | 4.0 | 5.6 | 7.8 | 8.8 | 10 | 10 | 10 | 10 |
Rated speed(rpm) | 990 | 370 | 265 | 191 | 147 | 101 | 72 | 51.5 | 36.9 | 27.2 | 19.3 | 10.4 | 7.4 | 5.7 | |
| Rotation direction | CCW | |||||||||||||
| Length(L-mm) | 24.5 | 30.9 | 37.3 | 43.7 |
| Reduction ratio | 1/5 | 1/14 | 1/19 | 1/27 | 1/35 | 1/51 | 1/71 | 1/100 | 1/139 | 1/189 | 1/264 | 1/516 | 1/721 | 1/939 |
12V | Rated torque(Kg.cm) | 0.32 | 0.75 | 1.0 | 1.4 | 1.9 | 2.4 | 3.3 | 4.7 | 6.6 | 7.4 | 10 | 10 | 10 | 10 |
Rated speed(rpm) | 1000 | 375 | 270 | 193 | 148 | 102 | 73 | 52 | 37.3 | 27.5 | 19.7 | 10.5 | 7.5 | 5.7 | |
24V | Rated torque(Kg.cm) | 0.38 | 0.9 | 1.2 | 1.7 | 2.3 | 2.8 | 4.0 | 5.6 | 7.8 | 8.8 | 10 | 10 | 10 | 10 |
Rated speed(rpm) | 990 | 370 | 265 | 191 | 147 | 101 | 72 | 51.5 | 36.9 | 27.2 | 19.3 | 10.4 | 7.4 | 5.7 | |
| Rotation direction | CCW | |||||||||||||
| Length(L-mm) | 24.5 | 30.9 | 37.3 | 43.7 |
| Reduction ratio | 1/5 | 1/14 | 1/19 | 1/27 | 1/35 | 1/51 | 1/71 | 1/100 | 1/139 | 1/189 | 1/264 | 1/516 | 1/721 | 1/939 |
12V | Rated torque(Kg.cm) | 0.32 | 0.75 | 1.0 | 1.4 | 1.9 | 2.4 | 3.3 | 4.7 | 6.6 | 7.4 | 10 | 10 | 10 | 10 |
Rated speed(rpm) | 1000 | 375 | 270 | 193 | 148 | 102 | 73 | 52 | 37.3 | 27.5 | 19.7 | 10.5 | 7.5 | 5.7 | |
24V | Rated torque(Kg.cm) | 0.38 | 0.9 | 1.2 | 1.7 | 2.3 | 2.8 | 4.0 | 5.6 | 7.8 | 8.8 | 10 | 10 | 10 | 10 |
Rated speed(rpm) | 990 | 370 | 265 | 191 | 147 | 101 | 72 | 51.5 | 36.9 | 27.2 | 19.3 | 10.4 | 7.4 | 5.7 | |
| Rotation direction | CCW | |||||||||||||
| Length(L-mm) | 24.5 | 30.9 | 37.3 | 43.7 |
| Reduction ratio | 1/5 | 1/14 | 1/19 | 1/27 | 1/35 | 1/51 | 1/71 | 1/100 | 1/139 | 1/189 | 1/264 | 1/516 | 1/721 | 1/939 |
12V | Rated torque(Kg.cm) | 0.32 | 0.75 | 1.0 | 1.4 | 1.9 | 2.4 | 3.3 | 4.7 | 6.6 | 7.4 | 10 | 10 | 10 | 10 |
Rated speed(rpm) | 1000 | 375 | 270 | 193 | 148 | 102 | 73 | 52 | 37.3 | 27.5 | 19.7 | 10.5 | 7.5 | 5.7 | |
24V | Rated torque(Kg.cm) | 0.38 | 0.9 | 1.2 | 1.7 | 2.3 | 2.8 | 4.0 | 5.6 | 7.8 | 8.8 | 10 | 10 | 10 | 10 |
Rated speed(rpm) | 990 | 370 | 265 | 191 | 147 | 101 | 72 | 51.5 | 36.9 | 27.2 | 19.3 | 10.4 | 7.4 | 5.7 | |
| Rotation direction | CCW | |||||||||||||
| Length(L-mm) | 24.5 | 30.9 | 37.3 | 43.7 |
