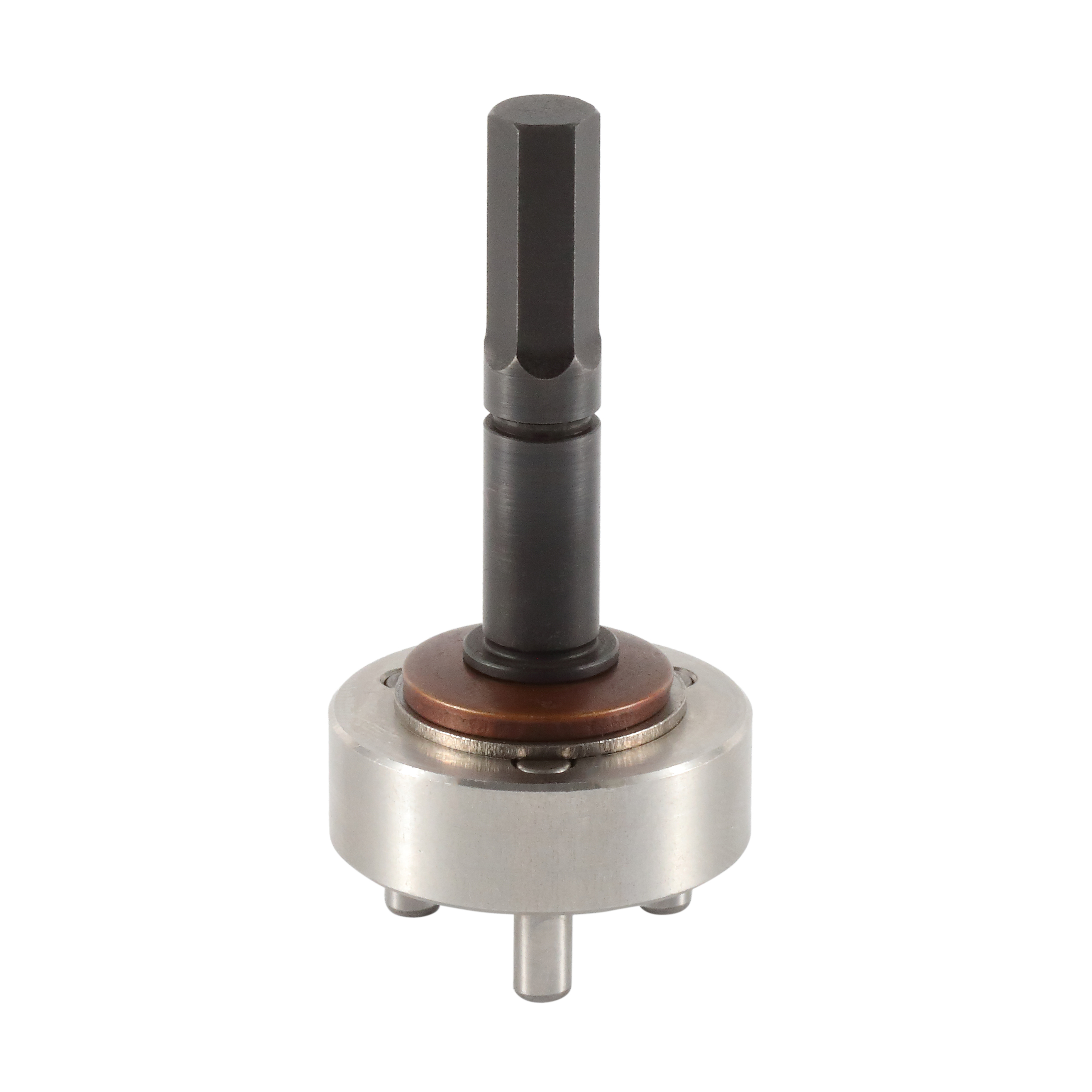

Planetary gearmotor D223C-03&04

Series: DP223C-03&04
Frame Size: 22mm
Working Voltage: 12V 24V
Output Shaft: Single or dual
Running Temperature: -15℃ ~ 70℃
Output Torque: 170-5000 g.cm
Gearbox Ratio: 1:5-1:735
Application:Ticket dispenser. Bank equipment, Communication equipment,
Availability:
Quantity:
Inquire Add to Basket

  • D223C-03&04


Reduction ratio1/51/181/201/251/661/771/901/1101/1361/2461/3361/3931/4841/5971/7351/10791/14751/21241/3968
12VRated torque(g.cm)170560650820180021002450300037005000500050005000500050006000600060006000
Rated speed(rpm)15004003402801059480655329221915.512.5107.15.33.82.0
24VRated torque(g.cm)190640750930200024002800350040005000500050005000500050006000600060006000
Rated speed(rpm)160042035029011098846855312320161310.57.45.53.92.0

Rotation directionCW

Length（L-mm）23.329.535.741.948.1


Rated volt(V) Rated torque（g.cm） Rated speed(rpm) Rated current(mA) No load speed(rpm) No load current(mA) Weight(g)
12 46 7230 <=500 9000 <=120 43
24 53 7550 <=300 9000 <=80 43



Planetary Gear Motor
D223C-03&04电机曲线

D133-01&02.doc
