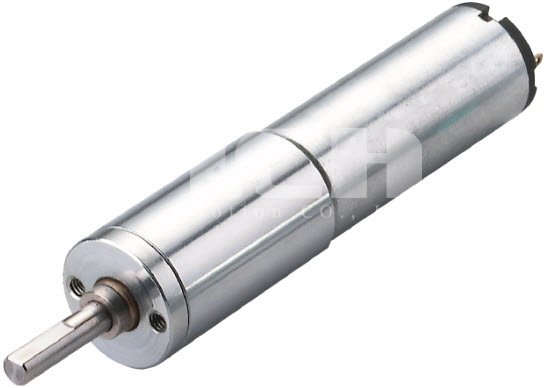

Planetary gearmotor D133-01&02

Quantity:
Inquire Add to Basket

  • D133-01&02


Reduction ratio 1/4 1/16 1/64 1/256 1/1024 1/4096
2.4V Rated torque(g.cm) 20 70 250 840 2000 2000
Rated speed(rpm) 2400 600 150 38 10 2.8
3.0V Rated torque(g.cm) 19 65 230 780 2000 2000
Rated speed(rpm) 2400 610 150 39 10 2.8

Rotation direction CW CW CW CW CW CW

Length(L-mm) 10.2 13.5 16.8 20.1 23.4 26.7



Reduction ratio 1/4 1/16 1/64 1/256 1/1024 1/4096
2.4V Rated torque(g.cm) 20 70 250 840 2000 2000
Rated speed(rpm) 2400 600 150 38 10 2.8
3.0V Rated torque(g.cm) 19 65 230 780 2000 2000
Rated speed(rpm) 2400 610 150 39 10 2.8

Rotation direction CW CW CW CW CW CW

Length(L-mm) 10.2 13.5 16.8 20.1 23.4 26.7

D133-01&02
D133-01&02电机曲线2
D133-01&02.doc
