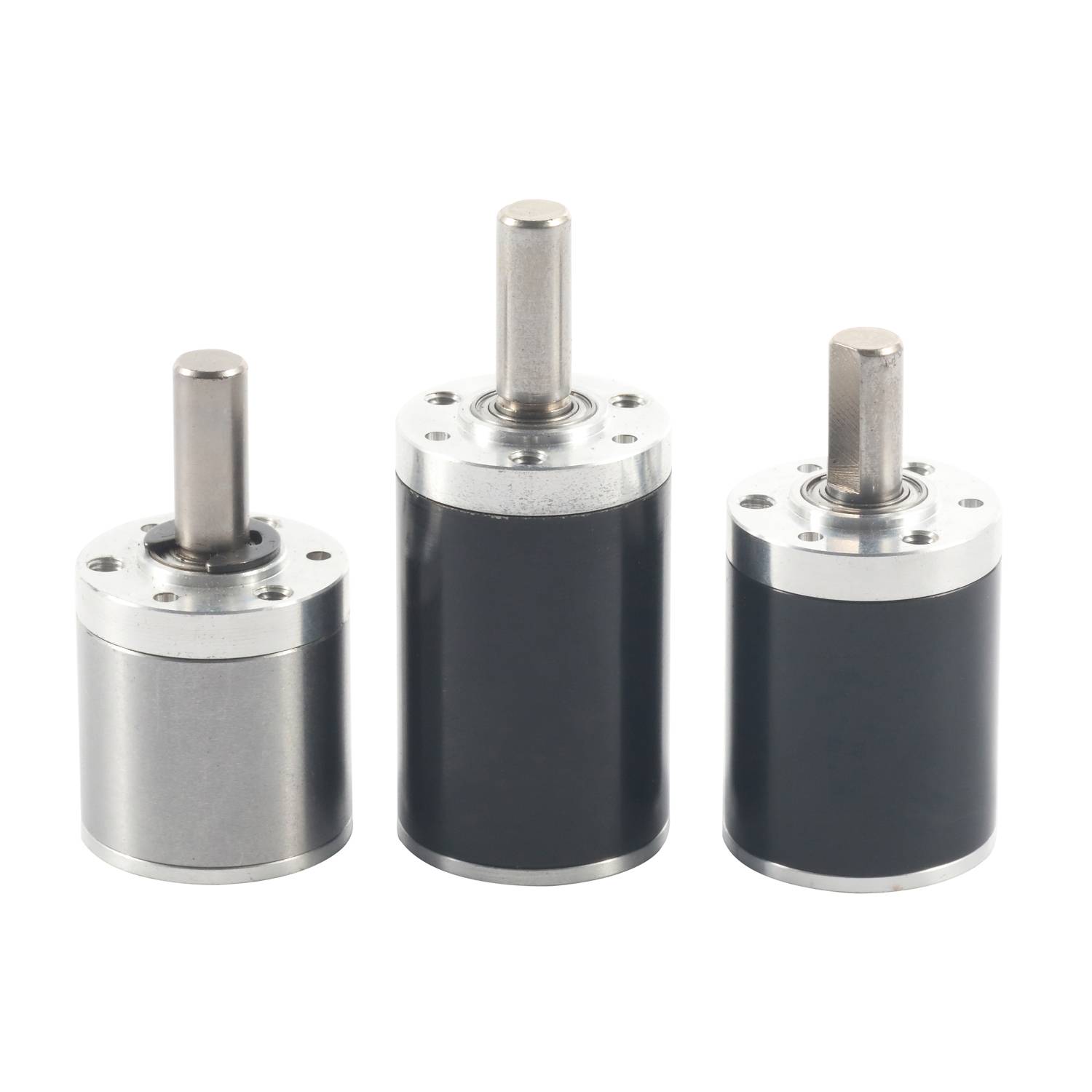

Planetary gearbox D0103

Availability:
Quantity:
  • D103

Maximize torque and accuracy in compact spaces with our high-performance 13mm planetary gearbox.  Engineered for excellence, it delivers exceptional power density, reliable performance, and smooth, low-noise operation.  Ideal for robotics, medical devices, precision automation, and aerospace applications where size and reliability are critical.  Our gearbox ensures minimal backlash, high efficiency, and long service life.  Choose a robust solution that guarantees precise motion control.  Elevate your design with the perfect blend of miniature size and maximum output.  Partner with us for components that drive innovation.


Housing materialBearing at outputRadial load (5mm from flange)Shaft axial loadShaft press fit force,max.Radial play of shaftThrust play of shaftBacklash at no-load
MetalSleeve bearings≤100gf≤200gf≤500gf≤0.05mm≤0.2mm≤3°


Module No. of teeth Pressure angle Hole diameter Reduction ratio.
0.2 12 20° 0.99


Reduction ratio Rated tolerance torque (g.cm Max.) Max momentary tolerance torque (g.cm ) Efficiency Length(L-mm) Weight(g)/Sleeve bearings
1/4 50 150 85% 11.7 6.2
1/16 100 300 75% 14.8 7.2
1/64 300 900 65% 17.9 8.2
1/256 400 1200 55% 21 10.2
1/1024 500 1500 45% 24.1 11.2
1/4096 600 1800 40% 27.2 13.2


planetary gearbox
