H201(20mm)- 1.8° per step, 2/4 Phase
I.CH
Nema 8 Stepping Motor
Description
The standard NEMA 8 Stepper Motor is the smallest type that I.CH supplies and manufactures. The characteristic is a high torque, low price.
Electrical Specification | |||||||||
Series Model | Step Angle ( o ) | L (mm) | Rate Current (A) | Phase Resistance | Phase (mH) | Holding Torque | Detent Torque (N.cm) | Lead | Motor |
H201-00102 | 1.8 | 28 | 0.2 | 23 | 7.2 | 1.4 | 0.2 | 4 | 50 |
H201-00106 | 1.8 | 28 | 0.6 | 3.2 | 0.9 | 1.4 | 0.2 | 4 | 50 |
H201-00202 | 1.8 | 34 | 0.2 | 25 | 8.4 | 1.8 | 0.3 | 4 | 70 |
H201-00206 | 1.8 | 34 | 0.6 | 4.5 | 1.2 | 1.8 | 0.3 | 4 | 70 |
H201-00302 | 1.8 | 40 | 0.2 | 32 | 8.8 | 2.6 | 0.5 | 4 | 82 |
H201-00306 | 1.8 | 40 | 0.6 | 5.8 | 1.6 | 2.6 | 0.5 | 4 | 82 |
* If need customize, contact our Sales Dept.
Pull Out Torque Curve |
MODEL: H201-00102 CURRENT:0.2A VOLTAGE:24VDC FULL STEP MODEL: H201-00206 CURRENT:0.6A VOLTAGE:24VDC FULL STEP MODEL: H201-00306 CURRENT:0.6A VOLTAGE:24VDC FULL STEP |
Description
The standard NEMA 8 Stepper Motor is the smallest type that I.CH supplies and manufactures. The characteristic is a high torque, low price.
Electrical Specification | |||||||||
Series Model | Step Angle ( o ) | L (mm) | Rate Current (A) | Phase Resistance | Phase (mH) | Holding Torque | Detent Torque (N.cm) | Lead | Motor |
H201-00102 | 1.8 | 28 | 0.2 | 23 | 7.2 | 1.4 | 0.2 | 4 | 50 |
H201-00106 | 1.8 | 28 | 0.6 | 3.2 | 0.9 | 1.4 | 0.2 | 4 | 50 |
H201-00202 | 1.8 | 34 | 0.2 | 25 | 8.4 | 1.8 | 0.3 | 4 | 70 |
H201-00206 | 1.8 | 34 | 0.6 | 4.5 | 1.2 | 1.8 | 0.3 | 4 | 70 |
H201-00302 | 1.8 | 40 | 0.2 | 32 | 8.8 | 2.6 | 0.5 | 4 | 82 |
H201-00306 | 1.8 | 40 | 0.6 | 5.8 | 1.6 | 2.6 | 0.5 | 4 | 82 |
* If need customize, contact our Sales Dept.
Pull Out Torque Curve |
MODEL: H201-00102 CURRENT:0.2A VOLTAGE:24VDC FULL STEP MODEL: H201-00206 CURRENT:0.6A VOLTAGE:24VDC FULL STEP MODEL: H201-00306 CURRENT:0.6A VOLTAGE:24VDC FULL STEP |

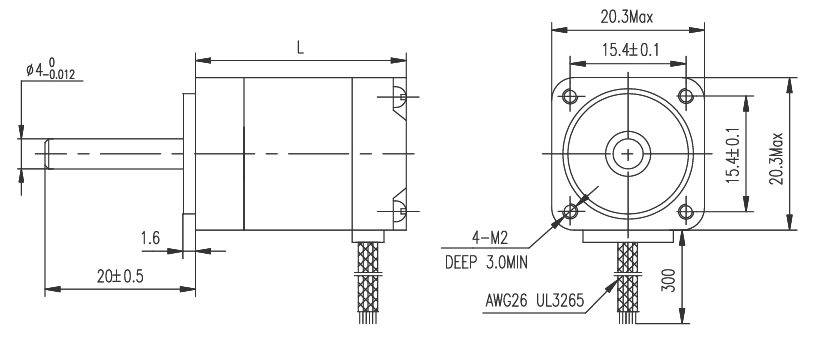

Dimension:
The following diagram is the dimension of the high torque stepper motor. The output shaft is 20mm. For the method of wire connection, there exist two different types. For uni-polar, blank, yellow, and green wires connect to one coil, red, white, and blue wires connect to the other. As for bipolar, black and green connect to one coil, red and blue connects to the other.
Mechanical Dimensions |
|

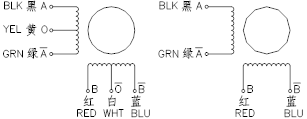

Standard Leadwire Configuration |
Uni-polar Bi-polar |
Uni-polar
Dimension:
The following diagram is the dimension of the high torque stepper motor. The output shaft is 20mm. For the method of wire connection, there exist two different types. For uni-polar, blank, yellow, and green wires connect to one coil, red, white, and blue wires connect to the other. As for bipolar, black and green connect to one coil, red and blue connects to the other.
Mechanical Dimensions |
|
Standard Leadwire Configuration |
Uni-polar Bi-polar |
Uni-polar

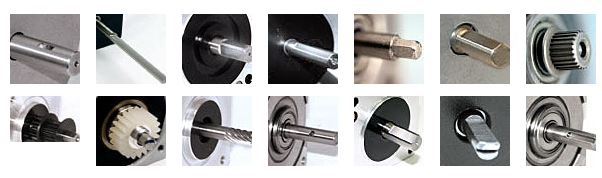

Custom Shaft
Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
Stepper Motor with Encoder
Encoder is customized for customer
Stepper Geared Motor
Planetary Gearbox Stepper Motor
Spur Gearbox Stepper Motor

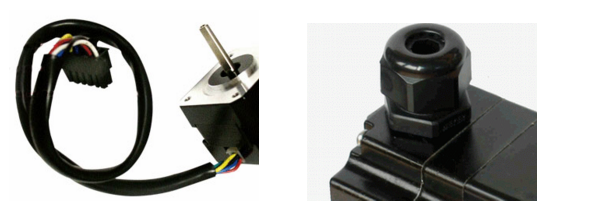

Connector
Molex, Harwin, Tyco/AMP, JST etc.
Special length, Protective hose
Service:
The hybrid stepper motor whose application is motion control can be customized by customer’s needs, if you have needs, please contact us.
Custom Shaft
Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
Stepper Motor with Encoder
Encoder is customized for customer
Stepper Geared Motor
Planetary Gearbox Stepper Motor
Spur Gearbox Stepper Motor
Connector
Molex, Harwin, Tyco/AMP, JST etc.
Special length, Protective hose
Service:
The hybrid stepper motor whose application is motion control can be customized by customer’s needs, if you have needs, please contact us.
Full Datasheet
H201.pdf
Full Datasheet
H201.pdf
Factory Ability
Our factory provides all kinds of electric motors, such as hybrid stepper motor, DC motor, AC synchronous motor. We have accumulated over ten years experience to meet different clients requires, all of our products can be customized. And we are a mature team with professional engineer, technician and sales, furthermore, we provide all customers with best after-sales service.
Hardometer Production Line Testing Performance-test Equipment
Winding Machine Torque-test Equipment Grinding Machine
Advantages
1. We are a customized Hybrid Stepping Motor factory, design product for different customers' needs.
2. We provide you with profession technical guidance in the middle of usage, and never let you down during after-sales service.
3. We got more than 10 years experience in Stepping Motor field, we give you best project solution.
Package
-Pack well by carton with protection foam;
-Shipping by Sea, train, air or your requests;
-Lead time:20 to 60 working days.
FAQ
Q:What are your Stepper Motors can be use to ?
A: Our step motors can be use in CNC routers, CNC milling machine, engraving machine, packaging machine, filling machine, cutting machine, printing machine, laser machine, carving machine, labeling machine, CCTV and robot.
Q:What kind of Payment methods do you accept ?
A: We can accept Paypal and , TT.
Q:What kind of shipping methods do you use ?
A:1) For samples or small batch of micro stepper motor, air shipping is recommended. (DHL, Fedex, TNT, UPS, EMS), We will provide the tracking No. Once we get it after we ship out the products.
2)For mass production or big batch of stepping motors, ocean shipping/sea shipment is recommended .
Q:What is the lead time of stepper motors?
A: For mass production, the lead time depends on the quantities you need .
Q:What is your warranty time ?
A: Warranty time : 12 months. And we provide life-long technical service and after-sale service.
Q:Can you make customized shaft?
A: We can make single shaft, double shaft or other shape.
Q:What is NEMA size of this motor?
A: It is NEMA 8 with 1.8 degree or 0.9 degree.
Factory Ability
Our factory provides all kinds of electric motors, such as hybrid stepper motor, DC motor, AC synchronous motor. We have accumulated over ten years experience to meet different clients requires, all of our products can be customized. And we are a mature team with professional engineer, technician and sales, furthermore, we provide all customers with best after-sales service.
Hardometer Production Line Testing Performance-test Equipment
Winding Machine Torque-test Equipment Grinding Machine
Advantages
1. We are a customized Hybrid Stepping Motor factory, design product for different customers' needs.
2. We provide you with profession technical guidance in the middle of usage, and never let you down during after-sales service.
3. We got more than 10 years experience in Stepping Motor field, we give you best project solution.
Package
-Pack well by carton with protection foam;
-Shipping by Sea, train, air or your requests;
-Lead time:20 to 60 working days.
FAQ
Q:What are your Stepper Motors can be use to ?
A: Our step motors can be use in CNC routers, CNC milling machine, engraving machine, packaging machine, filling machine, cutting machine, printing machine, laser machine, carving machine, labeling machine, CCTV and robot.
Q:What kind of Payment methods do you accept ?
A: We can accept Paypal and , TT.
Q:What kind of shipping methods do you use ?
A:1) For samples or small batch of micro stepper motor, air shipping is recommended. (DHL, Fedex, TNT, UPS, EMS), We will provide the tracking No. Once we get it after we ship out the products.
2)For mass production or big batch of stepping motors, ocean shipping/sea shipment is recommended .
Q:What is the lead time of stepper motors?
A: For mass production, the lead time depends on the quantities you need .
Q:What is your warranty time ?
A: Warranty time : 12 months. And we provide life-long technical service and after-sale service.
Q:Can you make customized shaft?
A: We can make single shaft, double shaft or other shape.
Q:What is NEMA size of this motor?
A: It is NEMA 8 with 1.8 degree or 0.9 degree.
