Critical Gear-Material And Shaft-Interface Decisions for High-Reduction DC Planetary Motors Used in Fluid-Sampling Automation

When designing automated fluid-sampling equipment for water-quality monitoring, system engineers frequently focus attention on torque and gear-ratio figures while underestimating two decisive hardware elements inside planetary DC geared motor assemblies: gear-box material selection and output-shaft mechanical-interface design. Poor decisions in these two domains will trigger coupling slippage, premature gear-tooth wear, or position drift after power-off under silicone-tube spring-back load, causing unreliable liquid sampling volume and degrading the whole instrument’s field-measurement credibility. This article explores practical engineering trade-offs of gear-material alternatives and output-shaft geometry, grounded on real-world industrial inquiry cases for environmental monitoring instruments with tube-squeezing actuation mechanism.

The motor’s core mission within sampling automation is driving a roller or cam structure to repetitively compress and release elastic silicone tubing. The silicone material stores mechanical energy when squeezed. Upon motor power-off, elastic rebound force applies reverse static torque to the motor output shaft. This persistent reverse load creates two major failure risks: first, gear-teeth creep or fatigue wear under static cyclic stress; second, undesired backward rotation of output shaft which ruins compressed-tube position and sampling accuracy. Both risks are heavily influenced by gear-box material quality and how torque transfers through output-shaft coupling.

We first analyze gear-material options available for multi-stage high-reduction planetary gearboxes. Three primary material schemes appear in industrial compact planetary gear motors: full-plastic gear sets, mixed composite-metal gear sets, and all-metal gear sets. Each solution brings distinct strength, weakness and cost-level characteristics.

· Full-plastic gear sets: Lowest material cost. Plastic gears work well for light-load intermittent consumer-product applications. Nevertheless, sustained static squeezing force from silicone tubing creates long-term stress on plastic gear teeth. Plastic material will produce creep deformation gradually, leading to increased backlash and degraded torque-transmission performance. Full-plastic gears are generally not recommended for environmental-monitoring instruments requiring thousands-unit annual output and long-term field reliability.

· Mixed composite-metal gear sets: Combine metal and engineered-plastic components to strike middle ground of cost and durability. It can handle moderate cyclic-load scenarios, but performance margin under continuous static reverse torque from silicone-tube rebound needs careful assessment.

· All-metal gear sets: Metal gear-teeth provide outstanding anti-creep and anti-fatigue performance under repeated static and dynamic squeezing load. This configuration matches high-reliability requirements of field-deployed water-sampling analytical instruments. The primary downside is higher unit cost compared to plastic-based alternatives.

When submitting your request-for-quotation, you must explicitly communicate gear-material expectation to your motion-solution supplier. In real-world industrial communication, quotation price differs noticeably depending on whether all-metal gear construction is specified versus low-cost plastic-gear variant. Without explicit requirement statement, vendors may quote cost-optimized plastic-gear version by default, which cannot satisfy static-torque holding requirement of silicone-tube compression mechanism.

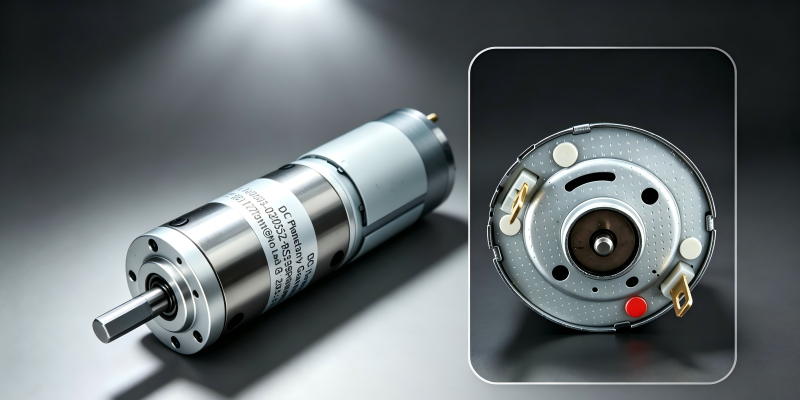

The second key decision point is output-shaft interface geometry. For torque-transmission to tube-squeezing cam or roller assembly, round smooth shaft cannot reliably transfer torque. Under static reverse-torque load from silicone-tube rebound, simple round-shaft-to-coupler connection tends to slip, even with set-screw tightening. D-flat shaft (shaft with one machined flat cutting surface) becomes standard solution for this kind of actuation scenario. The flat profile creates positive mechanical anti-rotation locking between motor output-shaft and driven mechanical coupling component.

Table-3 summarizes common shaft-interface pros and cons for tube-squeezing actuation applications:

From the table, D-flat shaft strikes optimal balance for compact-envelope high-reduction planetary DC motor deployed in water-sampling instruments. In your technical requirement document, do not only write down shaft diameter value. You also need to clearly define D-flat feature dimension, flat-surface depth and angular position reference. This detail must be captured inside supplier’s mechanical drawing for formal review before sample production. Missing D-flat specification leads to unusable motor samples even if diameter number matches your expectation.

Many engineers hold one common misconception: “high gear-reduction ratio alone guarantees anti-back-driving performance”. This understanding requires correction. Planetary gear-box obtains resistance to reverse rotation from accumulated friction loss of multi-stage gear meshing. Higher gear ratio increases reverse-driving torque threshold, but planetary transmission does not feature inherent self-locking property like worm-gear mechanism. Real-world holding capability varies with lubricant formulation, gear-material hardness, component-manufacturing tolerance and progressive wear during service lifecycle. Therefore static position-holding test using your real silicone-tube hardware remains non-negotiable validation work for prototype samples.

When cooperating with motor manufacturers, share application background information actively. Send mechanical sketches, photos or short videos illustrating your tube-squeezing assembly. This helps motor-design engineers understand real static and dynamic load conditions, so they can properly evaluate gear-material and shaft-interface solution instead of only matching isolated datasheet figures. Even if you already have legacy reference-motor running on existing equipment, sharing its field-operation feedback offers valuable reference for supplier engineering team.

Project-execution best-practice checklist for gear-material and shaft-interface:

1. Clearly specify gear-material requirement in inquiry document (all-metal gears recommended for silicone-squeezing load).

2. Explicitly define D-flat output-shaft dimension parameters, not only shaft diameter.

3. Inspect mechanical drawing carefully: double-check gear-material annotation and D-flat shaft geometry before giving approval.

4. During sample bench-test phase, verify coupling anti-slip performance under static silicone-tube rebound load.

5. Keep gear-material and shaft-interface parameters locked as formal technical baseline when moving to mass-production. Any later modification needs formal drawing revision and re-validation test.

In environmental-monitoring fluid-sampling automation, system reliability heavily counts on these seemingly minor mechanical details. Gear-material choice defines gear-tooth anti-fatigue capacity under static cyclic squeezing stress. Output-shaft D-flat geometry guarantees torque-transmission reliability and eliminates coupling-slippage failure mode. Paying sufficient attention to these two critical technical points during specification, drawing-review and sample validation stages prevents expensive field-equipment malfunction after mass-production release.
