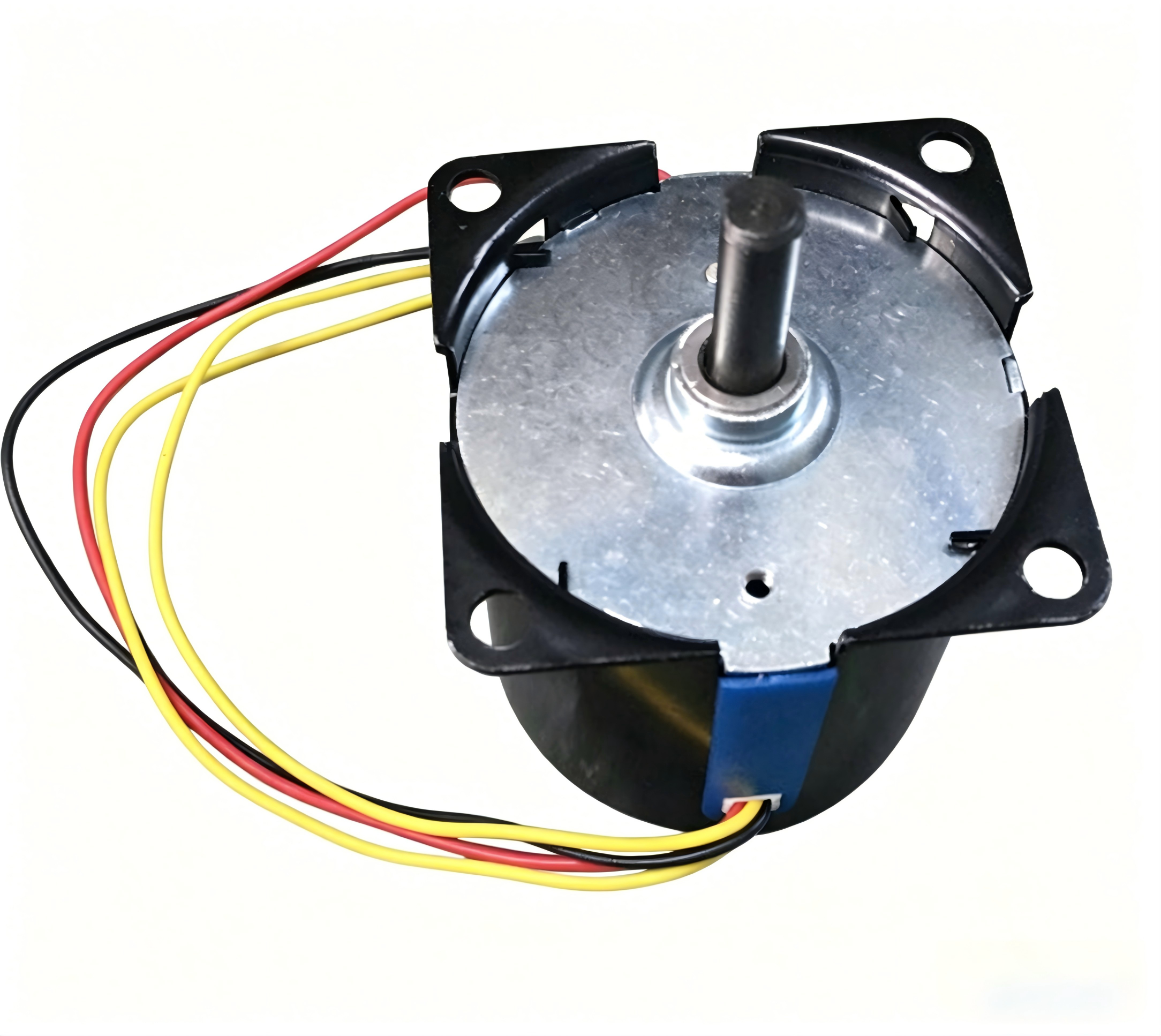

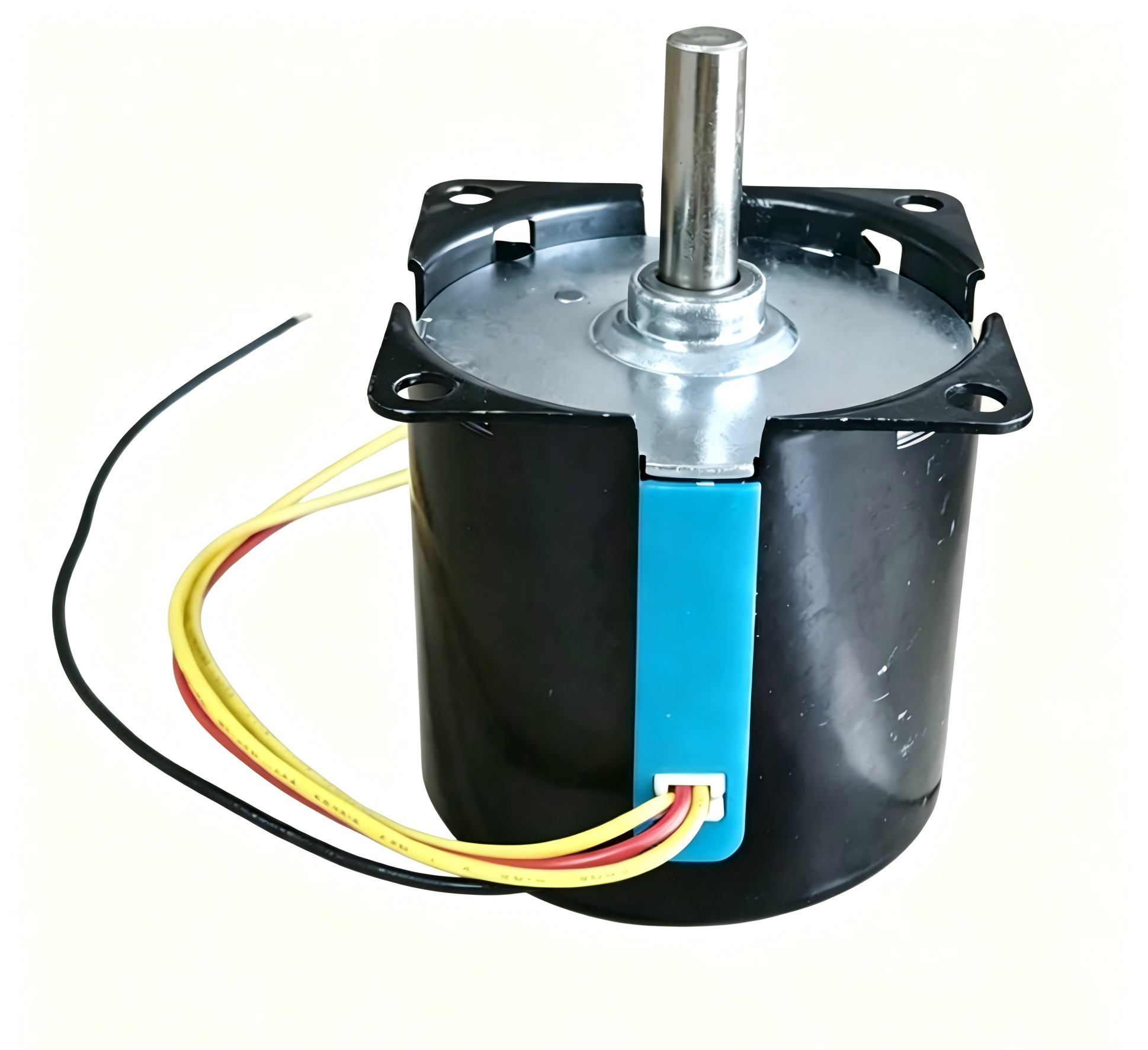

59mm AC Reversible Synchronous Motor

• Manufacturer Part Number: S593A
• Motor Type: AC Synchronous Motor
• Speed : 1.6~99rpm
• Frequency: 50Hz or 60 Hz
• Power: Lower than 16W(24~220VAC)
• Torque: Max 80kg.cm
• AC Gear Motor Rotation:CW,CCW,Bi-directional
• Application: Laminator Motor

Quantity:
  • S593A(59mm)- 50/60Hz
  • I.CH
Specification
Model Output speed
(rpm)
Output Torque (kg.cm / lb.in) Voltage
(V.AC)
Current
(A)
Frequency
(Hz)
Input Power
(W)
Noise
(dB)
Rotation
S1 continuous S2
15 minutes
S2
5 minutes
S593-80-1.6 1.6 >80 / 70 If intermittent running, low-speed motor can output 150kg.cm torque, it is a customization for you. Welcome to contact us freely! 24
*********
110
*********
220
<0.3
**********
<0.065
*********
<0.032
50/60Hz <16 <40 CW / CCW / Bi-directional
S593-80-02 2 >80 / 70
S593-80-2.5 2.5 >80 / 70
S593-80-03 3 80 / 70
S593-60-04 4 60 / 52.2
S593-50-05A 5 50 / 43.5
S593-30-08 8 30 / 26
S593-25-10 10 25 / 21.8
S593-20-12 12 20 / 17.4
S593-16-15 15 16 / 13.9 29 / 25.2 35 / 30.5
S593-12-20 20 12 / 10.4 22 / 19.1 26 / 22.6
S593-10-25 25 10 / 8.7 17 / 14.8 21 / 18.2
S593-08-30 30 8 / 7 15 / 13 17.5 / 15.2
S593-05-50 50 5 / 4.35 9 / 7.8 10.5 / 9.1
S593-05-60 60 4.5 / 3.9 7 / 6 8.8 / 7.7
S593-03-99 99 2.5 / 2.17 4.5 / 3.5 5.3 / 4.6
Note:  Above datas are from motors under 50Hz. If under 60Hz, Speed*1.2 , Torque/1.2
       Other speed and torque needed, please contact our sale department

Safety
Insulation resistance DC 500V 100M ohms
Insulation strength AC1500V, 50Hz/min(220V motor)
Insulation class E(105) / B(130)
Environment Temp.-10~+40 / Humidity: <85
Certification CE ROHS CCC

Mechanical Dimensions
S593A DWG

Custom Shaft
Round Shaft, D-Cut Sahft, H-Cut Shaft, Custom Length

Connector
Molex, Harwin, Tyco/AMP, JST etc.

connector



Leadwires and Cables
Special lengths, Protective hose

wires
Full Datasheet
S593A.pdf

Factory Ability
I.CH Motion started the business from AC motors, after 10 years development, our products  is enlarged to BLDC motors, capacitor motors, synchronous motors, stepping motors, servo motors, and PMDC motors. Our products are widely used for making refrigerators, freezers, micro-wave ovens, air warmers, air exhausters, ventilators, ovens, air filter, massage machines and many other equipments.

Advantages
1. Convenient & Friendly Customer Service;
2. Low Prices Direct From Factory Suppliers;
3. Fast Delivery Around the World;


Package
-Packing with Cartons, pallets;
-Shipping way: Sea, air or train;
-Lead time: 15 to 50 days.
1  2  3


FAQ
Q: What voltage can you supply?
A: 24V, 110V, 220V or we can customized voltage.

Q: What largest torque can you make for this AC synchronous motor?
A: We can make the torque to 100kg.cm.

Q: Do you provide technology support?
A: YES. Our company have strong R&D capability, we can provide technology support if you need.

Q: What is rotation of AC Gear Motor?
A: It could be CW,CCW,Bi-directional, and depends your condition.
