DG525(52mm) - 24VDC
I.CH

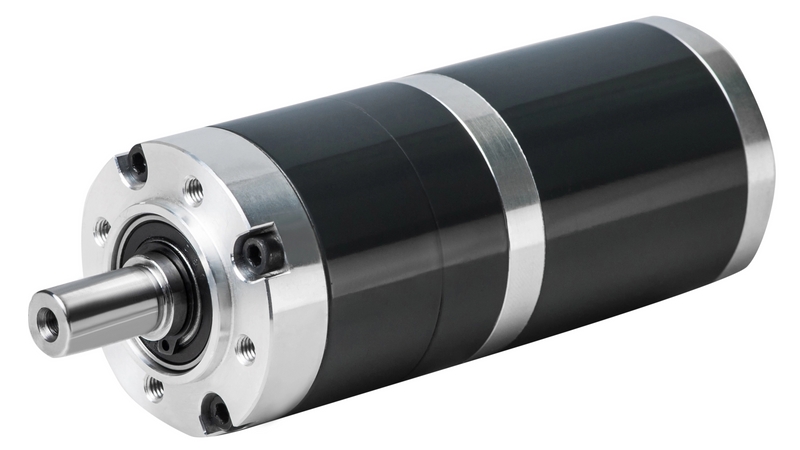

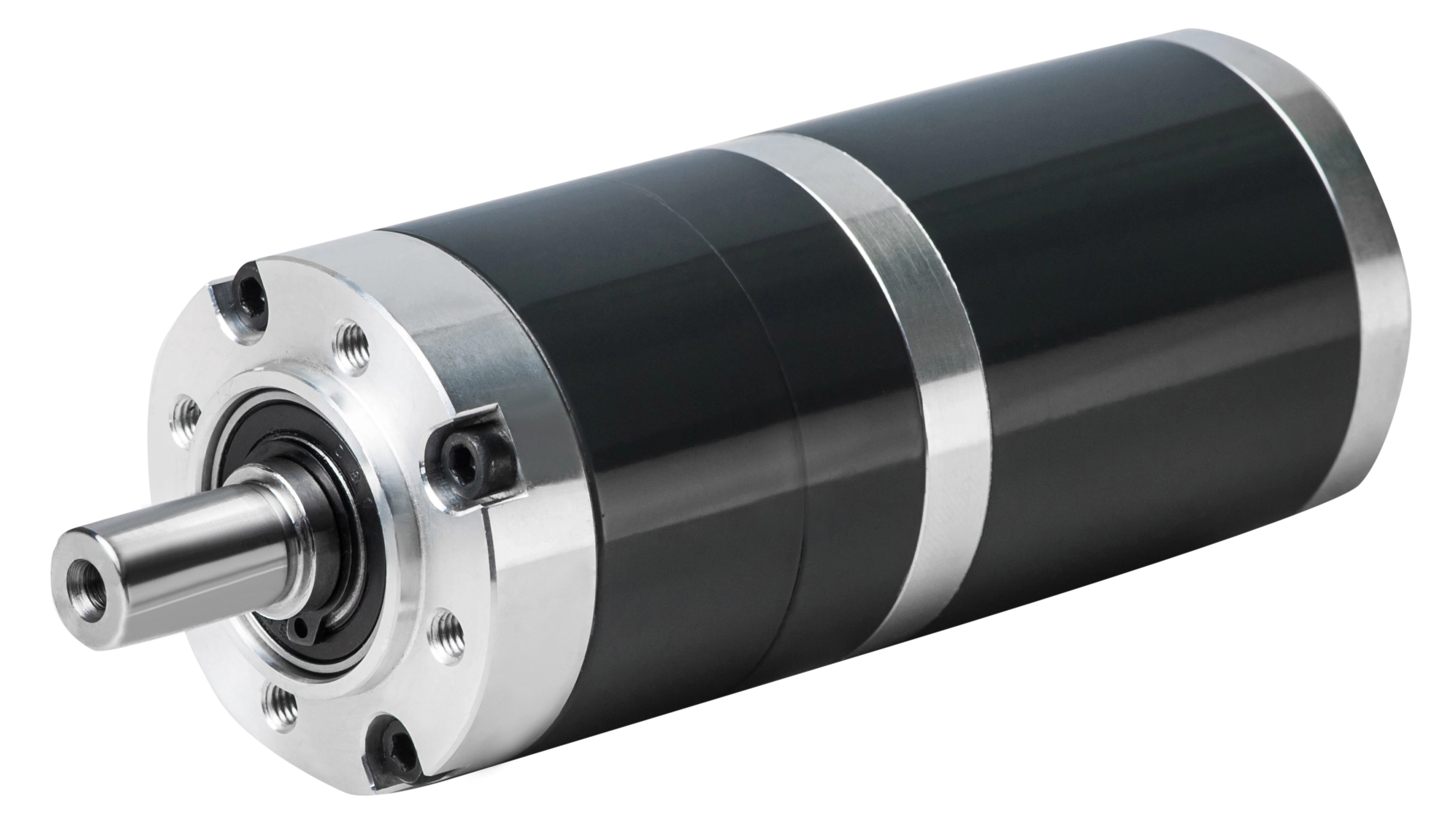

BLDC Gear Motor
The DG525 is a brushless DC motor integrated with a planetary gearbox. This product is a good solution for the application that requires high torque at low speed under 3000rpm.
The 52MM brushless DC gear motor that I.CH manufactures can deliver high starting torque, which is ideal for variable speed applications.
(1) Small size dc gear motor with low rpm and high torque.
(2) Wide range gear ratio, from 5 to 100.
(3) The rated torque can reach up to 0.3N.m
| Electrical Specification | |||
Motor Model | DG525-31W | DG525-63W | DG525-94W |
Rated Voltage(VDC) | 24 | 24 | 24 |
Rated Speed(Rpm) | 3000 | 3000 | 3000 |
Rated Torque(N.m) | 0.1 | 0.2 | 0.3 |
Rated Power(W) | 31 | 63 | 94 |
L1 Length(mm) | 59 | 79 | 99 |
| Gearbox Electrical Specifications | ||
Reducer Series | 1 | 2 |
Transmission efficiency | 90% | 81% |
Max radial load | 200N | 200N |
Max axial load | 100N | 100N |
Transmission torque | 6N.m | 12N.m |
Reduction Ratio | 5,10 | 20,25,40,50,100 |
L2 Length(mm) | 35.5 | 45 |
*Note: We can manufacture products according to customer’s requirements.
