D372B1(37mm)
I.CH

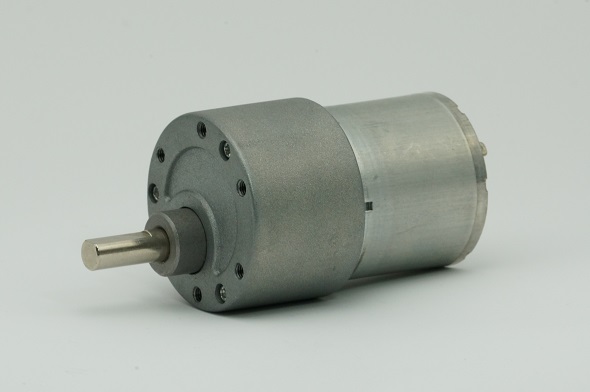

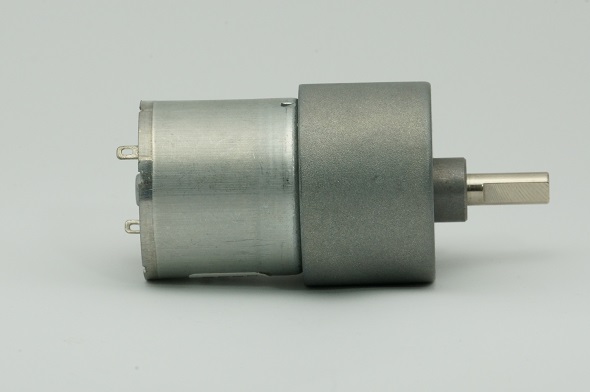

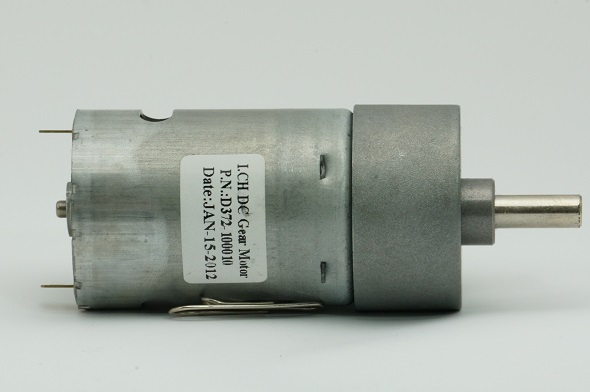

37mm DC Geared Motor integrated a 37mm spur gearbox of 1:10 to 1:1350 gear ratio. It is a good solution to application that with limited space but low speed and high torque.
Specification | |||||||||
MODEL | VOLTAGE V | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||
SPEED rpm | CURRENT mA | SPEED rpm | TORQUE Kg.cm | CURRENT mA | OUTPUT mW | TORQUE Kg.cm | CURRENT mA | ||
D372-020050 | 24.0 | 180 | 50 | 145 | 2.0 | 220 | 3000 | 10.0 | 1000 |
D372-100490 | 24.0 | 12 | 45 | 11 | ﹡10.0 | 100 | 1200 | 40.0 | 700 |
D372-060270 | 12.0 | 11 | 25 | 9 | 6.0 | 100 | 500 | 30.0 | 400 |
D372-020070A | 12.0 | 60 | 50 | 48 | 2.0 | 150 | 1000 | 10.0 | 600 |
D372-020070B | 12.0 | 96 | 100 | 80 | 2.0 | 320 | 1600 | 12.0 | 2000 |
D372-015030 | 12.0 | 280 | 100 | 230 | 1.5 | 600 | 3500 | 8.0 | 2600 |
D372-015050 | 6.0 | 152 | 170 | 125 | 1.5 | 850 | 1900 | 8.0 | 3500 |
D372-040090 | 12.0 | 60 | 50 | 48 | 4.0 | 320 | 2000 | 18.0 | 1500 |
D372-020050 | 24.0 | 125 | 45 | 100 | 2.0 | 150 | 2100 | 10.0 | 700 |
Gear Ratio | ||||||
Number of stages | 2 | 3 | 4 | 5 | 6 | 7 |
Gear ratio i | 10 | 20 | 50 | 150 | 300 | 750 |
30 | 60 | 180 | 350 | 900 | ||
70 | 210 | 450 | 1050 | |||
90 | 270 | 630 | 1350 | |||
Length of gearbox L (mm) | 19.0 | 21.5 | 24.0 | 26.5 | 29.0 | 31.5 |
37mm DC Geared Motor integrated a 37mm spur gearbox of 1:10 to 1:1350 gear ratio. It is a good solution to application that with limited space but low speed and high torque.
Specification | |||||||||
MODEL | VOLTAGE V | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||
SPEED rpm | CURRENT mA | SPEED rpm | TORQUE Kg.cm | CURRENT mA | OUTPUT mW | TORQUE Kg.cm | CURRENT mA | ||
D372-020050 | 24.0 | 180 | 50 | 145 | 2.0 | 220 | 3000 | 10.0 | 1000 |
D372-100490 | 24.0 | 12 | 45 | 11 | ﹡10.0 | 100 | 1200 | 40.0 | 700 |
D372-060270 | 12.0 | 11 | 25 | 9 | 6.0 | 100 | 500 | 30.0 | 400 |
D372-020070A | 12.0 | 60 | 50 | 48 | 2.0 | 150 | 1000 | 10.0 | 600 |
D372-020070B | 12.0 | 96 | 100 | 80 | 2.0 | 320 | 1600 | 12.0 | 2000 |
D372-015030 | 12.0 | 280 | 100 | 230 | 1.5 | 600 | 3500 | 8.0 | 2600 |
D372-015050 | 6.0 | 152 | 170 | 125 | 1.5 | 850 | 1900 | 8.0 | 3500 |
D372-040090 | 12.0 | 60 | 50 | 48 | 4.0 | 320 | 2000 | 18.0 | 1500 |
D372-020050 | 24.0 | 125 | 45 | 100 | 2.0 | 150 | 2100 | 10.0 | 700 |
Gear Ratio | ||||||
Number of stages | 2 | 3 | 4 | 5 | 6 | 7 |
Gear ratio i | 10 | 20 | 50 | 150 | 300 | 750 |
30 | 60 | 180 | 350 | 900 | ||
70 | 210 | 450 | 1050 | |||
90 | 270 | 630 | 1350 | |||
Length of gearbox L (mm) | 19.0 | 21.5 | 24.0 | 26.5 | 29.0 | 31.5 |
Mechanical Dimensions |
Mechanical Dimensions |
Encoder
Clutch
Ratio of Gearbox
Gear Ratio | ||||||
Number of stages | 2 | 3 | 4 | 5 | 6 | 7 |
Gear ratio i | 10 | 20 | 50 | 150 | 300 | 750 |
| 30 | 60 | 180 | 350 | 900 | |
| | 70 | 210 | 450 | 1050 | |
| | | 90 | 270 | 630 | 1350 |
Length of gearbox L (mm) | 19.0 | 21.5 | 24.0 | 26.5 | 29.0 | 31.5 |
Motor
Brush Motor, Brushless Motor, Stepper Motor
Shaft
D-cut Shaft, H-cut Sahft, Rround Sahft
Encoder
Clutch
Ratio of Gearbox
Gear Ratio | ||||||
Number of stages | 2 | 3 | 4 | 5 | 6 | 7 |
Gear ratio i | 10 | 20 | 50 | 150 | 300 | 750 |
| 30 | 60 | 180 | 350 | 900 | |
| | 70 | 210 | 450 | 1050 | |
| | | 90 | 270 | 630 | 1350 |
Length of gearbox L (mm) | 19.0 | 21.5 | 24.0 | 26.5 | 29.0 | 31.5 |
Motor
Brush Motor, Brushless Motor, Stepper Motor
Shaft
D-cut Shaft, H-cut Sahft, Rround Sahft
Full Datasheet
D372B1.pdf
Full Datasheet
D372B1.pdf
Factory Ability
I.CH is a professional motion control Enterprise, which established in 2006, we have more than 10 years experiences in the motion control area.

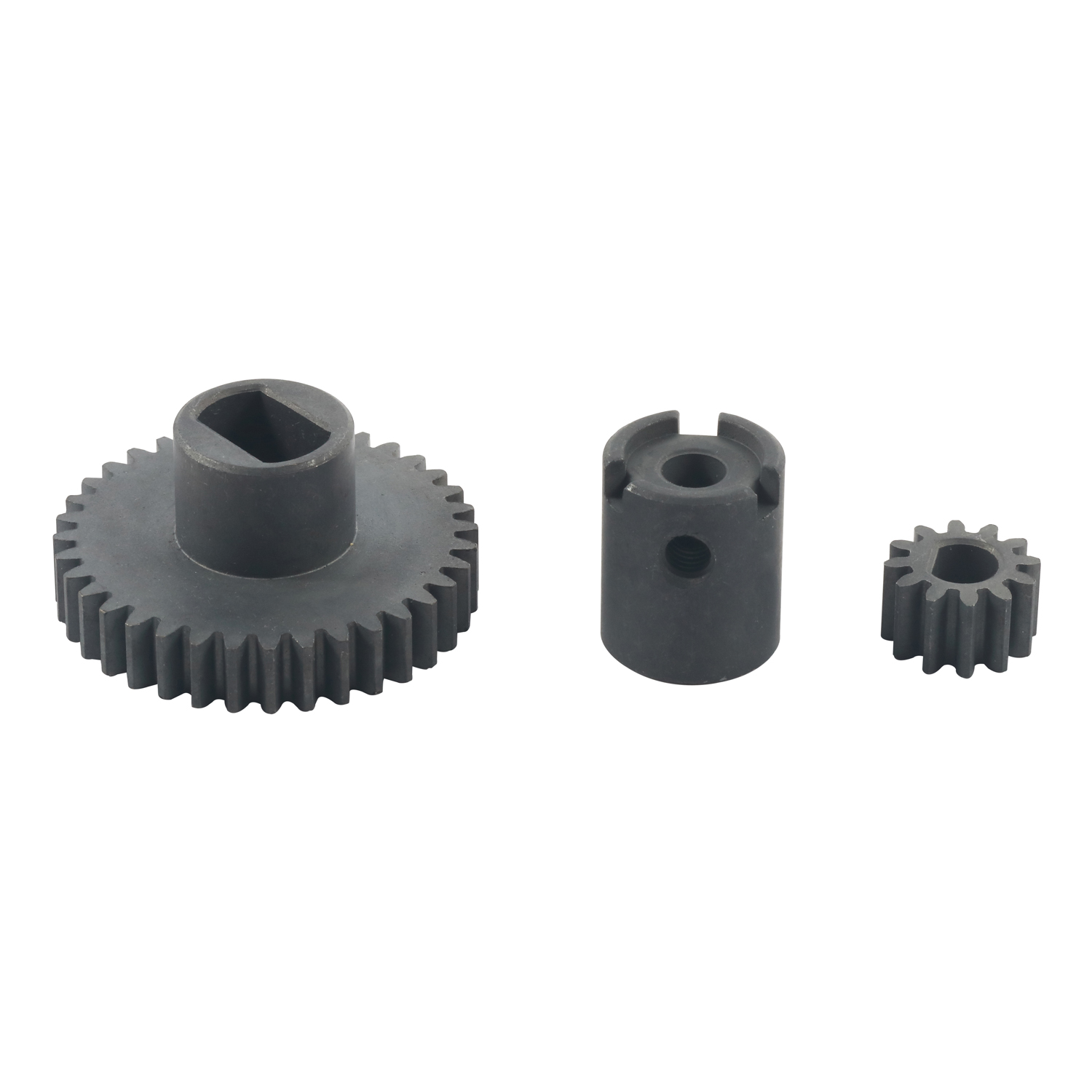

Our main products are hybrid stepper motor, stepping motor driver, AC synchronous motor, integrated step servo motors, integrated step AC servo motors, DC Gear Motor, Brushless DC Motors, DC Brushed Motor, Planetary Gearbox, Gearbox Parts, Design Service, Project Solution and so on.
37mm DC motor with spur gearbox is a good solution to the application that demands a high transmission ratio at low speed. If you think the parameter listed is very suitable for you, please contact us.
