D372B3(37mm)
I.CH

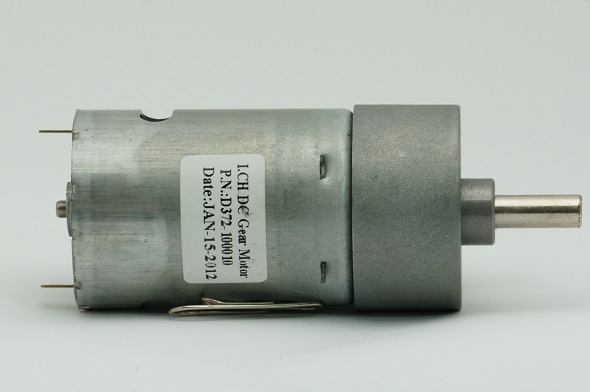

37mm DC Geared Motor integrated a 37mm spur gearbox of 1:10 to 1:1350 gear ratio. It is a good solution to application that with limited space but low speed and high torque.
Specification | |||||||||
MODEL | VOLTAGE V | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||
SPEED rpm | CURRENT A | SPEED rpm | TORQUE Kg.cm | CURRENT mA | OUTPUT mW | TORQUE Kg.cm | CURRENT mA | ||
D372-200210 | 12.0 | 17 | 0.13 | 13.5 | 20.0 | 450 | 2400 | 70.0 | 4000 |
D372-050050 | 24.0 | 140 | 0.15 | 130 | 5.0 | 520 | 6000 | 16.0 | 4000 |
D372-045030 | 24.0 | 110 | 0.10 | 85 | 4.5 | 150 | 4200 | 16.0 | 1200 |
D372-100450 | 24.0 | 7.5 | 0.10 | 7.0 | 10.0 | 150 | 700 | 70.0 | 1200 |
D372-050070 | 12.0 | 70 | 0.20 | 57 | 5.0 | 500 | 3000 | 50.0 | 4200 |
D372-035030 | 24.0 | 165 | 0.12 | 115 | 3.5 | 780 | 4100 | 25.0 | 3100 |
Gear Ratio | ||||||
Number of stages | 2 | 3 | 4 | 5 | 6 | 7 |
Gear ratio i | 10 | 20 | 50 | 150 | 300 | 750 |
30 | 60 | 180 | 350 | 900 | ||
70 | 210 | 450 | 1050 | |||
90 | 270 | 630 | 1350 | |||
Length of gearbox L (mm) | 19.0 | 21.5 | 24.0 | 26.5 | 29.0 | 31.5 |
37mm DC Geared Motor integrated a 37mm spur gearbox of 1:10 to 1:1350 gear ratio. It is a good solution to application that with limited space but low speed and high torque.
Specification | |||||||||
MODEL | VOLTAGE V | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||
SPEED rpm | CURRENT A | SPEED rpm | TORQUE Kg.cm | CURRENT mA | OUTPUT mW | TORQUE Kg.cm | CURRENT mA | ||
D372-200210 | 12.0 | 17 | 0.13 | 13.5 | 20.0 | 450 | 2400 | 70.0 | 4000 |
D372-050050 | 24.0 | 140 | 0.15 | 130 | 5.0 | 520 | 6000 | 16.0 | 4000 |
D372-045030 | 24.0 | 110 | 0.10 | 85 | 4.5 | 150 | 4200 | 16.0 | 1200 |
D372-100450 | 24.0 | 7.5 | 0.10 | 7.0 | 10.0 | 150 | 700 | 70.0 | 1200 |
D372-050070 | 12.0 | 70 | 0.20 | 57 | 5.0 | 500 | 3000 | 50.0 | 4200 |
D372-035030 | 24.0 | 165 | 0.12 | 115 | 3.5 | 780 | 4100 | 25.0 | 3100 |
Gear Ratio | ||||||
Number of stages | 2 | 3 | 4 | 5 | 6 | 7 |
Gear ratio i | 10 | 20 | 50 | 150 | 300 | 750 |
30 | 60 | 180 | 350 | 900 | ||
70 | 210 | 450 | 1050 | |||
90 | 270 | 630 | 1350 | |||
Length of gearbox L (mm) | 19.0 | 21.5 | 24.0 | 26.5 | 29.0 | 31.5 |

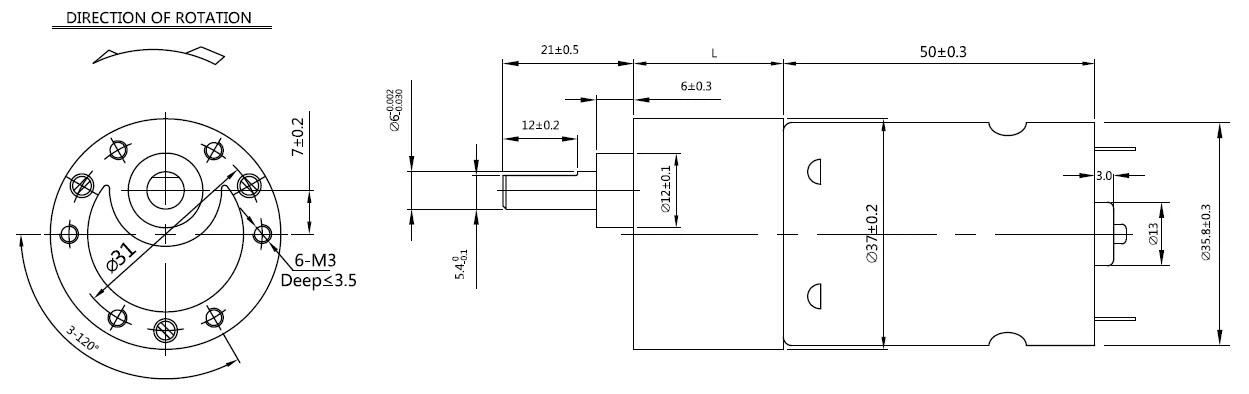

Mechanical Dimensions |
Mechanical Dimensions |
Encoder
Clutch
Ratio of Gearbox
Gear Ratio | ||||||
Number of stages | 2 | 3 | 4 | 5 | 6 | 7 |
Gear ratio i | 10 | 20 | 50 | 150 | 300 | 750 |
| 30 | 60 | 180 | 350 | 900 | |
| | 70 | 210 | 450 | 1050 | |
| | | 90 | 270 | 630 | 1350 |
Length of gearbox L (mm) | 19.0 | 21.5 | 24.0 | 26.5 | 29.0 | 31.5 |
Motor
Brush Motor, Brushless Motor, Stepper Motor
Shaft
D-cut Shaft, H-cut Sahft, Rround Sahft
Encoder
Clutch
Ratio of Gearbox
Gear Ratio | ||||||
Number of stages | 2 | 3 | 4 | 5 | 6 | 7 |
Gear ratio i | 10 | 20 | 50 | 150 | 300 | 750 |
| 30 | 60 | 180 | 350 | 900 | |
| | 70 | 210 | 450 | 1050 | |
| | | 90 | 270 | 630 | 1350 |
Length of gearbox L (mm) | 19.0 | 21.5 | 24.0 | 26.5 | 29.0 | 31.5 |
Motor
Brush Motor, Brushless Motor, Stepper Motor
Shaft
D-cut Shaft, H-cut Sahft, Rround Sahft
Full Datasheet
D372B3.pdf
Full Datasheet
D372B3.pdf
Factory Ability
I.CH Motion started as a trading company in 2006, has different teams to support our customers, R&D team provides customer professional technical suggestions, sales team provides customers purchase experience. Now we not only supply products like DC Brushed Motor, BLDC, Planetary Geared Motor, AC Synchronous Motor, Geared Motor, Reversible Synchronous Motor widely used in household appliance, Auto Control Machine, etc, but also supply technical support and project solutions.
The rated voltage of 37mm gear motor that I.CH manufactures and designs is 3V. Compared with other similar 37mm DC motor, it also is a good solution to the application that requires high torque.
Concentricity detector Ultrasonic Cleaner Gear Testing Center
Gear Inspection Center Gear Hobber Gear Hobbing
Advantages
1. Fast reply;
2. Good price;
3. High quality.
Feature
1, High torque, high efficiency.
2, Carbon brush.
3, Encoder can provide.
Package
-Rigid packages;
-Vessel or sea shipping chosen by clients;
-Due time for sample from 2- to 4 weeks, batch order from 4 to 8 weeks.
FAQ
Q: What max rated torque is the 37mm Gear Motor?
A: Torque for it can be 20Kg.cm.
Q: What minimum speed of this motor?
A: The speed of 37mm size Geared motor can be 2-3rpm.
Q: What application of 37mm DC Gear Motor?
A: Going to be used as Financial Paper Feeder Motor, Accessory of Automobile Motor, Ad Equipment Motor, Mini Mechanism Motor.
Note
For the performance curve of torque, current, you can see the PDF.
Factory Ability
I.CH Motion started as a trading company in 2006, has different teams to support our customers, R&D team provides customer professional technical suggestions, sales team provides customers purchase experience. Now we not only supply products like DC Brushed Motor, BLDC, Planetary Geared Motor, AC Synchronous Motor, Geared Motor, Reversible Synchronous Motor widely used in household appliance, Auto Control Machine, etc, but also supply technical support and project solutions.
The rated voltage of 37mm gear motor that I.CH manufactures and designs is 3V. Compared with other similar 37mm DC motor, it also is a good solution to the application that requires high torque.
Concentricity detector Ultrasonic Cleaner Gear Testing Center
Gear Inspection Center Gear Hobber Gear Hobbing
Advantages
1. Fast reply;
2. Good price;
3. High quality.
Feature
1, High torque, high efficiency.
2, Carbon brush.
3, Encoder can provide.
Package
-Rigid packages;
-Vessel or sea shipping chosen by clients;
-Due time for sample from 2- to 4 weeks, batch order from 4 to 8 weeks.
FAQ
Q: What max rated torque is the 37mm Gear Motor?
A: Torque for it can be 20Kg.cm.
Q: What minimum speed of this motor?
A: The speed of 37mm size Geared motor can be 2-3rpm.
Q: What application of 37mm DC Gear Motor?
A: Going to be used as Financial Paper Feeder Motor, Accessory of Automobile Motor, Ad Equipment Motor, Mini Mechanism Motor.
Note
For the performance curve of torque, current, you can see the PDF.
