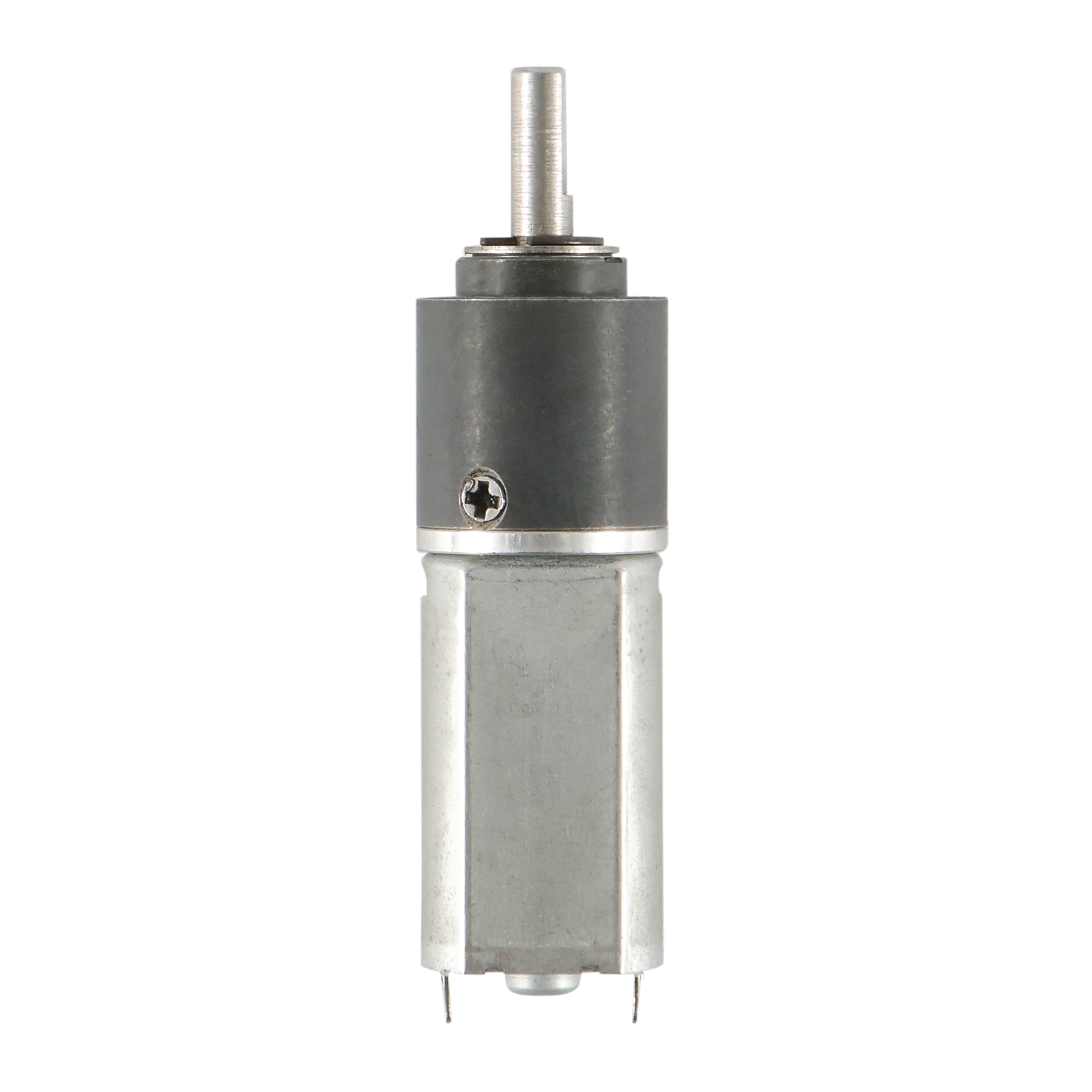

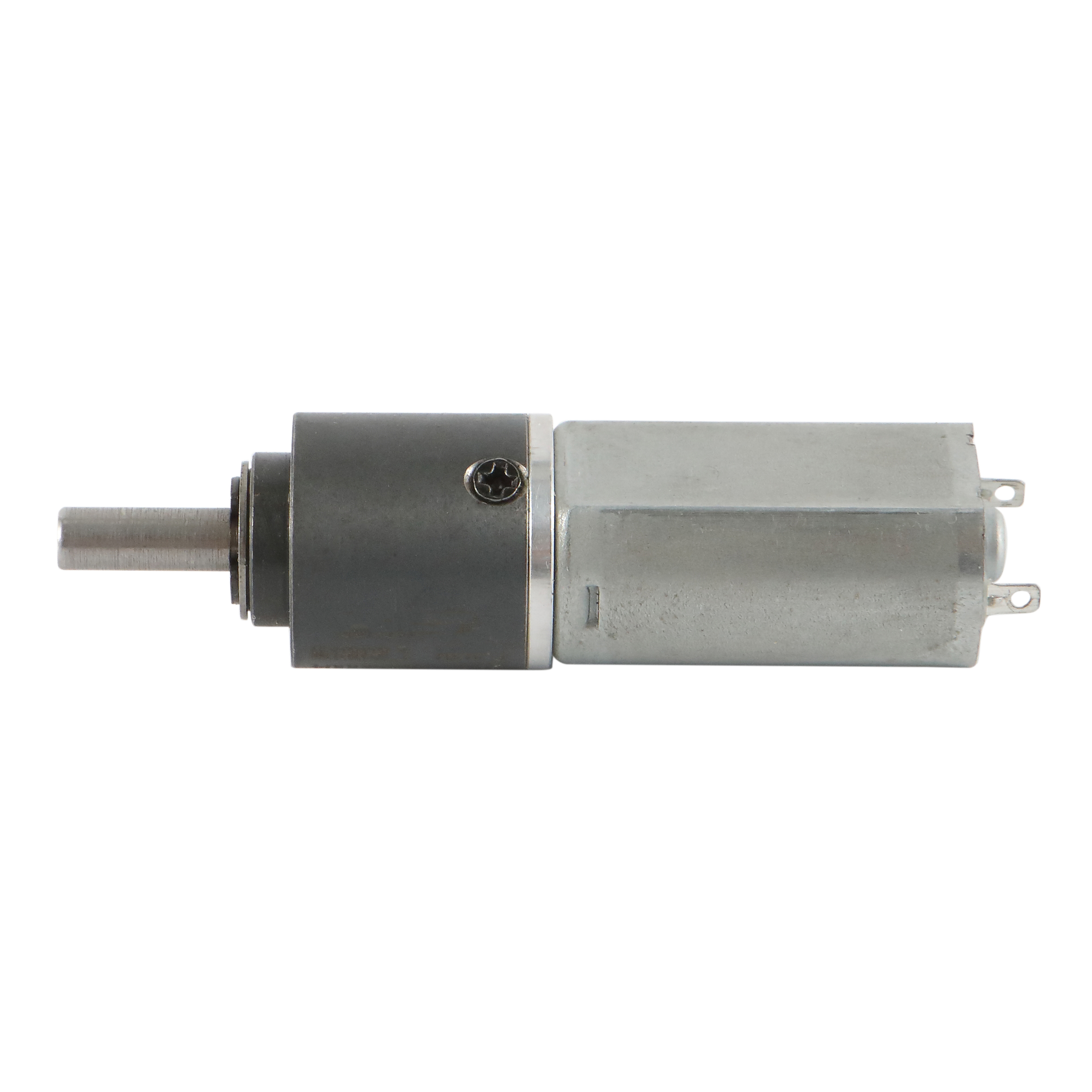

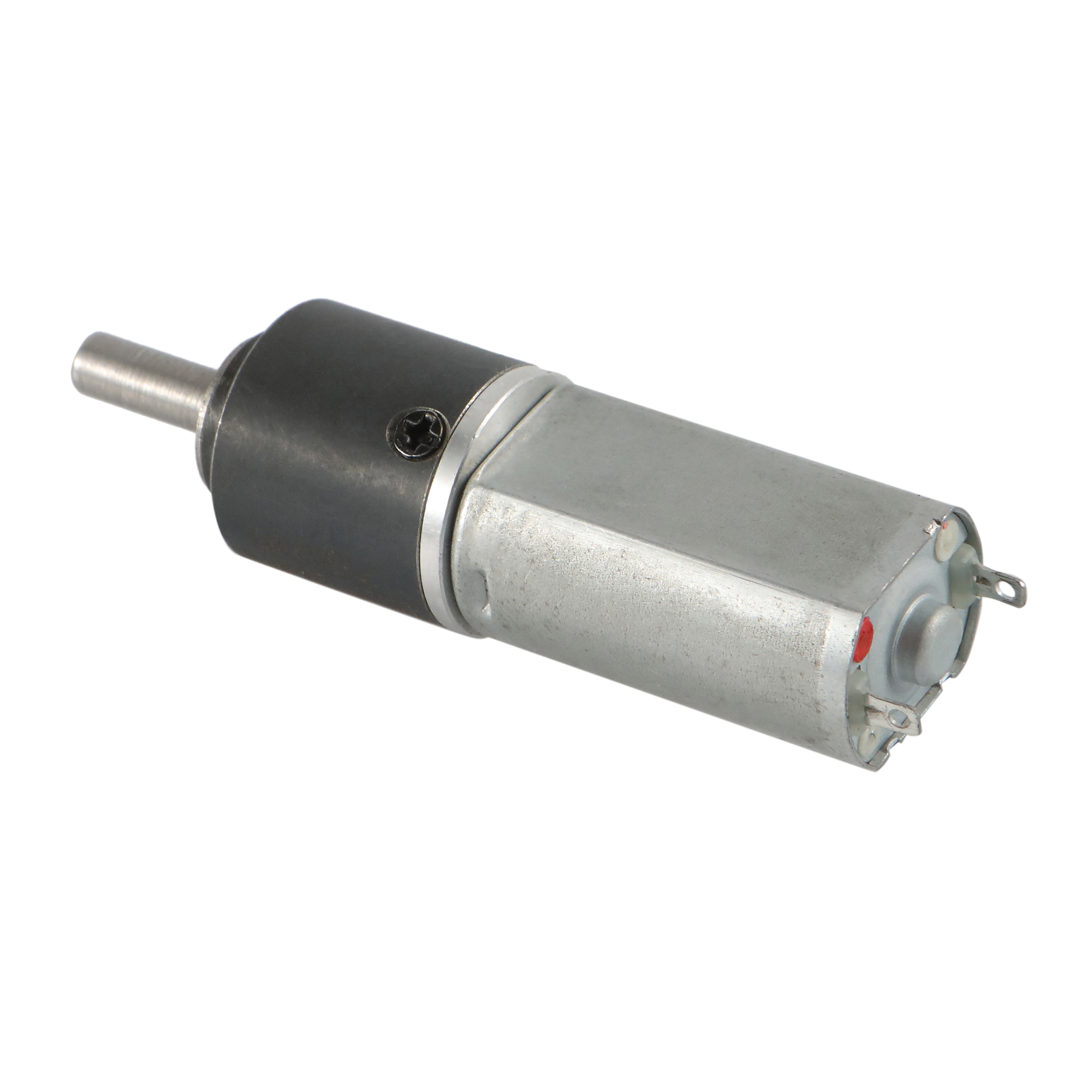

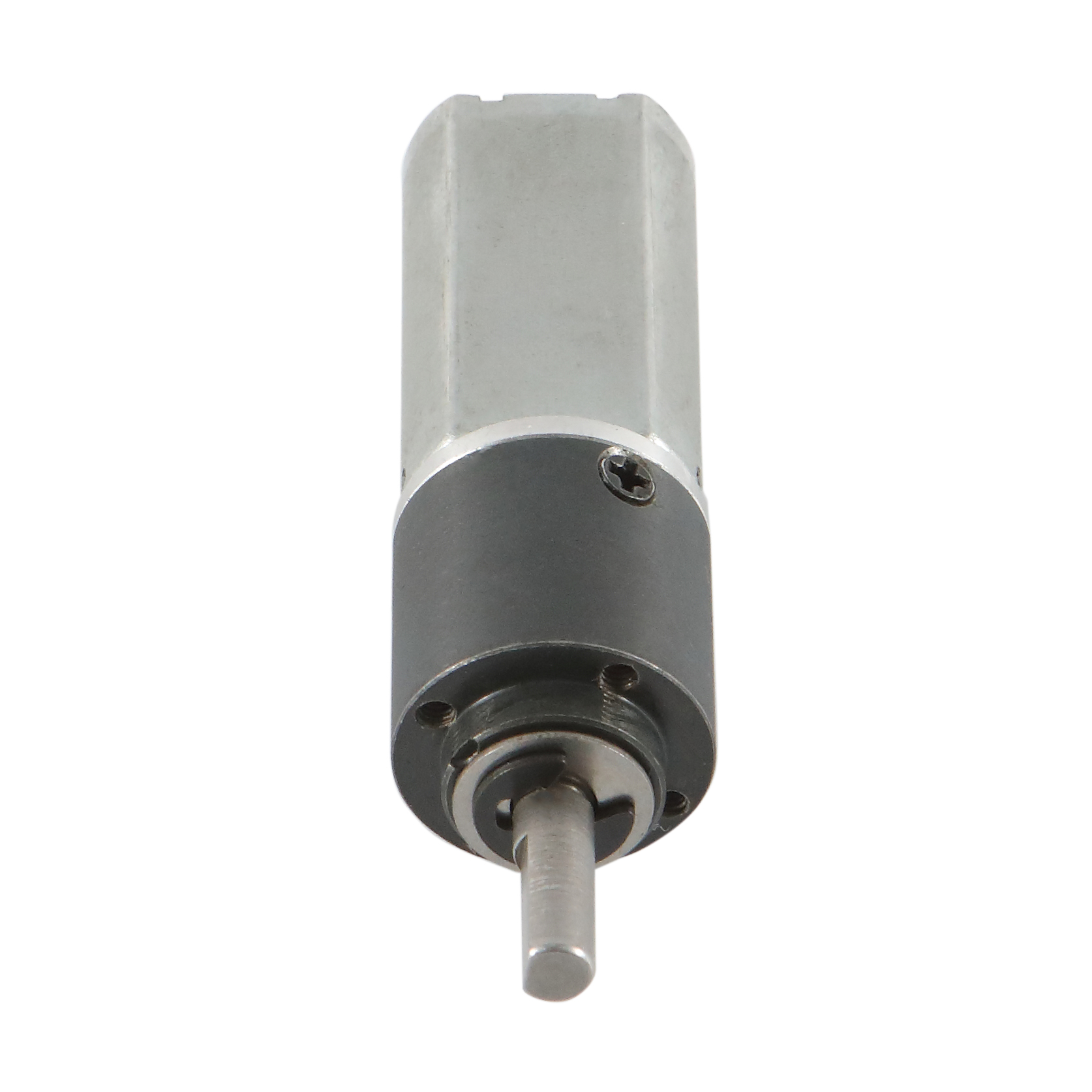

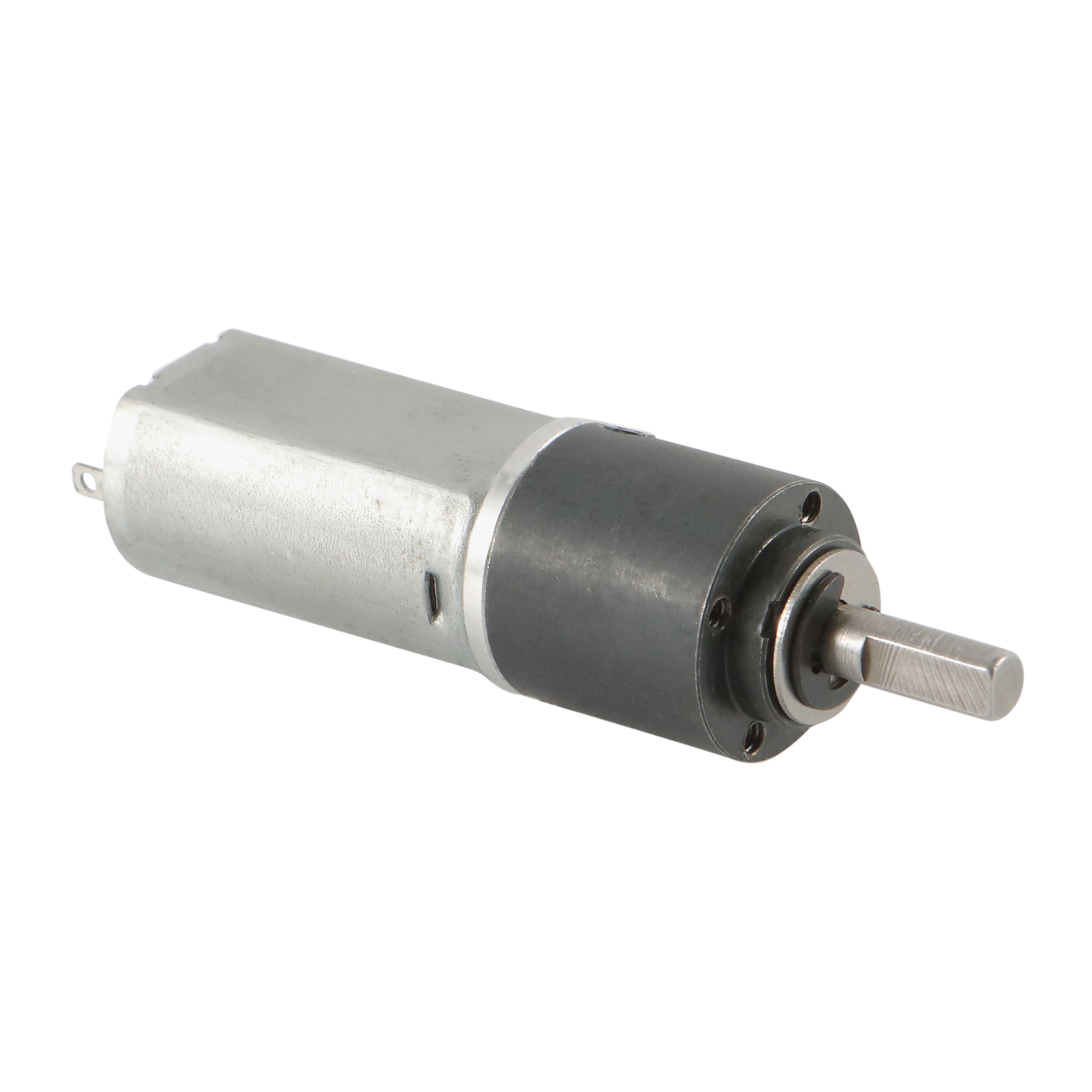

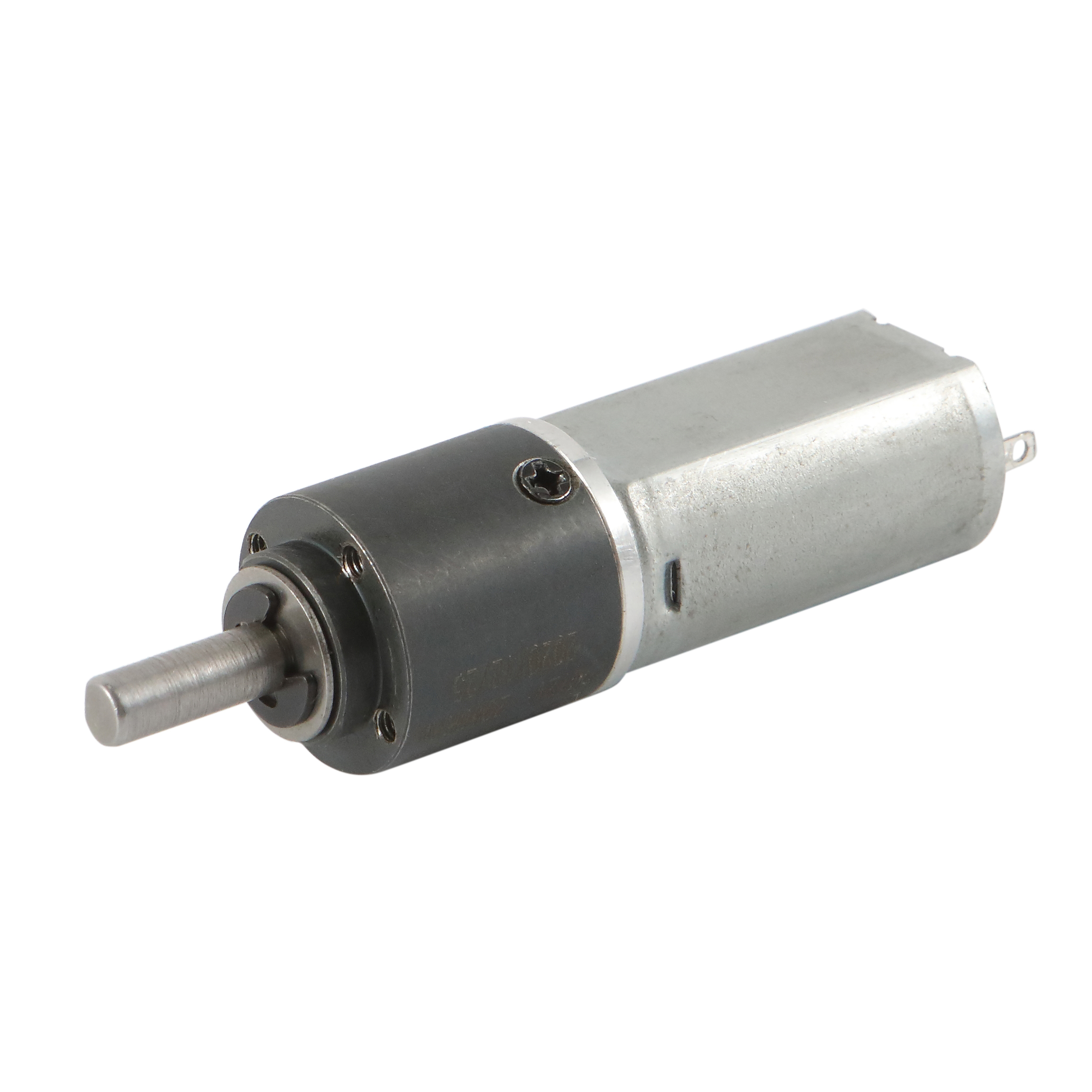

16mm DC Planetary Gear Motor

• Manufacturer Part Number: D163-1A
• Rated Voltage: 12V DC
• Gearbox Type: Planetary Gearbox
• Rated Torque: 0.02-3kg.cm
• Rated Speed: 5-1532rpms
• Gear Ratio:1:4~1:1296
• Electric Planetary Reducer Diameter: 16mm
• Application: Automatic Window Bind Motor,Medical Instrument Motor, Robot
Availability:
Quantity:
  • D163-1A(16mm)

  • I.CH

  Character:


  The 12v planetary gear motor with gear reduction has the following character: high efficiency, low noise, long life, high torque, high performance.


  17mm DC Planetary Geared Motor integrated a 16mm planetary gearbox of 1:4 to 1:1296 gear ratio. It is a good solution to application that with limited space but low speed and high torque.


GEARBOX MOTOR SPECIFICATION
TypeRatio1:41:51:151:231:361:571:691:1001:1291:1671:2221:2671:3201:3851:4151:5361:8341:1296
D163Rated torquekg.cm0.020.020.060.110.160.240.320.420.60.70.8311.21.4551.562.022.83
Rated speedrpm153212264092671701088961483728231916151175
GearboxInstantaneous
torque
Kg.cm1.5233.754.5
Allowable
torque
Kg.cm11.522.53
Lengthmm1417.921.825.729.6
BacklashO0.70.8111.5
Weightg1823283136



MOTOR DATA
Frames volt
(V)
No load speed
(rpm)
No load current
(mA)
Rated torsion
(g.cm)
Rated speed
(rpm)
Rated current
(mA)
Output power
(w)
Weight
(g)
1B7K5-12 7500 20 9 6130 89 0.568 22
Note: Product voltage, output shaft size, electrical performance, you can request custom-made!
MOTOR CHARACTERISTICS
D163-1B-12V CURVE


MECHANICAL DIMENSIONS
D163-1B-1


Encoder
111
Clutch

Connector
Molex,Harwin,Tyco/AMP,JST etc.
QQ截图20180621113414
Motor
Brush Motor,Brushless Motor,Stepper Motor

Shaft
D-cut Shaft,H-cut Sahft,Rround Sahft


Service:


AS a China motor manufacturer, for motor gearbox(reducer) type, output shaft diameter, we can design and manufacture.



Full Datasheet
D163-1B.pdf


Ability:


The solution of 16mm gear motor that I.CH uses is the 16mm brush DC motor with a planetary gearbox. Using the reason for the solution is that the design of planetary gear can share the load evenly with each gear, which can handle heavier loads than spur gear motor.


QQ截图20200415161045


Advantage:


1, High power density


2, Long life


3, Encoder or brake can provide


4, High cost-effective


Service:


1, The one-year guarantee make you feel safe to use.


2, The installation instruction service.


Package:


1, Shockproof foam packing


2, Carton or Pallet


3, The Delivery time is 30-45days.


FAQ:


1, What is the application of 16mm DC planetary geared motor?


Such as Automatic Window Bind, Medical instrument.


2, What is the Rpm or torque of geared motor?


For these parameters, you can see from PDF.
