D162A2(16mm)
I.CH

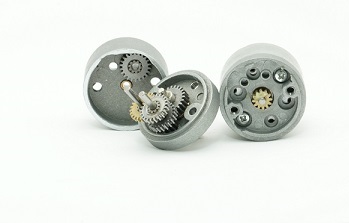

16mm DC Geared Motor integrated a 16mm spur gearbox of 1:10 to 1:298 gear ratio. It is a good solution to application that with limited space but low speed and high torque.
Specification | |||||||||
MODEL | VOLTAGE V | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||
SPEED rpm | CURRENT mA | SPEED rpm | TORQUE kg.cm | CURRENT mA | OUTPUT mW | TORQUE Kg.cm | CURRENT mA | ||
D162-002033 | 12.0 | 350 | 50 | 290 | 0.15 | 170 | 450 | 1.0 | 700 |
D162-002050 | 12.0 | 230 | 50 | 180 | 0.24 | 170 | 450 | 1.5 | 700 |
D162-004100 | 12.0 | 110 | 40 | 85 | 0.48 | 120 | 420 | 2.5 | 400 |
D162-015250 | 12.0 | 32 | 40 | 25 | 1.5 | 120 | 380 | 4.0 | 400 |
D162-005100 | 6.0 | 115 | 80 | 90 | 0.5 | 260 | 460 | 2.5 | 900 |
D162-009200 | 6.0 | 60 | 80 | 46 | 0.9 | 290 | 420 | 4.0 | 900 |
D162-018450 | 6.0 | 20 | 60 | 16 | 1.8 | 200 | 300 | 4.0 | 800 |
D162-025750 | 6.0 | 12 | 60 | 10 | 2.5 | 200 | 280 | 4.0 | 800 |
Gear Ratio | |||||
Number of stages | 3 | 4 | 5 | 6 | 7 |
Gear ratio i | 11.1 | 22.2 | 83.3 | 200 | 600 |
16.7 | 33.3 | 100 | 250 | 750 | |
50 | 150 | 300 | 900 | ||
450 | 1350 | ||||
Length of gearbox L (mm) | 12.8 | 14.2 | 15.6 | 17.9 |
16mm DC Geared Motor integrated a 16mm spur gearbox of 1:10 to 1:298 gear ratio. It is a good solution to application that with limited space but low speed and high torque.
Specification | |||||||||
MODEL | VOLTAGE V | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||
SPEED rpm | CURRENT mA | SPEED rpm | TORQUE kg.cm | CURRENT mA | OUTPUT mW | TORQUE Kg.cm | CURRENT mA | ||
D162-002033 | 12.0 | 350 | 50 | 290 | 0.15 | 170 | 450 | 1.0 | 700 |
D162-002050 | 12.0 | 230 | 50 | 180 | 0.24 | 170 | 450 | 1.5 | 700 |
D162-004100 | 12.0 | 110 | 40 | 85 | 0.48 | 120 | 420 | 2.5 | 400 |
D162-015250 | 12.0 | 32 | 40 | 25 | 1.5 | 120 | 380 | 4.0 | 400 |
D162-005100 | 6.0 | 115 | 80 | 90 | 0.5 | 260 | 460 | 2.5 | 900 |
D162-009200 | 6.0 | 60 | 80 | 46 | 0.9 | 290 | 420 | 4.0 | 900 |
D162-018450 | 6.0 | 20 | 60 | 16 | 1.8 | 200 | 300 | 4.0 | 800 |
D162-025750 | 6.0 | 12 | 60 | 10 | 2.5 | 200 | 280 | 4.0 | 800 |
Gear Ratio | |||||
Number of stages | 3 | 4 | 5 | 6 | 7 |
Gear ratio i | 11.1 | 22.2 | 83.3 | 200 | 600 |
16.7 | 33.3 | 100 | 250 | 750 | |
50 | 150 | 300 | 900 | ||
450 | 1350 | ||||
Length of gearbox L (mm) | 12.8 | 14.2 | 15.6 | 17.9 |
Mechanical Dimensions |
Mechanical Dimensions |
Encoder
Clutch
Ratio of Gearbox
Gear Ratio | |||||
Number of stages | 3 | 4 | 5 | 6 | 7 |
Gear ratio i | 11.1 | 22.2 | 83.3 | 200 | 600 |
16.7 | 33.3 | 100 | 250 | 750 | |
| 50 | 150 | 300 | 900 | |
| | | 450 | 1350 | |
Length of gearbox L (mm) | 12.8 | 14.2 | 15.6 | 17.9 |
Motor
Brush Motor, Brushless Motor, Stepper Motor
Shaft
D-cut Shaft, H-cut Sahft, Rround Sahft
Service:
For 12v Geared motor, the parameters such as rpm, voltage, torque, shaft diameter, we can custom.
Encoder
Clutch
Ratio of Gearbox
Gear Ratio | |||||
Number of stages | 3 | 4 | 5 | 6 | 7 |
Gear ratio i | 11.1 | 22.2 | 83.3 | 200 | 600 |
16.7 | 33.3 | 100 | 250 | 750 | |
| 50 | 150 | 300 | 900 | |
| | | 450 | 1350 | |
Length of gearbox L (mm) | 12.8 | 14.2 | 15.6 | 17.9 |
Motor
Brush Motor, Brushless Motor, Stepper Motor
Shaft
D-cut Shaft, H-cut Sahft, Rround Sahft
Service:
For 12v Geared motor, the parameters such as rpm, voltage, torque, shaft diameter, we can custom.
Factory Ability
As a major manufacturer of high-performance DC Gear motor, AC Gear motor, Planetary gear motor, Planetary Gearbox, Gear Wheel, Spur Gearbox. I.CHMOTION is a high-tech enterprise which professionally specialized in R&D and manufacture high precise gear box reducers. We provide total solution to customers including transmission gear box design, gear parts and molding design and manufacturer, parts mass production and assembly.
This is another type of 16mm DC motor with spur gearbox that I.CH supplies and manufactures. Compared with a similar motor, the rated voltage in this product is bigger. If you think this motor is suitable for your application, please contact us.
Concentricity detector Ultrasonic Cleaner Gear Testing Center
Gear Inspection Center Gear Hobber Gear Hobbing
Advantages
1. Many years experience in manufacturing and designing DC motor gearbox;
2. Convenient & Friendly Customer Service;
3. Low Prices Direct From Factory Suppliers;
4. High Product Performance: Low noise, High efficiency, Long lifespan;
5. Small Orders Accepted;
Feature
1, Compact design, 16mm size.
2, High transmission efficiency.
3, Long brush lifetime.
Package
-crate, carton or pallet;
-Shipping method: air shipping, sea shipping or express;
-Delivery time: 20-50 working days.
FAQ
Q: Can you make the Gearbox or Planetary Gearbox with custom specifications?
A: YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience.
Q: Do you provide the samples of DC Geared Motor?
A: YES. Our company can provide the samples to you, and the delivery time is about 5-15days according to the specification of gearbox you need.
Q: What voltage can you supply?
A: 6V, 12V, 24V or we can customized voltage.
Q: Do you have the item in stock?
A: I am sorry we do not have the item in stock, All products are made with orders.
Q: Do you provide technology support?
A: YES. Our company have strong R&D capability, we can provide technology support if you need.
Factory Ability
As a major manufacturer of high-performance DC Gear motor, AC Gear motor, Planetary gear motor, Planetary Gearbox, Gear Wheel, Spur Gearbox. I.CHMOTION is a high-tech enterprise which professionally specialized in R&D and manufacture high precise gear box reducers. We provide total solution to customers including transmission gear box design, gear parts and molding design and manufacturer, parts mass production and assembly.
This is another type of 16mm DC motor with spur gearbox that I.CH supplies and manufactures. Compared with a similar motor, the rated voltage in this product is bigger. If you think this motor is suitable for your application, please contact us.
Concentricity detector Ultrasonic Cleaner Gear Testing Center
Gear Inspection Center Gear Hobber Gear Hobbing
Advantages
1. Many years experience in manufacturing and designing DC motor gearbox;
2. Convenient & Friendly Customer Service;
3. Low Prices Direct From Factory Suppliers;
4. High Product Performance: Low noise, High efficiency, Long lifespan;
5. Small Orders Accepted;
Feature
1, Compact design, 16mm size.
2, High transmission efficiency.
3, Long brush lifetime.
Package
-crate, carton or pallet;
-Shipping method: air shipping, sea shipping or express;
-Delivery time: 20-50 working days.
FAQ
Q: Can you make the Gearbox or Planetary Gearbox with custom specifications?
A: YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience.
Q: Do you provide the samples of DC Geared Motor?
A: YES. Our company can provide the samples to you, and the delivery time is about 5-15days according to the specification of gearbox you need.
Q: What voltage can you supply?
A: 6V, 12V, 24V or we can customized voltage.
Q: Do you have the item in stock?
A: I am sorry we do not have the item in stock, All products are made with orders.
Q: Do you provide technology support?
A: YES. Our company have strong R&D capability, we can provide technology support if you need.
