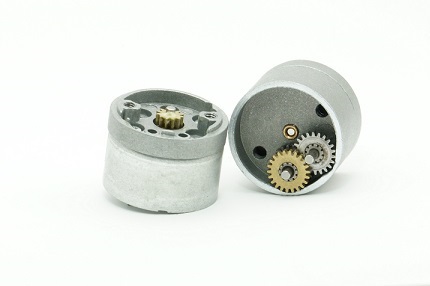

16mm DC Gear Motor

• Manufacturer Part Number: D162A1
• Gearbox Type: Spur Gearbox
• Gear Ratio: 1:11~1:1359
• Motor Speed: 25-200rpm
• Nominal Voltage: 3V, 6V
• Reduced Motor Size: 16mm
• Application: Electronic Lock Motor, Optic Equipment Motor, Micro Mechanism Motor
Availability:
Quantity:
  • D162A1(16mm)

  • I.CH

  Character:


  16mm DC Geared Motor integrated a 16mm spur gearbox of 1:10 to 1:298 gear ratio. It is a good solution to application that with limited space but low speed and high torque.


Specification

MODEL

VOLTAGE
V
NO LOADAT MAXIMUM EFFICIENCYSTALL
SPEED
rpm
CURRENT
mA
SPEED
rpm
TORQUE
kg.cm
CURRENT
mA
OUTPUT
mW
TORQUE
Kg.cm
CURRENT
mA
D162-0031003.07060520.31701600.8450
D162-0010506.0250802000.122502501.0700
D162-0062006.06080450.552502503.0700
D162-0073006.03560250.71801804.0500




Gear Ratio
Number of stages3456

Gear ratio i
11.122.283.3200600
16.733.3100250750
 50150300900
   4501350
Length of gearbox  L (mm)12.814.215.617.9


Mechanical Dimensions
D162A1DWG



Encoder
111
Clutch

Ratio of  Gearbox

Gear Ratio
Number of stages 3 4 5 6

Gear ratio i
11.1 22.2 83.3 200 600
16.7 33.3 100 250 750
  50 150 300 900
      450 1350
Length of gearbox  L (mm) 12.8 14.2 15.6 17.9


Motor
Brush Motor, Brushless Motor, Stepper Motor

Shaft
D-cut Shaft, H-cut Sahft, Rround Sahft

Service:


For 6V DC gear motor, the parameter such as output shaft length, shaft diameter, it can be customized.


Full Datasheet
D162A1.pdf

Factory Ability
As a major manufacturer of high-performance DC motor, DC Brushed Motor, DC Geared Motor, Planetary Geared Motor, Planetary Gearbox, Gear Wheel and so on. Our products are widely used and applied in the following industries: entertainment systems, automobiles, home and industrial appliances and tools. I.CH offers total satisfaction to worldwide customers in office equipment, home appliance, multimedia, power tool, automotive parts, medical instrument, textile industry equipment, industrial automation and toy industries and so on.

In these applications that need to use 16mm DC motor with spur gearbox, I.CH design a motor whose rated voltage is 3V and 6V. Using this product, you can get higher torque at low speed. If you have the interest, please contact us.


1  2  3
        Concentricity detector                                              Ultrasonic Cleaner                                                           Gear Testing Center
4  5  6

 Gear Inspection Center                                                     Gear Hobber                                                                      Gear Hobbing

Advantages

1. Short Lead-Time;
2. Talented team of engineers providing innovative technical solutions;
3. 1 Year Factory Warranty.

Feature:

1, 16mm size design.

2, High cost-effective.

3, Small vibration.


Package
-Packing in safest way;
-Shipping by your requirements;
-Delivery for prototype order is 2-4 weeks, delivery for batch order is around 4 to 8 weeks.

 7  8  9

FAQ
Q: Can you make customized voltage?
A: Yes, we can. Regular voltage for it is 3V or 6V.

Q: What certifications do you have?
A: We currently have CE, ROSH and Reach certifications.

Q: What is application of this 16mm DC Gear motor?
A: It can be used as Electronic Lock Motor, Optic Equipment Motor, Micro Mechanism Motor.

Q: What the biggest torque can you make?
A: It depends on your application, we can make it around 1Kg.cm.
