12mm DC Gear Motor

• Manufacturer Part Number: D122F
• Nominal Voltage: 2.4V
• Gearbox Type: Spur Gearbox
• Gear Ratio:1:10~1:298
• Rated Torque: 0.07-0.4 Kg.cm
• Rated Speed: 35-300rpm
• Diameter: 12mm
• Application: Electronic lock Motor, Optic equipment Motor, Medical Apparatus Motor, Shared Bike Motor, Toys

Quantity:
  • D122F(12mm)
  • I.CH

Description

For the application that requires low rpm and high torque, the N20 motor can not meet these requirements. For the 10rpm to 500rpm application, only using the n20 motor with spur gearbox, the goal can achieve.


 n20 dc gear motor decrease speed by multiple-stage gear, the more stage the gear, the low rpm the motor.


 As a micro gear motor, the gear that we use is metal gear. If you have special needs(quiet at operation), we can use the plastic gear. Of course, the listed datasheet or specifications is just a reference, we can customize according to your needs.



Character

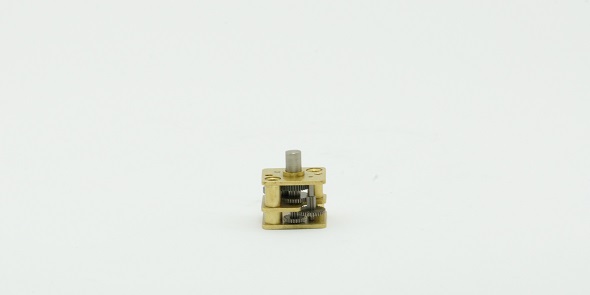

(1) 12mm n20 DC Motor integrated a 12mm spur gearbox of 1:10 to 1:298 gear ratio.

(2) It is a good solution to the application with limited space but low speed and high torque.


Specification


MODEL


VOLTAGE
V

NO LOAD

AT MAXIMUM EFFICIENCY

STALL

SPEED
rpm

CURRENT
mA

SPEED
rpm

TORQUE
kg.cm

CURRENT
mA

OUTPUT
mW

TORQUE
Kg.cm

CURRENT
mA

D122-003210

3.0

35

35

27

0.25

80

70

1.2

250

D122-001100

3.0

110

50

91

0.14

150

130

1.0

650

D122-001050

2.4

300

60

240

0.07

250

170

0.4

1000

D122-004298

3.0

50

60

40

0.4

250

170

2.2

1000




Gear Ratio
Number of stages345
Gear ratio i1050210

100250

150298
Length of gearbox L(mm)9.0






Drawing:


The picture shows the performance and structure of 2.4 geared motor.



Mechanical Dimensions
D122F

  D122F-01&02电机曲线



Encoder
111
Clutch

Ratio of  Gearbox

Gear Ratio
Number of stages 3 4 5
Gear ratio i 10 50 210

100 250

150 298
Length of gearbox L(mm) 9.0


Motor
Brush Motor, Brushless Motor, Stepper Motor

Shaft
D-cut Shaft, H-cut Sahft, Rround Sahft


The Character:


12mm DC Geared Motor integrated a 12mm spur gearbox of 1:10 to 1:298 gear ratio. It is a good solution to application that with limited space but low speed and high torque.



Full Datasheet
D122F.pdf

Ability:


The 12mm DC gear motor is the smallest size that I.CH can supply and manufacture. For the application that requires low rpm and high torque, this is a preferred choice. In years of service, this product whose rated voltage is 2.4V and 3V is very suitable in the application of electric lock.


QQ截图20200415161045


Advantage:


1, Compact design.


2, Low speed.


3, High transmission efficiency.


Service:


1, Provide many solutions to make you control the budget.


2, Provide technical support.


Package:


1, Carton or pallet.


FAQ:


1, What is the rated voltage of 12mm motor with spur gearbox?


2.4V and 3V.


2, Where I can see the performance curve of torque, rpm?


You can see these parameters in the PDF.
