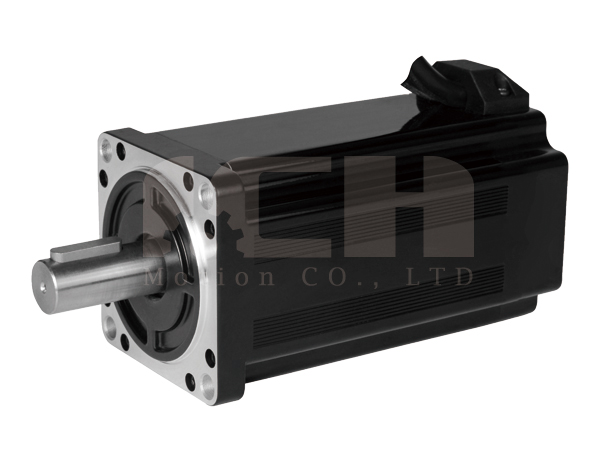

Working Principle of Hybrid Stepper Motors

Hybrid stepper motors are a type of electric motor widely used in various applications, from 3D printers and CNC machines to robotics and automation systems. Their unique design combines the features of both permanent - magnet and variable - reluctance stepper motors, offering high torque, precision, and efficiency. This article delves into the working principle of hybrid stepper motors.

Basic Magnetic Principle

The operation of a hybrid stepper motor is based on the principles of magnetism. When an electric current is passed through the coils in the stator, a magnetic field is generated. The permanent magnet in the rotor interacts with this magnetic field. The basic idea is that the rotor will tend to align itself with the magnetic field produced by the stator coils to minimize the magnetic reluctance.

Structure and Components

A hybrid stepper motor consists of several key components. The stator, which is the stationary part of the motor, has multiple teeth and coils. These coils are typically wound in a specific pattern and are energized by an external power source and drive electronics. The rotor, the rotating part, contains a permanent magnet along its axis and has teeth on its outer surface. The teeth on the rotor and stator are designed to interact in a way that enables precise rotational control.

Working Process

1. Initial State：In the starting position, the rotor teeth are aligned with a particular set of stator teeth. For example, let's assume that the motor has a 1.8 - degree step angle. This means that for a full 360 - degree rotation, the motor has 200 steps (360/1.8 = 200).

2. First Step：When the drive electronics send a pulse to the first set of stator coils, a magnetic field is created. The magnetic field attracts the rotor teeth towards the energized stator teeth. The rotor moves a fraction of a revolution, in this case, 1.8 degrees, to align with the new magnetic field. This is the first step of the motor's rotation.

3. Subsequent Steps：To continue the rotation, the drive electronics sequentially energize different sets of stator coils. As each new set of coils is energized, the magnetic field pattern changes, and the rotor is pulled to the next position. For instance, if the motor is rotating clockwise, after the first set of coils is de - energized and the second set is energized, the rotor moves another 1.8 degrees to align with the new magnetic field created by the second - set coils.

The sequence of energizing the coils is carefully controlled. There are different commutation methods, such as full - step and half - step operation. In full - step operation, the motor moves in discrete, full - step increments. In half - step operation, the motor can move in smaller increments by energizing combinations of coils in a different sequence. For example, in half - step operation, the motor may move first to a position halfway between two full - step positions, resulting in a step angle of 0.9 degrees.

4. Direction Control : The direction of rotation of the hybrid stepper motor can be easily controlled by changing the sequence of coil energization. If the coils are energized in one order, the motor rotates in a clockwise direction. Reversing this order will make the motor rotate counter - clockwise.

Holding Torque and Accuracy

One of the advantages of hybrid stepper motor is their ability to hold a position. When the coils are energized but no further steps are being commanded, the magnetic field holds the rotor in place. This holding torque ensures that the motor can maintain its position accurately, even in the presence of small external forces. The precision of the motor is also enhanced by the fact that the step angle is very small and consistent, allowing for accurate positioning in applications that require high - precision motion control.

The working principle of hybrid stepper motors is based on the interaction between the magnetic fields generated by the stator coils and the permanent magnet in the rotor. Through precise control of the coil energization sequence by the drive electronics, these motors can achieve highly accurate and controlled rotational motion, making them an essential component in many modern - day technological applications.
