DC planetary gear motor is an integrated power unit combining a DC motor and precision planetary gearbox. It converts the motor’s high-speed low-torque rotation into low-speed, high-torque stable output, widely adopted in miniature automation, smart home, medical devices and light industrial equipment. This guide from I.CH Motion breaks down its structure, operating logic, core strengths, application scenarios and full customization support, helping designers and purchasers select the right compact drive solution.

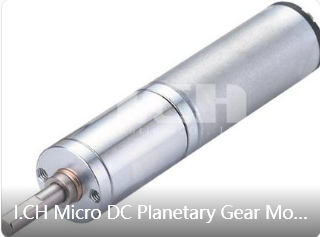

I.CH Micro DC Planetary Gear Motor
A DC planetary gear motor integrates two core modules: DC drive section and planetary reduction section. Its planetary transmission layout features a central sun gear, multiple planet gears and fixed inner ring gear, which evenly shares load during operation. Different from ordinary spur gear motors with parallel offset shafts, the coaxial compact design greatly boosts power density within limited volume.
I.CH Motion develops a full series of miniature DC planetary gear motors, covering multiple standard outer diameters for mass selection. All core components adopt alloy steel with carburizing quenching and precision grinding, realizing smooth transmission and long service life. The biggest highlight of our product line lies in flexible one-stop customization to match unique mechanical design demands.
The whole motor is divided into three functional segments: input motor part, planetary reduction core part and output shaft part.
1. Input section: DC motor rotor connects directly with the central sun gear, providing high-speed initial power;
2. Reduction section: Core planetary assembly including sun gear, planet gears and inner ring gear, the core part to slow speed and amplify torque;
3. Output section: Planet carrier linked with output shaft, delivering amplified torque to target equipment.

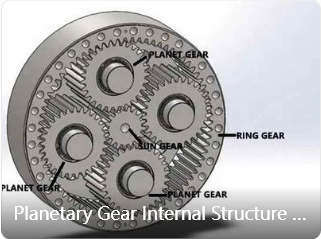

Planetary Gear Internal Structure Diagram
The DC motor drives the central sun gear to rotate at high speed. Multiple planet gears mesh with both sun gear and stationary inner ring gear, forcing planet gears to revolve around the sun while spinning on their own axes. The planet carrier holding all planet gears rotates at much lower speed, and this carrier acts as the output terminal to transmit multiplied torque.
Multi-point meshing disperses pressure evenly, avoiding stress concentration on single gear teeth. Single-stage or multi-stage planetary stacks are optional to reach different reduction ranges, adapting to diverse low-speed drive requirements.
The concentric cylindrical structure cuts overall size by nearly half versus parallel spur gear motors with equal torque output. It fits tightly inside small equipment housings such as smart locks and portable medical instruments without occupying extra installation space.
Multi-tooth simultaneous meshing reduces friction loss, single-stage transmission efficiency stays above 90. Continuous long-hour operation generates little heat, lowering energy consumption for battery-powered devices.
All gear teeth undergo precise grinding and profile modification, vibration offset via multi-point contact. Running noise is controlled at a low level, suitable for silent scenarios like laboratory automation and household intelligent hardware.
Torque load evenly distributed on several planet gears, greatly improving impact resistance and service life under frequent start-stop and forward-reverse switching cycles.
Unlike standardized gear motors with fixed specs, we offer comprehensive personalized modification without strict minimum order limits:
· Custom output shaft shape, length and mounting flange size;
· Adjustable reduction stages and transmission ratios to match target speed & torque;
· Optional brushed / brushless motor bodies, encoder feedback modules;
· Custom wiring harness, connector types and surface treatment;
· Special IP sealing, low-temperature or anti-corrosion structures for extreme working environments.
Our engineering team provides tailored drawing solutions and rapid prototype verification for all custom projects.
Thanks to mini size and adjustable performance, I.CH DC planetary gear motors serve abundant lightweight precision equipment:
· Smart home: Electronic door locks, electric curtains, smart toilet actuators, lifting storage cabinets;
· Medical devices: Mini adjustment mechanisms, portable testing instruments;
· Office automation: Paper sorting equipment, small lifting platforms;
· Micro robotics & AGV small wheel drive units;
· Financial equipment: Bill sorting and transmission mechanisms;
· Light industrial automated fixtures and small conveyor modules.
Before confirming a gear motor model, sort out your core demand parameters first, and our team will recommend or customize matching products:
1. Required output torque and steady operating speed;
2. Rated supply voltage of the whole device;
3. Daily working cycle and start-up frequency;
4. Space limitation of installation cavity;
5. Special demands like silent operation, waterproof or position feedback.
We deliver one-stop consultation: standard model matching first, and full custom redesign if standard products cannot meet your mechanical structure.
1. Can DC planetary gear motors replace spur gear motors for precision positioning equipment?
Yes. Planetary structure brings far lower backlash and higher repeat positioning accuracy, while spur gear motors suffer larger clearance and cannot support precise motion control.
2. Is custom service available for small-batch prototype orders?
Absolutely. I.CH accepts small trial batches for customized gear motors, supporting fast sample delivery for product R&D verification.
3. Do your gear motors need regular maintenance?
Our planetary assemblies adopt lifetime lubricating grease under sealed housing. No frequent oil refilling is required for normal indoor operation.
