Precision and long-term operational reliability of miniature transmission systems heavily rely on professional heat treatment technology, especially for tiny module 0.3 planetary gear and planetary gear motor components used in high-end precision industries. Traditional heat treatment processes often struggle to balance dimensional accuracy, structural strength and operational stability for ultra-small module gears. As a professional custom precision gear manufacturer, I.CH Motion deeply understands the technical pain points of micro gear processing and thermal treatment, and provides targeted, project-verified nitriding heat treatment solutions for global OEM customers to solve gear distortion, tooth fracture and surface failure problems.

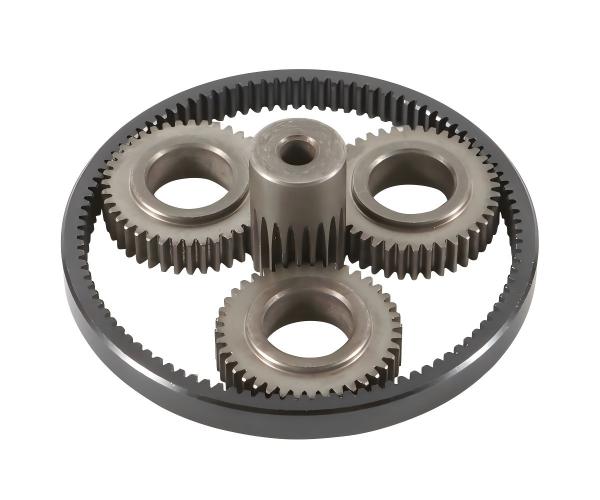

Why Heat Treatment Dominates Small Module Gear Service Life & Stability?
Heat treatment specification is the core decisive factor that determines the final service life, long term dimensional stability, mechanical strength and failure resistance of custom planetary gear components. For ultra precision small module planetary gears (module 0.3) widely used in high end precision equipment, professional engineers always face a critical technical trade off between traditional carburizing process and high precision low distortion nitriding process. I.CH Motion’s professional gear metallurgy and thermal treatment team has accumulated rich practical experience in small module gear processing and precision optimization. Our technical team often conducts in depth professional technical communication and solution discussion with overseas OEM customers on process selection and parameter matching during the planetary gear RFQ confirmation phase. In one recent in depth cooperative project with a North American high precision equipment manufacturer, both parties jointly evaluated the complex case crushing risk under high Hertzian contact stress, verified the rationality of material matching and thermal treatment parameters, and finally finalized the optimal nitriding production specification suitable for long term stable operation of miniature small module planetary gear motor.
Module 0.3 Gear Process Trade-off: Carburizing vs Low-Distortion Nitriding
Validated Nitriding Parameter Set for Ultra-Precision Planetary Gears
Worked Example: Project Validated Nitriding Parameter Set (Module 0.3) Nitriding delivers thin, hard surface case with minimal part distortion after hobbing or skiving. In this real world OEM project, agreed nitriding specification reads: surface hardness HV 550 650, effective case depth 0.1 0.15 mm, core hardness maintained HRC 28 32 (40Cr quenched and tempered).
Core Hardness Mechanism: Avoid Case Crushing Under High Hertzian Stress
Core hardness is critical against case crushing failure. Under rated torque, sun planet mesh delivers 780 MPa Hertzian contact stress; peak transient load reaches 1190 MPa. If core material is too soft, hard nitrided surface layer will crush and collapse under heavy contact pressure. Quenched and tempered 40Cr substrate HRC 28 32 supplies enough substrate support for 0.10 0.15 mm nitrided case. Calculation shows subsurface shear peak locates roughly 8 µm below tooth surface, fully sitting within nitrided hardened layer. This practical calculation helped both sides lock parameters that matched the hardware’s real world peak overload operating envelope.
Critical Defects of Carburizing for Micro Module 0.3 Gear Teeth
Carburizing is widely adopted for large size power gears, yet brings obvious drawbacks for micro module teeth. Tooth wall thickness is extremely thin at module 0.3. Carburizing creates deep hardened case; case depth may penetrate full tooth cross section after quenching, resulting in brittle teeth and high tooth fracture risk. Besides, quenching after carburizing introduces big thermal distortion. For high precision planetary gear set, post carburizing distortion will break pre machined tooth profile and degrade meshing performance. That is why our engineering team suggests nitriding as preferred mass production route for miniature planetary gears. Carburizing performs well on thick tooth industrial gears, yet that advantage disappears for ultra thin module 0.3 tooth geometry.
Heat Treatment Risks for Compact Precision Drive Applications
High Hertzian contact stress together with limited installation envelope is common for micro drive used in wearable robot joints, portable medical actuators and precision optical equipment. Such devices demand long service life from very small gear footprint. Wrong heat treatment selection will cause premature surface spalling or tooth fracture in final end equipment, even if raw material and drawing dimensions look correct. That is why heat treatment specification negotiation occupies an important part during planetary gear RFQ phase for these high precision compact applications. Field repair access is very limited for these compact OEM assemblies, making correct pre production thermal specification especially vital.
Clear Boundary: Prototype VS Mass Production Heat Treatment Strategy
We need to clarify boundary: nitriding proposal applies for mass production stage. For initial prototype sample batch, customer requested keeping drawing specified material: 40Cr quenched and tempered HRC 28 32 without nitriding. These prototype gears are used for side by side evaluation against second supplier, so material & heat treatment baseline must stay identical across two vendors. Sample phase and mass production phase may adopt different heat treatment routes, and custom gear manufacturer should remind OEM customers of performance gap. Bench test prototype parts offer comparison data but cannot duplicate the wear resistance of nitrided mass production
planetary gear motor hardware.
Gear Material & Bearing Raceway Optimization via DFM Engineering
Material selection also interacts with heat treatment. Planet gear bore acts as needle roller raceway. Original concept considered full GCr15 planet gear; I.CH Motion DFM team proposed inserting GCr15 bushing inside planet bore instead. Bushing solution achieves required raceway hardness Ra 0.25 max while simplifying planet gear body heat treatment and machining complexity. Customers can compare both options during RFQ quotation stage.
ISO Grade 8 Precision Control: Heat Treatment Tolerance Standard
Many purchasing engineers overlook tolerance measuring timing. ISO Grade 8 gear accuracy must inspect after heat treatment. Nitriding creates minimal dimensional shift so it is feasible to hold Grade 8 stably. Carburizing quenching brings larger distortion and makes post heat treatment Grade 8 much more expensive. Multiple vendors quote ISO 8 measured before thermal processing; this rating loses validity once heat treatment completes.
FAQ About Module 0.3 Miniature Planetary Gear Heat Treatment
Frequently Asked Questions On Miniature Planetary Gear Heat Treatment Q: Why is carburizing not recommended for module 0.3 planetary gears? A: Module 0.3 gear teeth have very thin cross sections. Carburizing quenching produces deep hard layers that may penetrate the whole tooth, raising fracture risk, alongside heavy thermal distortion which ruins pre machined tooth geometry.
Q: What failure risk comes with insufficient core hardness for nitrided small module gears? A: Low core hardness removes mechanical backing for the thin hard nitrided surface, triggering case crushing failure under high Hertzian contact stress at sun planet meshing interfaces.
I.CH Motion Custom Gear Heat Treatment & RFQ Technical Service
Key Takeaways For Planetary Gear RFQ Heat Treatment Negotiation As a professional Nanjing based manufacturer focusing on R&D and production of custom small module precision planetary gears, I.CH Motion provides transparent, professional and targeted heat treatment consultation for all your planetary gear RFQ demands. Our professional engineers comprehensively analyze multiple core operating indicators including equipment actual contact stress data, peak overload working conditions, gear module size and tooth structure thickness, and customer’s different production stages including sample trial production and formal mass production, so as to propose the most balanced material and heat treatment matching solution tailored for customer’s end equipment working scenarios. We provide independent and detailed formal quotations for prototype baseline specifications and optimized mass production configurations to meet customers’ different product verification and batch mass production needs. Our cooperative customers cover low volume 5 set prototype trial production and annual mass volume orders of planetary gear sets, which are widely applied in high precision medical devices, intelligent robotic systems and high end optical precision instruments. You can send your STEP files, 2D engineering drawings and customized performance parameter requirements to our professional technical team at any time for free professional DFM review and accurate formal quotation.
