Automation equipment designers constantly seek compact, safe and accurate drive solutions for battery-powered mobile machinery, laboratory instruments and small automated stations. Low‑voltage servo motors have become a preferred motion control component to address these demands, balancing closed-loop positioning precision, compact size and low-voltage operational safety. The following content systematically elaborates their characteristics, usage specifications, application scope, selection standards and operation guidelines.
01
Low voltage servo motors stand as critical actuators across modern automation, robotics and smart equipment systems, converting low voltage electrical signals into accurate angular displacement and controllable shaft velocity with rapid dynamic response. This low voltage servo motor series delivers stable torque speed performance under safe DC working voltage, solving long standing pain points for engineers including bulky installation, complex power transformation, unstable positioning and high voltage safety risks in battery powered devices. This section breaks down core characteristics of industrial low voltage servo motors, supporting you to make well informed component decisions for your next generation equipment upgrade.

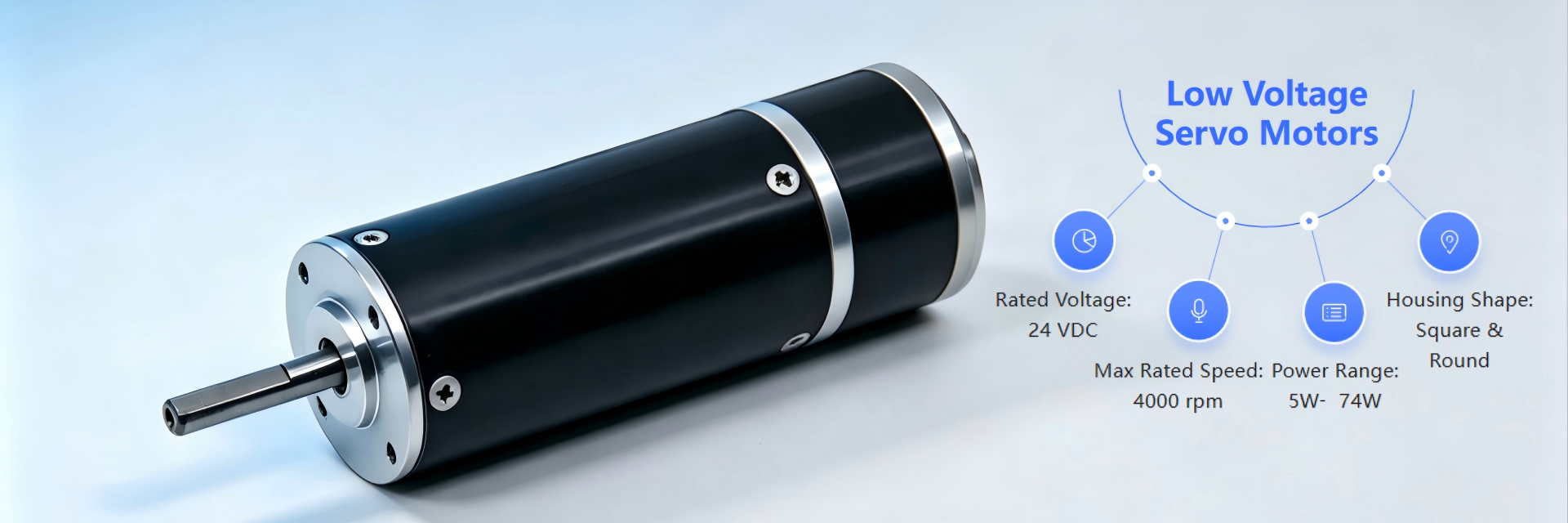

Different from standard hobby servos limited to 4.8 6.0 V DC or high voltage HV servos targeting RC heavy load projects, industrial low voltage servo motors are engineered for light duty compact automation, covering typical rated voltage options such as 12 VDC and 24 VDC, perfectly matching battery power supplies, switching power modules and on board logic circuits of mobile equipment. The product lineup includes square NEMA frame servos and compact round body servo variants, covering power output from several watts up to dozens of watts, with rated speed ranging from hundreds to 4000 RPM and adjustable continuous torque to satisfy diversified load requirements.
High linearity between control signal and mechanical output forms the biggest advantage of this series. When the input control signal equals zero voltage, the motor maintains static holding status firmly; output speed decreases uniformly as load torque rises, avoiding unexpected jitter or position drifting frequently observed in low cost micro actuators. Integrated high resolution encoders implement closed loop feedback, monitoring real time shaft position and speed and feeding data back to upper level controllers. This closed loop architecture greatly reduces position error caused by load fluctuation or voltage fluctuation, which is a critical distinction from open loop stepper motor solutions. Many field cases indicate that open loop stepper motors risk step loss under sudden load impact; low voltage servos compensate deviations dynamically via feedback loops and keep motion trajectories consistent during long cycle repetitive tasks.
Compact electromechanical time constants guarantee fast response. Compared with traditional AC servo systems requiring high voltage power cabinets, these DC low voltage servos remove heavy power conversion hardware. The whole unit maintains small outline dimensions, enabling integration inside narrow mechanical structures such as robotic joint housings and portable laboratory instruments. Selected high grade internal winding materials enhance thermal stability, restraining temperature rise even under continuous partial overload, extending service life in non stop operation conditions. Meanwhile, multiple models support customized shaft dimensions, wiring definition and interface options to fit non standard mechanical assembly demands from OEM customers.
Voltage setting directly determines servo performance and hardware lifespan, just as it does for general servo devices. Industrial low voltage servos are optimized for designated low voltage DC working windows, and deviation beyond allowable tolerance will trigger predictable real world failures.
When operating voltage falls below the minimum rated threshold: available torque drops sharply. The output shaft may twitch, fail to reach target positions or lose holding torque under loaded conditions. In practical engineering projects, this failure often occurs when engineers power multiple actuators from one shared power source; momentary current draw during motor startup pulls bus voltage down below specification limits. Many users misjudge this phenomenon as encoder or controller faults, while root cause actually lies in insufficient power supply capacity rather than motor hardware defects.
When supplied voltage exceeds maximum rated value: internal drive IC and motor windings suffer accelerated heat accumulation. Permanent burnout may occur within short running time. Unlike hobby grade servos which sometimes tolerate short term over voltage, industrial low voltage servo electronics are calibrated strictly for nominal low voltage ranges; over voltage will damage encoder modules and internal circuits, and such damage is not covered under standard product warranty.
Best practice power configuration: always refer to official datasheets for exact operating voltage range for each specific motor model. For 24 V series servos, use well regulated 24 VDC power sources instead of unregulated battery packs without voltage stabilization. Install sufficient capacity bulk capacitors across motor power terminals to suppress voltage dips during peak current startup events, preventing unexpected resets of microcontroller or host control boards. Always establish common ground connections between servo power supply and signal controller; missing ground reference will result in erratic motion behaviors easily misdiagnosed as parameter or hardware faults.
Benefiting from safe low‑voltage input, compact form factor and closed‑loop precision control, low‑voltage servo motors are widely deployed across multiple industry verticals.
Mobile automated equipment including AGVs and AMRs: 24 V low voltage servos adapt seamlessly to lithium battery power systems of automated guided vehicles. High dynamic response supports rapid acceleration deceleration and precise positioning during material transportation inside warehouses and workshops, eliminating safety hazards introduced by high voltage AC power onboard moving platforms.

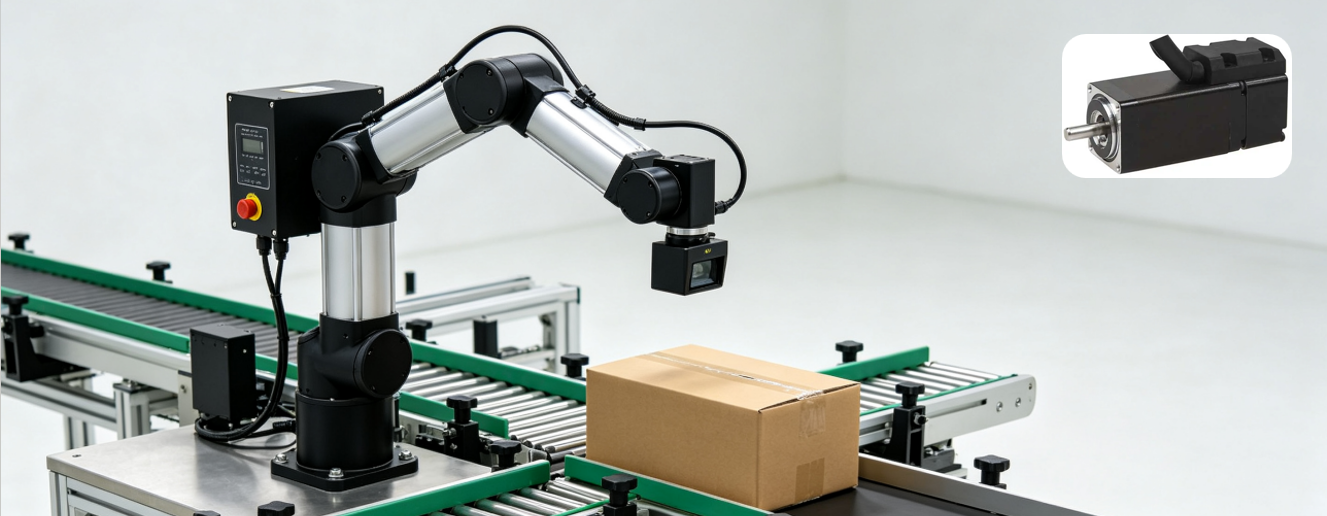

Small sized robotic arms and educational robot joints: Compact frame servo units save installation space for multi joint robot structures. Reliable holding torque stabilizes end effector posture during gripping and handling tasks for laboratory automation and STEM education platforms.
Medical and laboratory automation instruments: Low electrical noise and precise motion control satisfy strict requirements of diagnostic devices, sample handling mechanisms and lab testing equipment. CE and RoHS compliant component design helps OEMs simplify medical grade product certification procedures.
Packaging machinery and small automated production stations: In compact assembly lines, low voltage servos drive sorting mechanisms, small conveyor actuators and labeling heads. Battery compatible DC architecture is suitable for portable field deployed automated devices without mains AC power access.
Surveillance PTZ and smart monitoring equipment: Round body low voltage servo variants deliver smooth pan tilt rotation with low vibration, ideal for outdoor monitoring devices powered by DC power or solar battery combinations.
Besides finished product deployment, low voltage servo motors are also selected by R&D teams for prototype validation and proof of concept projects. Compared with expensive large frame industrial AC servos, low voltage DC servo solutions cut overall system cost while retaining closed loop control capability, accelerating iteration cycles for new equipment development.
Many project failures originate from improper servo selection rather than product quality defects. Follow these structured steps to match suitable motor specifications for your application.
First, confirm power supply conditions. Clarify available bus voltage: 12 VDC or 24 VDC, whether power comes from battery or regulated power supply, and voltage fluctuation range under peak load conditions. Never select a servo only according to static nominal voltage; reserve margin for voltage drop under dynamic load.
Second, calculate actual torque requirement. Take both continuous working torque and peak instant torque during acceleration or impact load into consideration. Leave 30% 50% torque safety margin instead of running motor near absolute maximum torque rating for long duration work.
Third, define target rotating speed. Confirm rated speed under real load condition, not merely no load speed index from datasheet. If target output speed is low, match appropriate planetary gearbox to amplify torque and reduce output speed; precision low backlash gearbox accessories are available for low speed high torque scenarios.
Fourth, select feedback and control interface. Determine whether you need incremental encoder feedback, and confirm communication methods: pulse direction signal, RS485 / Modbus bus control for multi motor networking. Bus controlled servos simplify wiring when multiple axes work simultaneously.
When exact parameter matching remains unclear, start prototype testing with general purpose mature models first. Conduct real load testing instead of only evaluating performance under no load status. Measure actual voltage at servo terminals during full load operation with multimeter to verify power supply stability.
To summarize, low voltage servo motors provide a balanced motion control solution featuring safe DC low voltage input, closed loop high precision feedback, compact mechanical dimensions and flexible customization capability. Distinct from hobby grade small servos and bulky high voltage AC servos, this product series fills the market gap for compact battery friendly industrial grade actuation components. Always verify datasheet specifications before power on, guarantee power supply quality, reserve sufficient torque and voltage safety margin, and conduct real load validation. Straying outside recommended operating parameters – even within a small deviation – will cause poor positioning performance, overheating, or permanent hardware failure. By following these principles, you can obtain stable long term operation and reduce unexpected field failures for automation devices, robotic systems and special purpose equipment. For further technical consultation, parameter comparison or customized solution evaluation, reach out to engineering support team for project oriented assistance.
