Custom Modified Spur Gearbox for European OEM Motor Assembly Matching

Small-modulus spur gearboxes are essential core transmission components widely adopted in precision industrial automation, compact drive systems, and European OEM complete equipment assembly. In cross-border mechanical supporting cooperation, many European manufacturing enterprises retain complete motor bodies and standard mounting accessories in stock, yet lack compatible gearbox units to complete integrated assembly. This article focuses on a real technical cooperation case with an Italian manufacturing enterprise, illustrating the standardized customization process of modified spur gearboxes for existing motor matching, covering structural adaptation, accessory matching, engineering document delivery, sample verification and mass production docking. This practical cooperation model provides a mature reference for Chinese precision transmission component suppliers serving European industrial clients.

European motor and equipment manufacturers usually adopt a mature verification mechanism for new supporting parts. Instead of directly launching large-scale bulk orders, they prioritize sample testing and mechanical compatibility confirmation to avoid assembly mismatch and mass production losses. In this project, the client maintained complete motor and flange accessories in warehouse inventory, and only required customized gearbox products and supporting standard fasteners to realize finished product assembly. The whole cooperation process follows standardized international procurement procedures, including technical solution confirmation, drawing iteration, supplier information registration, sample order arrangement and formal production preparation, fully conforming to the operation habits of European industrial procurement systems.

Practical Application Scenarios and Core Requirements

The client is a professional Italian equipment manufacturing and trading enterprise, mainly engaged in the assembly and supporting sales of industrial motor drive units. Its core business scenario is to match self-developed and stocked standard motors with customized reduction gearboxes to form complete low-speed and high-torque drive assemblies for downstream industrial automation equipment. Since the existing motor and flange structures have been finalized and put into inventory, all customized gearbox modifications must be based on the client’s existing hardware parameters without changing the client’s original assembly structure and tooling system.

• Structural compatibility: The customized gearbox needs to perfectly match the client’s existing motor threaded holes and reserved mounting flange structure, realizing plug-and-play assembly

• Parameter adaptability: Optimize the internal gear group structure to meet the stable low-speed high-torque output required by the client’s end equipment

• Non-standard accessory matching: Equip with special-specification threaded fasteners that match the client’s assembly standards to ensure assembly tightness and structural stability

• Sample verification mechanism: Provide small-batch prototype samples for the client’s internal technical testing and compatibility verification

• Scalable production: Support flexible switching from small-batch sample production to large-scale mass production to meet the client’s phased order demand

• Standardized technical documents: Provide complete 2D engineering drawings and 3D model files to support the client’s internal system filing and technical review

Different from universal standard gearboxes sold in the market, this customized project involves targeted structural optimization and accessory adaptation. Universal gearboxes have fixed flange hole positions, internal gear structures and supporting fastener specifications, which cannot be directly compatible with the client’s personalized assembly standards. Therefore, multiple rounds of technical docking and structural adjustment are required to realize targeted customization and meet personalized industrial assembly needs.

Technical Customization Scheme and Docking Details

Based on the client’s actual assembly conditions and technical standards, the engineering team completed multi-round technical confirmation and scheme optimization. The core customized technical items and matching solutions are sorted out in the table below, covering structural adjustment, parameter selection, accessory supporting and document delivery.

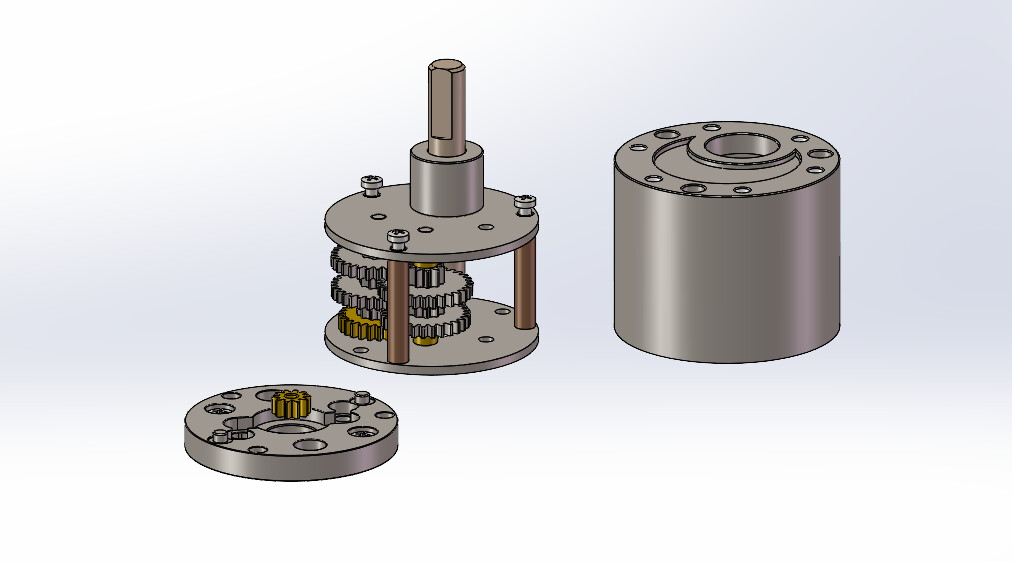

Flange mounting compatibility is the core link of the whole customization project. The client’s existing flange has fixed hole diameter and assembly benchmarks, while the conventional gearbox flange structure cannot be directly matched. The engineering team completes precise size measurement and structural analysis based on the client’s provided flange drawings, and performs targeted finishing and reaming treatment on the basis of the original standard structure to meet the client’s assembly precision requirements. This personalized processing effectively solves the assembly deviation problem caused by structural differences between standard parts and client customized parts.

In terms of fastener matching, the special threaded screws required by the client belong to non-standard industrial accessories, which are not conventional supporting parts of universal gearboxes. The team abandoned the alternative scheme of standard fasteners after evaluation, and completed customized procurement and matching of special screws to ensure zero mismatch with the client’s existing assembly tooling and equipment, avoiding assembly gaps and structural looseness caused by accessory replacement.

In the sample production stage, all core structural parts and end covers cannot be supplied by existing stock parts and need independent precision machining. The whole sample production cycle follows strict industrial production standards, and the production date of finished products is marked according to the actual completion time to ensure the traceability of product quality. Meanwhile, the two parties confirmed the unified marking standard of gearbox nameplates to meet the client’s internal product management and after-sales traceability system requirements.

Standardized Cross-border Procurement and Cooperation Process

High-quality customized mechanical supporting cooperation relies on standardized cross-border business processes. This Sino-European gearbox customization project follows the whole process specifications of European industrial procurement, including supplier qualification registration, technical scheme confirmation, proforma invoice issuance, payment docking, sample address confirmation and production arrangement.

Before formal order cooperation, European industrial enterprises need to complete the filing and registration of new suppliers in the internal management system. The client required complete enterprise qualification information and unified social credit code to complete supplier entry, which is a necessary link for formal long-term cooperative procurement of European industrial parts. After completing qualification verification, the two parties carried out multi-round docking on batch production specifications and sample order standards, forming a standardized cooperative docking mechanism.

In terms of payment terms, combined with the client’s international trade habits, the two parties reached a consensus on phased payment, which balances the procurement risk of European buyers and the production risk of Chinese manufacturers, and is highly in line with the current mainstream cooperation mode of cross-border mechanical customization. After the client completed the payment process and provided the payment voucher, the factory officially launched the sample production preparation work, and confirmed the accurate receiving address and contact information of the sample goods to ensure the smooth progress of subsequent delivery and testing work.
